Acson AMSD-A Series User Manual

MODEL : AMSD / A4MSD 1010 / 1015 / 1515 A/AR

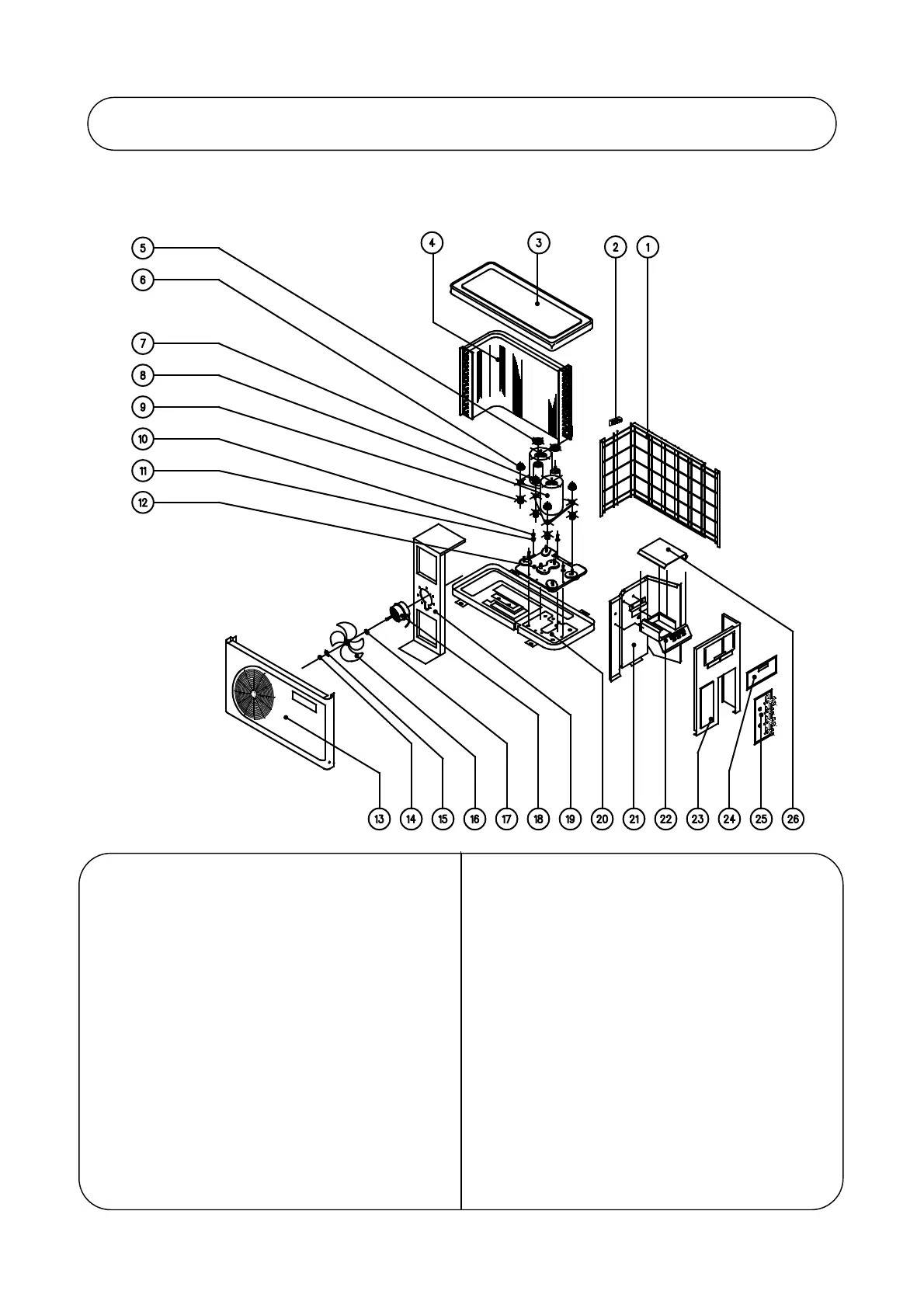

14. PART LIST
1. BACK PANEL
15. SQUARE WASHER
2. HANDLING HANDLE
16. FAN BLADE
3. TOP PANEL
17. RING WASHER
4. CONDENSER COIL ASSEMBLY
18. FAN MOTOR
5. COMPRESSOR NUT M8
19. FAN MOTOR BRACKET
6. FLAT WASHER
20. BASE PAN ASSEMBLY
7. ROTARY COMPRESSOR 2
21. PARTITION ASSEMBLY
8. ROTARY COMPRESSOR 1
22. TERMINAL BOX PANEL WIRING ASSEMBLY
9. RUBBER GROMMET
23. SIDE PANEL
10. TRUSS HEAD PHILIP SCREW
24. ACCESS PANEL
11. SPRING WASHER
25. FLARE VALVE MOUNTING PLATE ASSEMBLY
12. MOUNTING PLATE ASSEMBLY
26. TERMINAL BOX COVER
13. FRONT PANEL
14. HEX NUT 3/8”
