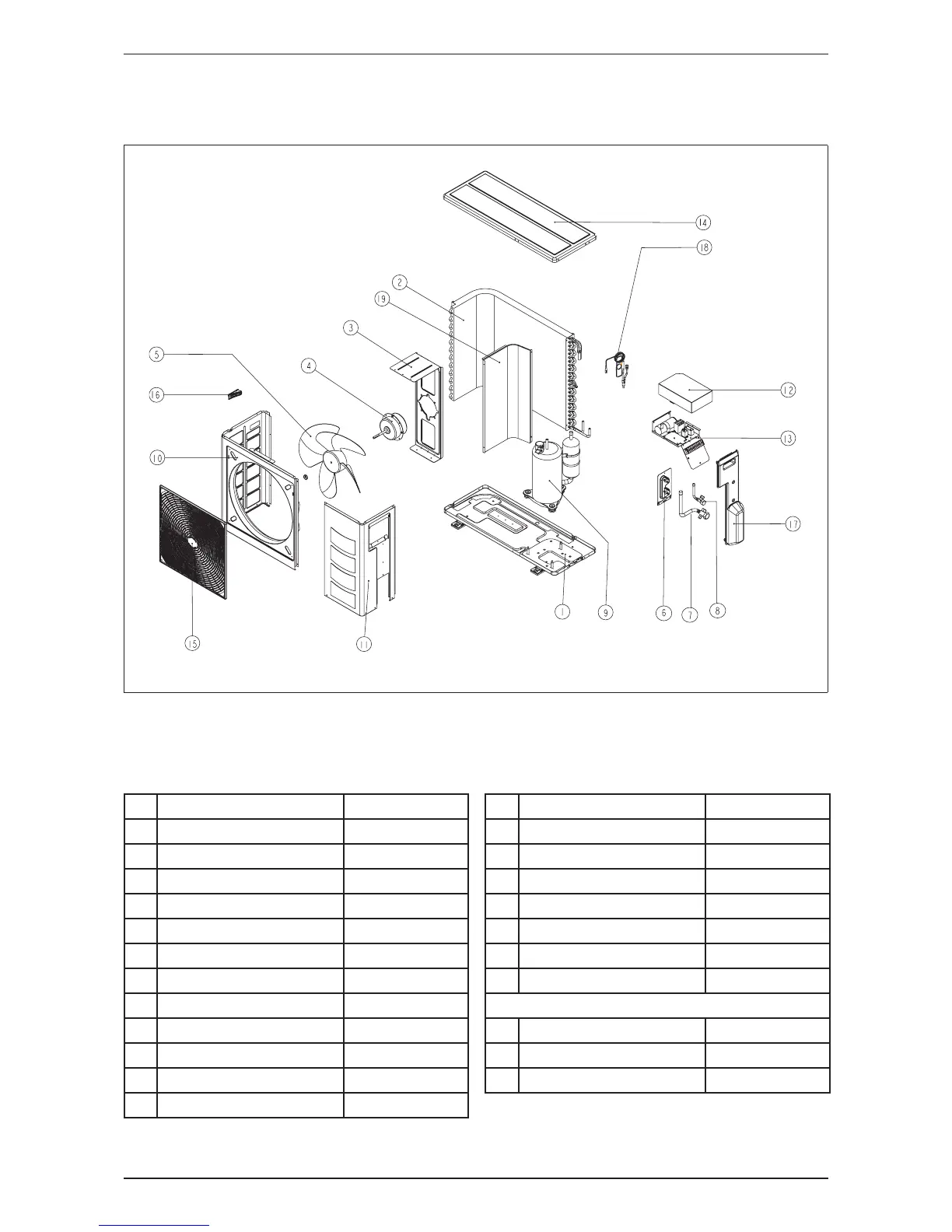

AWM-G-2009 Exploded View and Part List
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
OUTDOOR UNIT
MODEL: A5LC 20C/CR
OUTDOOR UNIT
MODEL: A5LC 20C
No Description Part Number
1 Assy. Base Pan R50014078281
2 Assy. Outdoor Coil R50024079078
3 Bracket, Fan Motor R01014070601
4 Fan Motor R03039024539
5 Fan Propeller R03019023393
6 Assy. Valve Bracket R50014078280
7 Assy. 3 Ways Valve 1/2” R50059030471
8 Assy. 2 Ways Valve 1/4” R50059030628
9 Compressor R04019020625
10 Front Panel, Left R01014070597Y
11 Service Panel R01014070598
12 Terminal Cover Panel R01014070838
No Description Part Number
13 Assy. Control Panel R50044086076
14 Top Panel R01014070596Y
15 Assy. Front Grille R50124093631
16 Plastic Handle R12014057948
17 Assy. Valve Cover R50124072885
18 Assy. Cap Tube R50024081921
19 Partition R01014070603
Parts Not in Diagram
Capacitor, Fan Motor R04029026759
Phase Protector R04089018834
Back Panel, Right R01014070599
