32
• Remove burr with the burr remover. Hold the flaring end down to prevent burrs from dropping inside pipe.

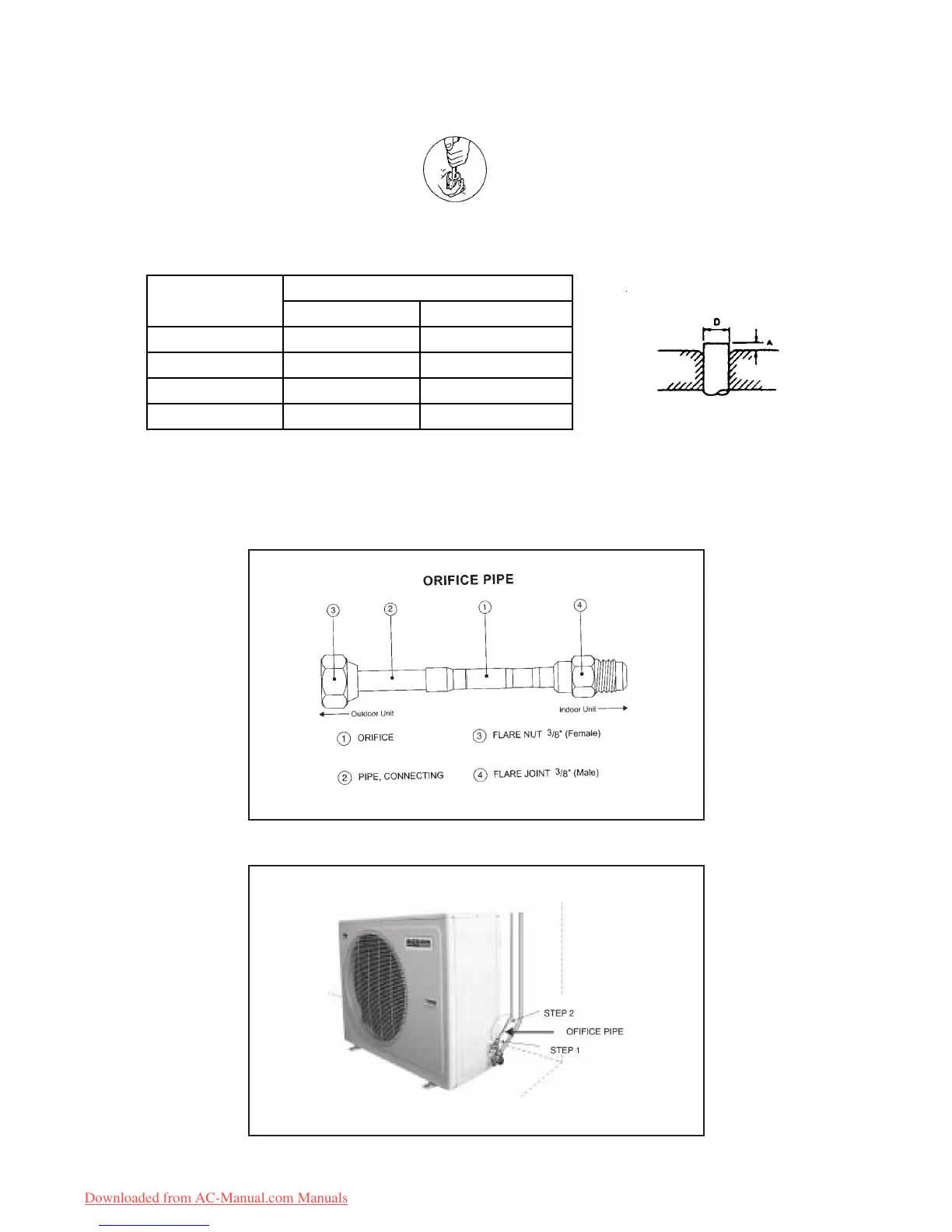

• The exact length of pipe protruding from the face of the flare die is determined by the flaring tool. The table shows
the use of an imperial die and riged die.
IMPERIAL DIE RIGED DIE
6.35 (1/4”) 1.3 0.7
9.52 (3/8”) 1.6 1
12.7 (1/2”) 1.9 1.3
15.88 (5/8”) 2.2 1.7
A(mm)
PIPE ∅, D (mm)
Fix the pipe firmly on the flare die. Match the centers of both the flare die and the flaring punch, and tighten
flaring punch fully.
8) INSTALLATION OF SEPARATE ORIFICE KIT AT OUTDOOR
i) Outdoor Unit Installation Space Is Wide Enough
