Acson AWM 301 User Manual

33

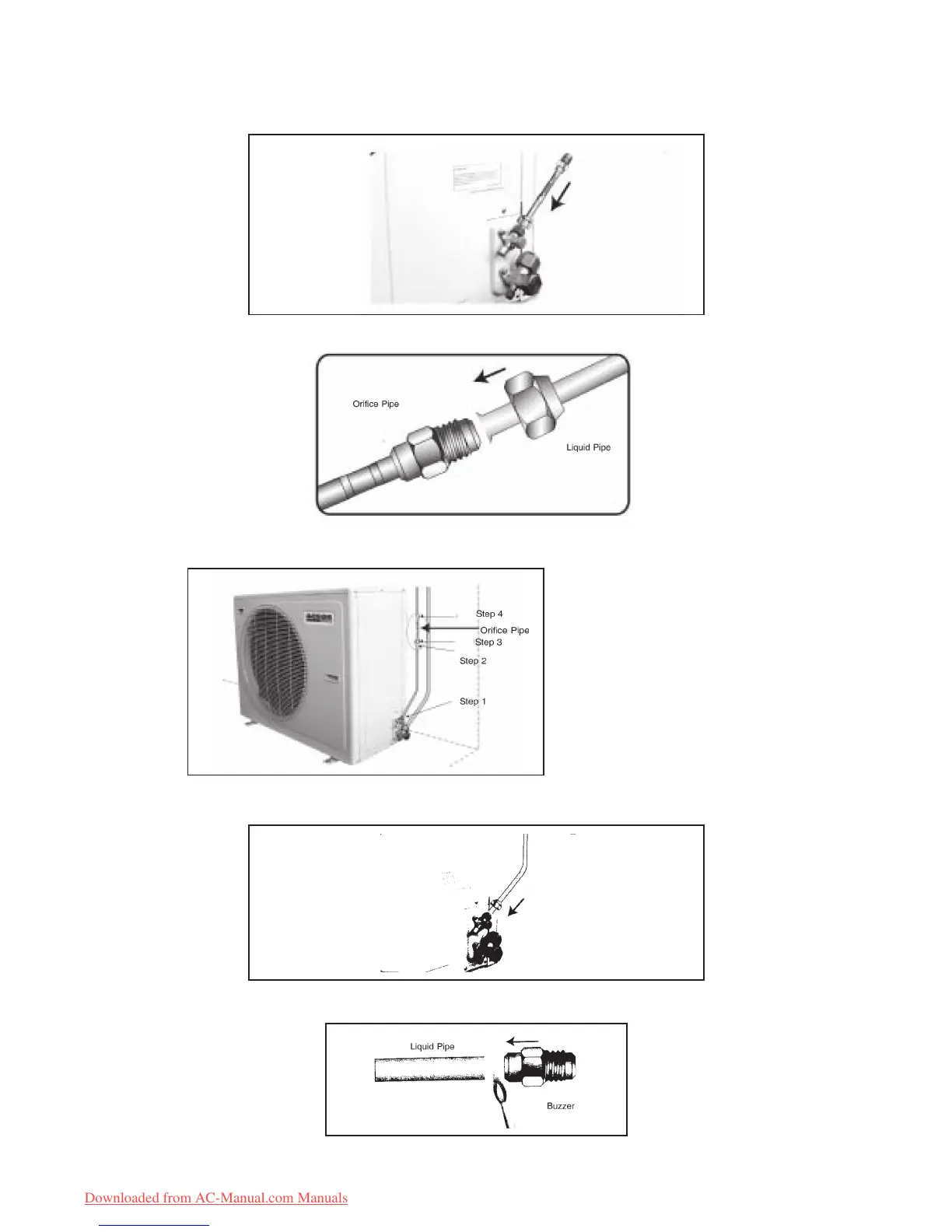

Steps :
a) Directly connect the “Female” nut of orifice pipe to the liquid pipe.
b) Flare the liquid pipe and connect it to the “Male” joint of the orifice pipe.
If the orifice pipe can not be connected
directly to the liquid valve due to
limitation space, it can be connected
between the liquid pipes.
ii) Outdoor Installation Space Is Limited
Steps :
a) Flare the liquid pipe and connect it to the liquid valve.
b) Braze an addition “Male” joint to the liquid pipe.
