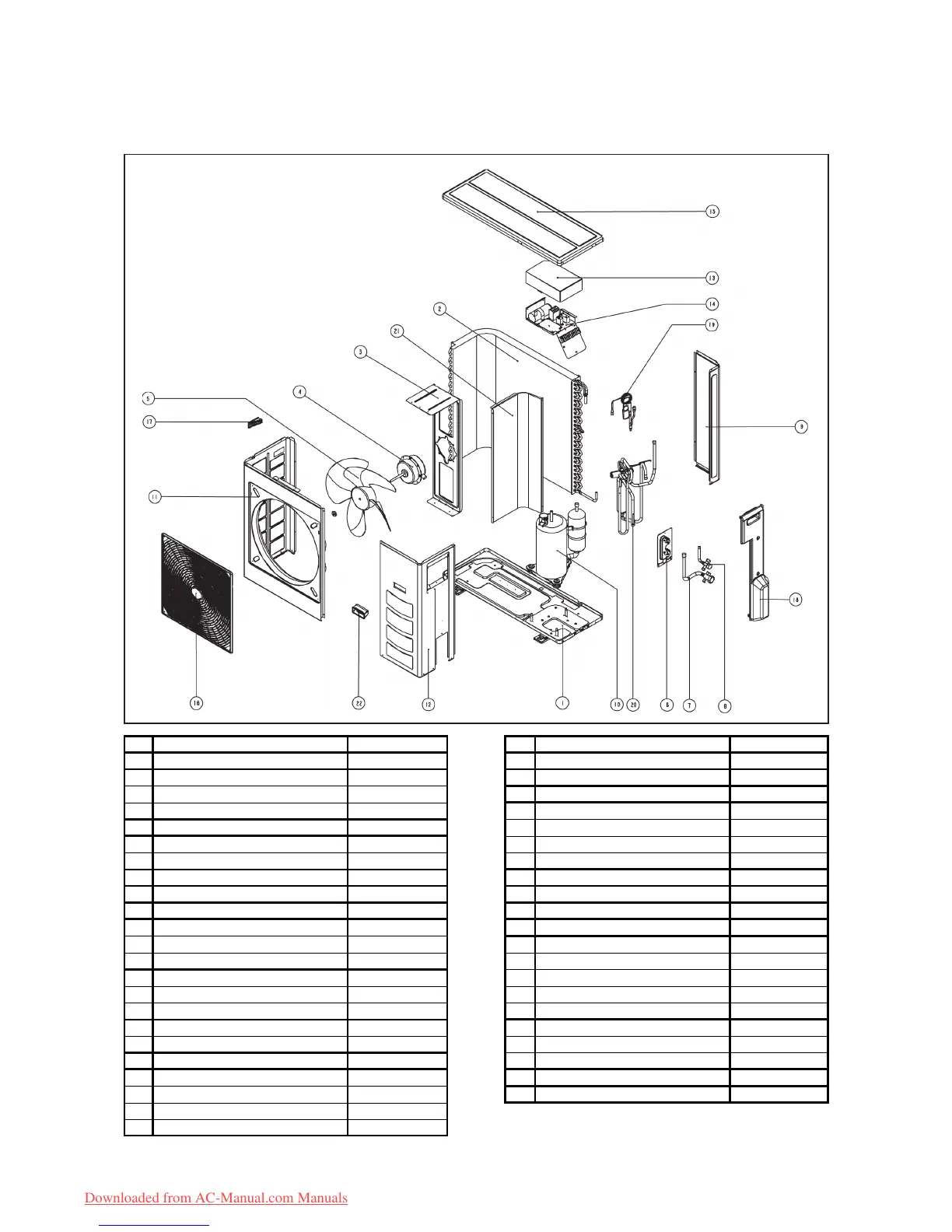

MODEL: A5LC 25CR / 28CR

No Descriptions Part No No Descriptions Part No

1 Assy. Base Pan R50014073884 11 Front Panel, Left R01014070947

2 Assy. Outdoor Coil 12 Service Panel R01014070949

ALC 25CR/28CR R50024077092 13 Terminal Cover Panel R01014070838

A5LC 25CR/28CR R50024075147 14 Assy. Control Panel

3 Motor Bracket R01014070948 A5LC/ALC 25CR R50044077198

4 Fan Motor ALC 28CR R50044080649

A5LC/ALC 25CR R03039023391 A5LC 28CR R50044080650

A5LC/ALC 28CR R03039024538 15 Top Panel R01014070596

5 Fan Blade R03019023393 16 Assy. Front Grille R50124072880

6 Valve Bracket R50014073890 17 Plastic Handle, Side R12014057948

7 Assy. Flare Valve 3 Ways 5/8" 18 Assy. Valve Cover R50124073905

ALC 25CR/28CR R50054072863 19 Assy.Cap Tube

A5LC 25CR/28CR R50059023336 ALC 25CR R50024077286

8 Assy. Flare Valve 2 Ways 3/8" ALC 28CR R50024080186

ALC 25CR/28CR R50059022577 A5LC 25CR R50024078311

A5LC 25CR R50059023334 A5LC 28CR R50024080312

Assy. Flare Valve 3 Ways 3/8" 20 Assy. 4 Way Valve

A5LC 28CR R50059024820 ALC 25CR/28CR R05019004158

9 Back Panel, Right R01014070950 A5LC 25CR/28CR R05019016937

10 Compressor 21 Partition R01014070951

ALC 25CR R04019019032 22 Plastic Handle, Front R12014070955

ALC 28CR R04019012828

A5LC 25CR/28CR R04019020449
