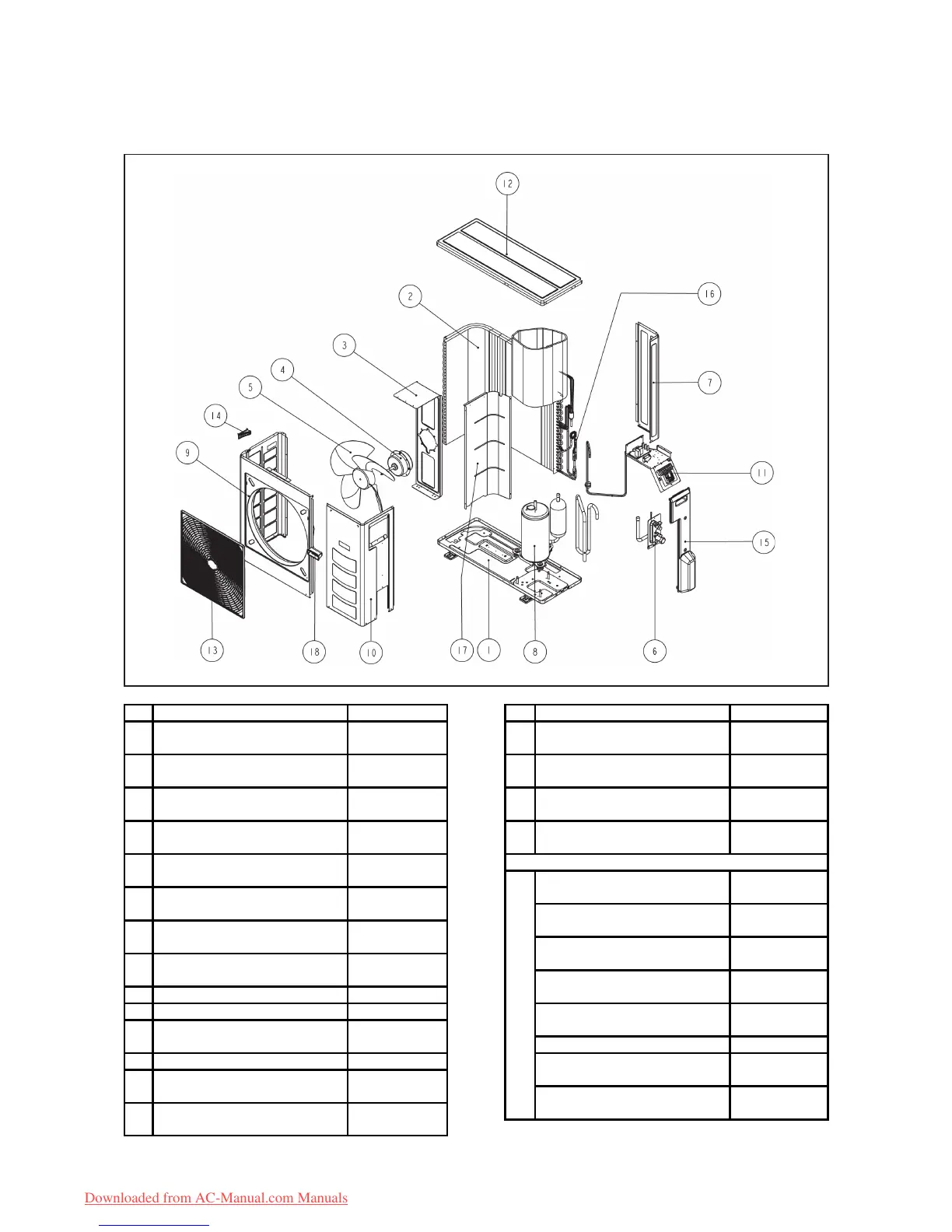

Model : A5LC 25C (3 PHASE)
No Descriptions Part No No Descriptions Part No
Parts Not In The Diagram
9 PANEL FRONT / LEFT R01014070947
10 PANEL SERVICE (SL25C/28C/CR) R01014070949
CLAMP, CAPACITOR 126.0mm R07054028872
12 PANEL TOP (SL20C/25C/28C/CR) R01014070596
PHASE PROTECTOR, PP1.03 NO
SENSOR EXPORT
R04089018834
18
PLASTIC HANDLE FRONT
(SL25C/28C/CR)
R12014070955
ASSY,VALVE 2-WAY(1/4")JA28493-
2MA(R410A)
R50059023334
17 PARTITION (SL25C/28C/CR) R01014070951
15
ASSY VALVE COVER
(SL25C/28C/CR)
R50124073905
16
ASSY,CAPILLARY TUBE (5SL25C-
3PHASE)
R50024092169
PANEL TERMINAL COVER
(SL20C/25C/28C/CR)
R01014070838
CAPACITOR, CMPSR
3.5uF/450V(TAB250)Shizu
R04029026759
ASSY TERMINAL PANEL
(SL20C/25C/28C/CR)
R50014072877
CAPACITOR, CMPSR 45uF/450VAC
Shizuki
R04029026778
ASSY,VALVE 3 WAY(5/8")JB58264-
2MA-R410
R50059023336
14
PLASTIC,HANDLE
SL07C/09C/10C/15C/CR
R12014057948
11
ASSY CONTROL PANEL (5SL25C
3PH)
R50044092273
13
ASSY FRONT GRILLE
(SL20C/25C/28C/CR)
R50124072880
7
PANEL RIGHT BACK
(SL25C/28C/CR)
R01014070950
8
COMPRESSOR, 5JS270PAB01
MATSUSHITA
R04019029248
5
FAN PROPELLER, ¥460 0Z40700
SUNWILL CHIN
R03019023393
6
ASSY,VALVE BRACKET
(5SL25C/25CR)
R50014078321
R01014070948
4
MOTOR, MSL20C/25C-501 64W
WELLING CHINA
R03039023391
1 ASSY PAN BASE (SL20/25/28C(R)) R50014073884
2
ASSY,OUTDOOR COIL
(5SL25C)2RX34THX18FPI
R50024079238
3 BRACKET MOTOR (SL25C/28C/CR)
