162

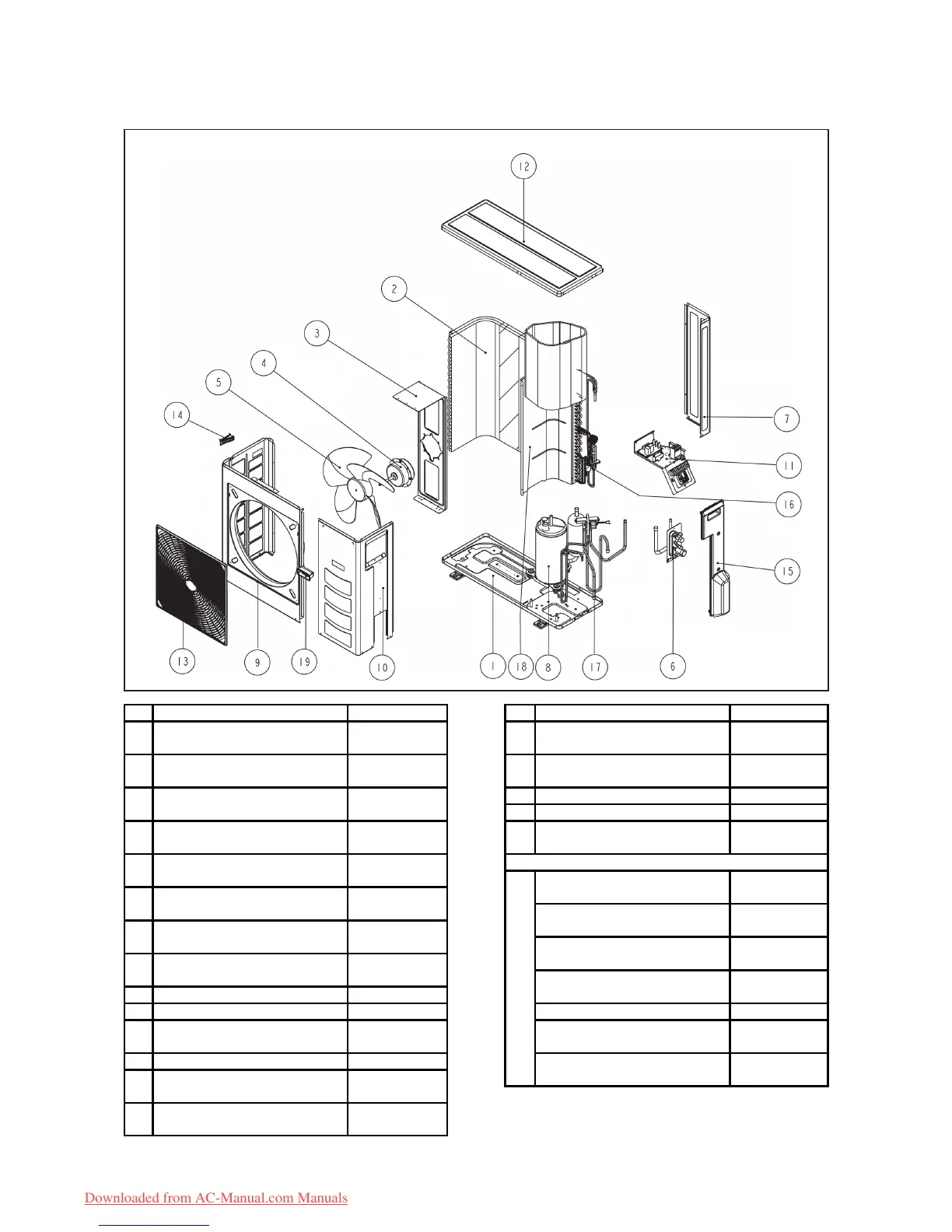

Model : A5LC 28CR (3 PHASE)
No Descriptions Part No No Descriptions Part No
17 ASSY, TUBING 4WV (5SL28CR) R50024080540
18 ASSY PARTITION (SL25C/28C/CR) R50064073900
9 PANEL FRONT / LEFT R01014070947
10 PANEL SERVICE (SL25C/28C/CR) R01014070949 CLAMP, CAPACITOR 126.0mm R07054028872
12 PANEL TOP (SL20C/25C/28C/CR) R01014070596
ASSY TERMINAL PANEL
(SL20C/25C/28C/CR)
R50014072877
PHASE PROTECTOR, PP1.03 NO
SENSOR EXPORT
R04089018834
PANEL TERMINAL COVER
(SL20C/25C/28C/CR)
R01014070838
CAPACITOR, CMPSR 5uF/450V
50/60Hz Shizuk
R04029026966
R50059024820
ASSY,VALVE 2-WAY(1/4")JA28493-
2MA(R410A)
R50059023334
13
ASSY FRONT GRILLE
(SL20C/25C/28C/CR)
R50124072880
14
PLASTIC,HANDLE
SL07C/09C/10C/15C/CR
R12014057948
8
COMPRESSOR, 5JS315PAB01
MATSUSHITA
R04019029629
11
ASSY CONTROL PANEL (5SL28CR
3PH)
R50044092277
Parts Not In The Diagram
15
ASSY VALVE COVER
(SL25C/28C/CR)
R50124073905
16
ASSY,CAPILLARY TUBE (5SL25CR-
3PHASE)
R50024092178
1 ASSY PAN BASE (SL20/25/28C(R)) R50014073884
2
ASSY. OUTDOOR COIL
(5SL25CR/28CR)
R50024075147
3 BRACKET MOTOR (SL25C/28C/CR) R01014070948
4
MOTOR, YDK75-6S/MSL28C-501-
WL
R03039024538
5
FAN PROPELLER, ¥460 0Z40700
SUNWILL CHIN
R03019023393
6
ASSY,VALVE BRACKET
(5SL28C/CR
R50014080371
19
PLASTIC HANDLE FRONT
(SL25C/28C/CR)
R12014070955
ASSY,3 WAY VALVE
(3/8")5SL28C/CR
7
PANEL RIGHT BACK
(SL25C/28C/CR)
R01014070950
