3. If the charger is set up for Li-Ion batteries the following screen will appear instead.

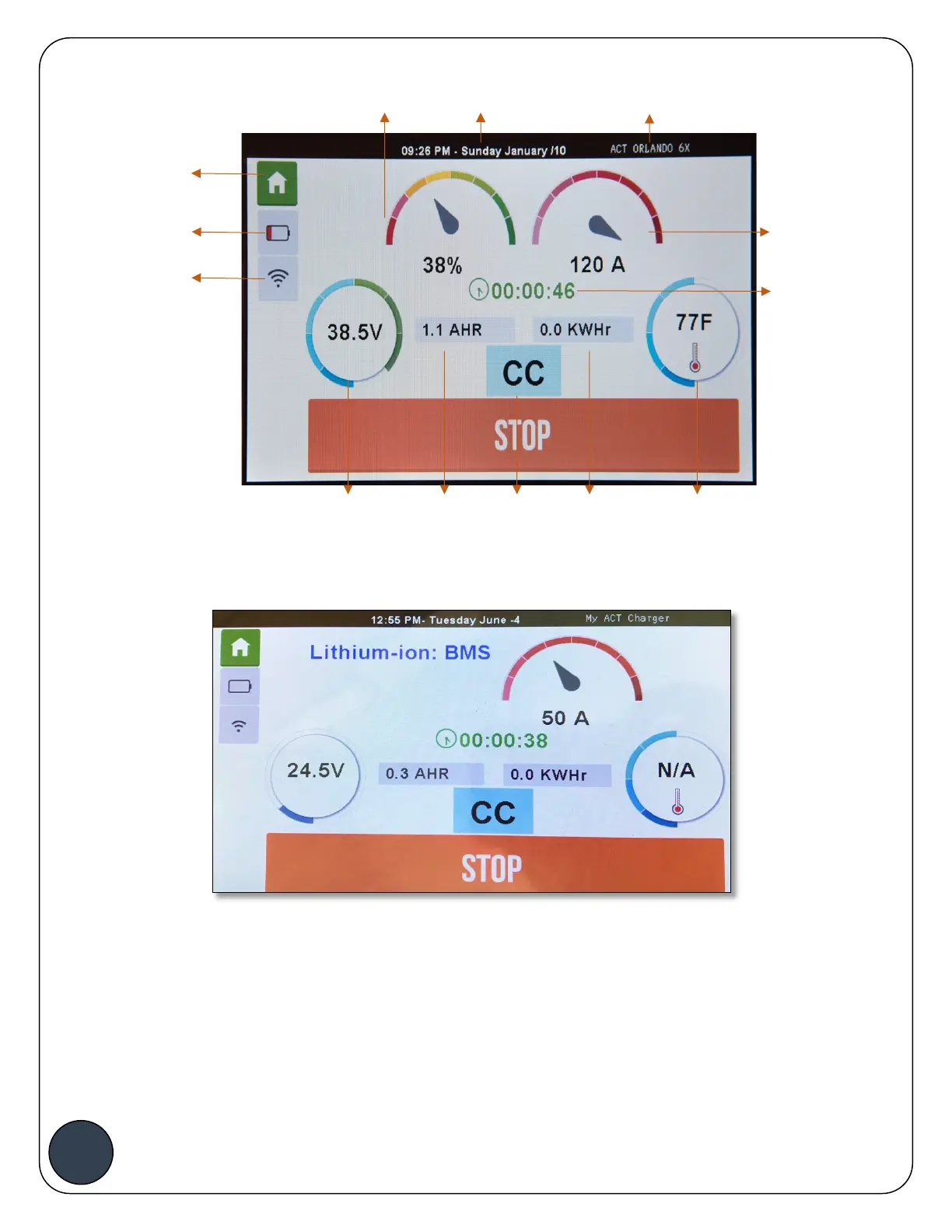

4. The Charging State indicates the active charging mode (TR for trickle, CC for constant current, CV
for constant voltage, FI for finish, or EQ for equalize). The screen also displays the Charging Timer,
% State of Charge gauge along with actual readings of Charging Amps (A), Charging Amp-hours
(AH), Battery Voltage (V), and Battery Temperature (T).
5. To stop the Charge Cycle, select the
STOP
button. The options to
RESUME
or
EXIT
will appear on
the screen.
Current
timer
kWhr
State
AH
button
Charge
indicator
Connectivity
To Next Page
