5-38
USER MANUAL 750000992/16
Using an OTDR module MTS
e
Fault location

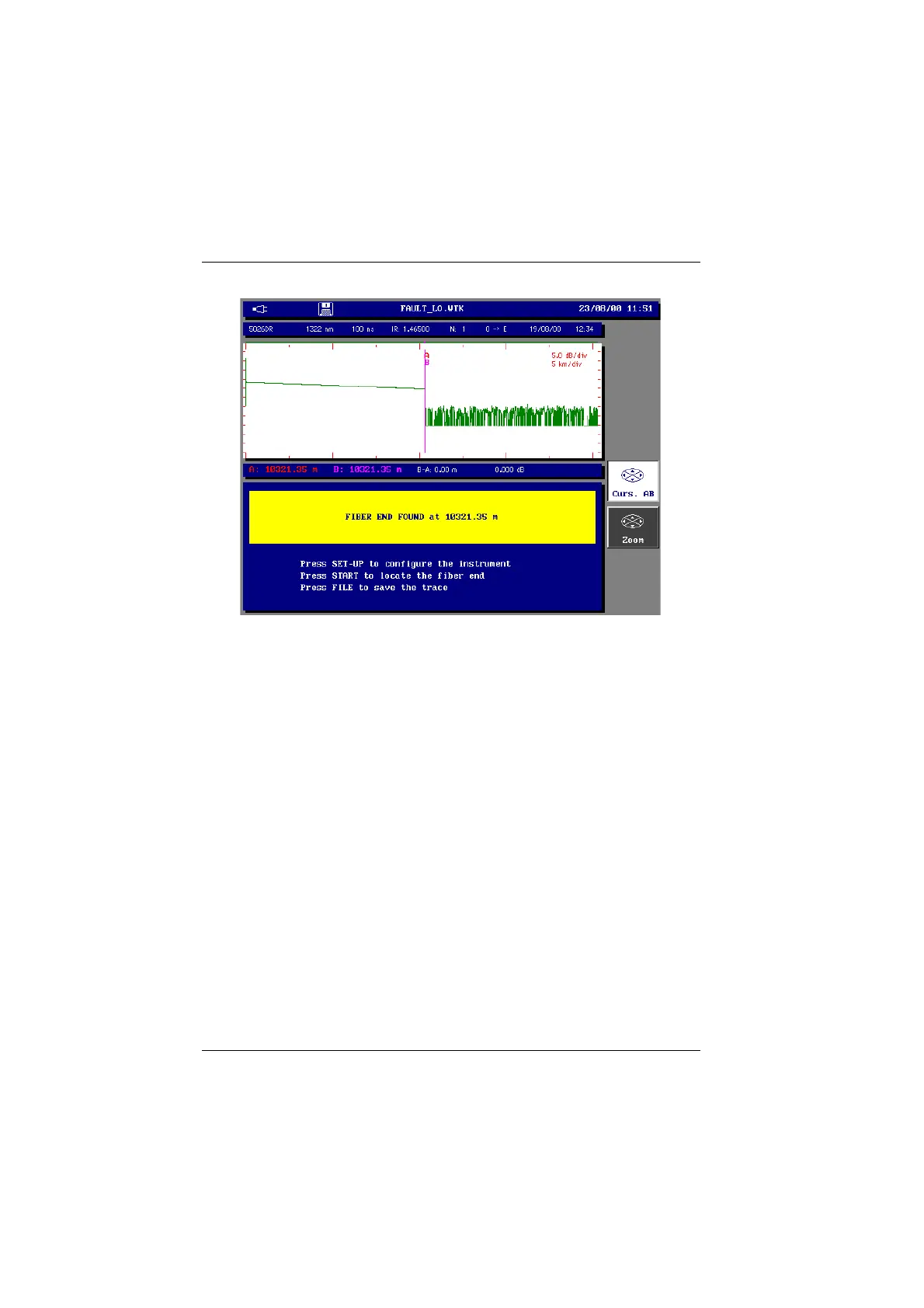

The OTDR trace is also displayed with the cursors A and B placed on the end of
the fiber. Cursor and Zoom keys are available.
Messages indicate how to return to the instrument configuration menu (
SETUP
key) and to locate the end of the fiber again (START key).
The trace may be saved as a normal trace (see chapter 8). After it has been
recorded, it may be viewed:
• either in OTDR mode (with analysis) if the OTDR function is chosen in the
Instrument configuration menu.
• or in Fault location mode (with indication of end of fiber), if the
FAULT
LOCATOR
function is chosen in the Instrument configuration menu
Macro
The macro function gives the possibility of starting a sequence of actions (up to
200) by only a single key.
There are five macros :
• Three user macros (1 to 4)
• A predefined macro, macro 5 (DUAL LASER) which starts a bi-lambda
measurement with storage of acquisition and comparison of traces.
