USER MANUAL 750000992/16
4-9
MTS
e
Rear panel
On the MTS 5200
e
only, if the corresponding options are present :
• the internal printer
• the connector IEEE

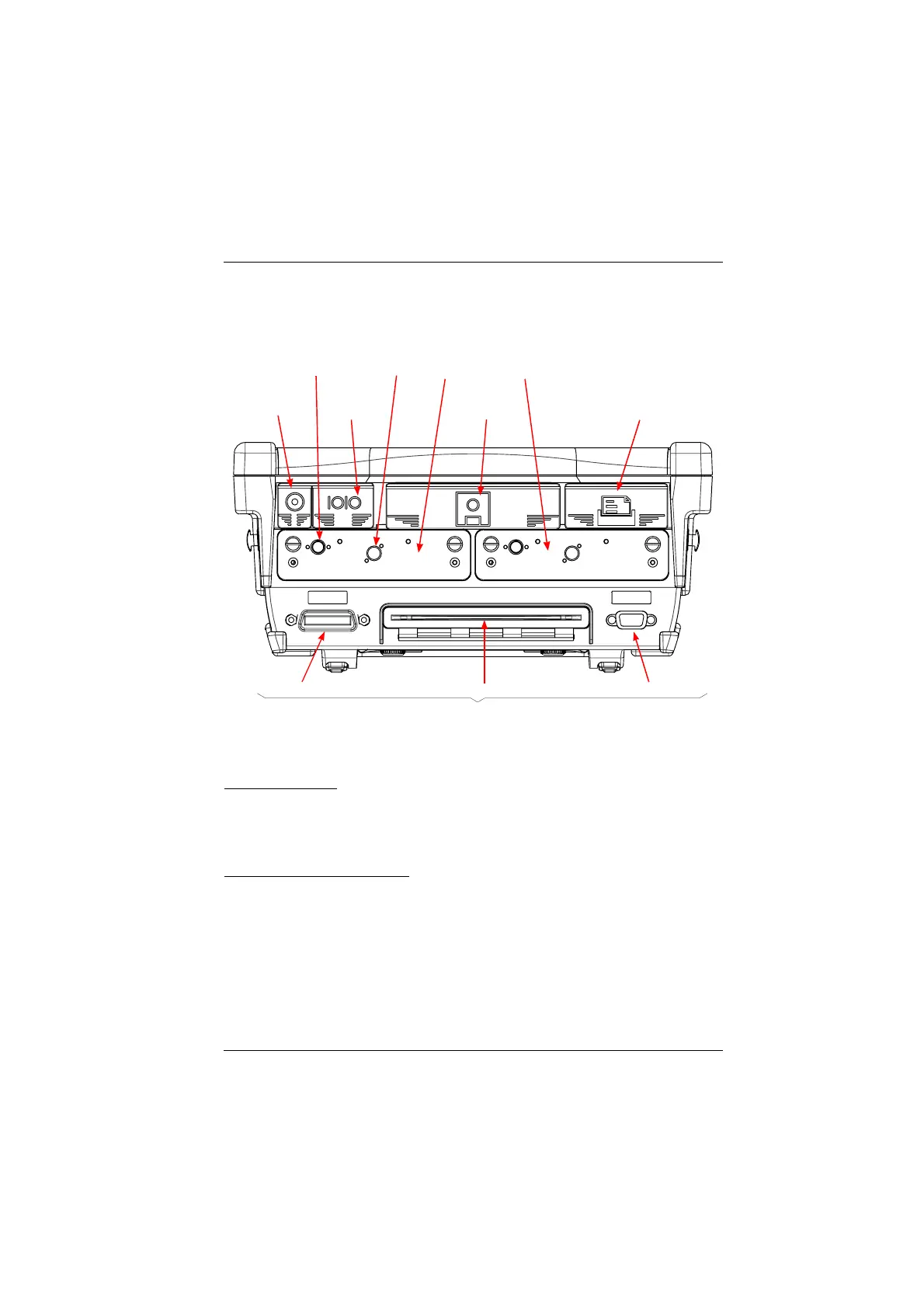

Example of rear panel configuration
(MTS 5200
e
with IEEE and internal printer options)
Fiber connector
The optical connector is used to connect the MTS
e
to the fiber you wish to test.
The connector is protected with a dust cap which should remain in place when
the fiber is not connected.
Floppy disk drive (option)
The floppy disk drive is a 3.5 inch, 1,44 Mb, high density (HD), MSDOS format
unit.
The floppy disk drive enables:
• the installation of new MTS
e
software versions.
• the storage of trace and measurement result files for use at a later date.
Interchangeable modules
(OTDRs in this example)
Optical
connector
VFL output
(option)
Connector for
12 V mains
adapter
RS 232
connector
Floppy disk
drive (option)
Centronics
(printer / keyboard)
IEEE connector Internal printer
MTS 5200
e
only
Computer display output
