Controls MTS
e

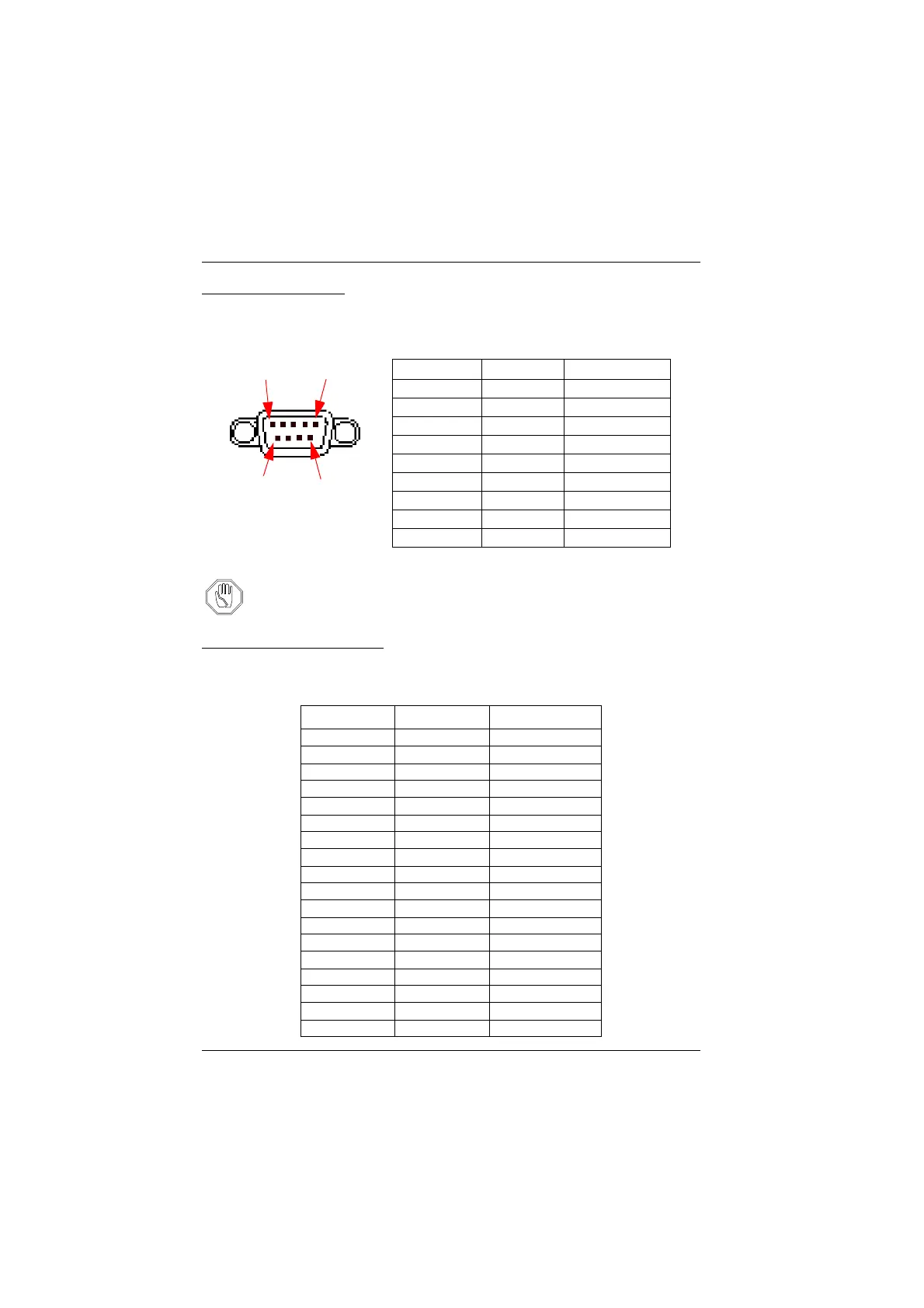

Serial port (RS 232)
A 9 pin serial connector (RS232 DTE) allows a direct connection to a modem for
programmed operation.
Attention In the case of a connection to a computer (PC for example) which has
also a DTE behavior, use a cord inverting pins 2 and 3,
4 and 5, 8 and 9.
It can be necessary to use a male/femelle adapter.
Parallel port (Centronics)
25 pin connector (Centronics) allowing the connection of an external centronics
printer or a keyboard.
MTS
e
pin
Function Input/output
1
DCD
←
2
RxD
←
3
TxD
→
4
DTR
→
5
GND
→
6
DSR
←
7
RTS
→
8
CTS
←
9
15
9
6
Port RS232
MTS
e
pin Printer pin Line name
11STROBE
22 D0
32 D1
42 D2
52 D3
62 D4
72 D5
82 D6
92 D7
10 10 ACK
11 11 BUSY
12 12 PE
13 13 SLCT
14 14 AUTO FEED
15 32 -ERROR
16 31 INIT
17 36 SLCT IN
18-25 19-31 GND
