ACTi A425 - Physical Description

www.acti.com
Hardware Manual
8

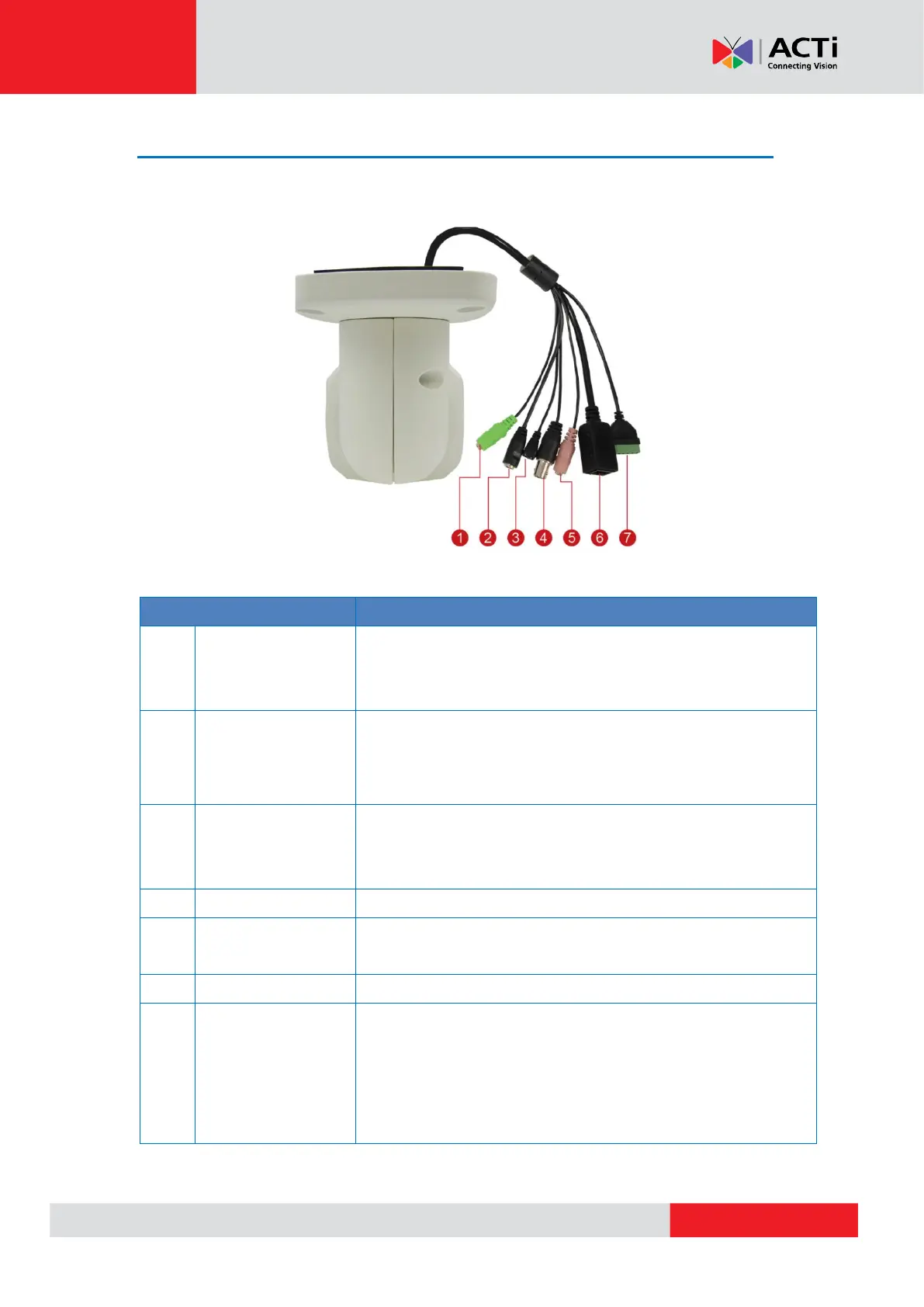

Physical Description
A44, A48
Item
Description
1
Audio Output
This jack connects to an audio output device, such as a
speaker. See How to Connect Audio Input / Output Devices
(Optional) on page 17.
2
DC 12V Power Input
Connects the camera to an external power adapter (not
included). See Connecting a Power Adapter (Optional) on
page 17 for more information.
3
Reset Button
Restores the factory default settings of the camera, including the
administrator’s password. To reset the camera, press and hold
the Reset button for at least 10 seconds.
4
BNC Video Output
Connects the camera directly to a monitor with BNC input.
5
Audio Input
This jack connects to a microphone. See How to Connect
Audio Input / Output Devices (Optional) on page 17.
6
Ethernet Port
Connects to a network using a standard Ethernet cable.
7
Digital Input / Output
Connects to digital input or output devices, such as an alarm
trigger, panic button, etc. Digital Input (DI) and Digital Output
(DO) devices are used in applications like motion detection,
event triggering, alarm notifications, etc. See Connecting the
Digital Input / Output Devices (Optional) on page 18.
