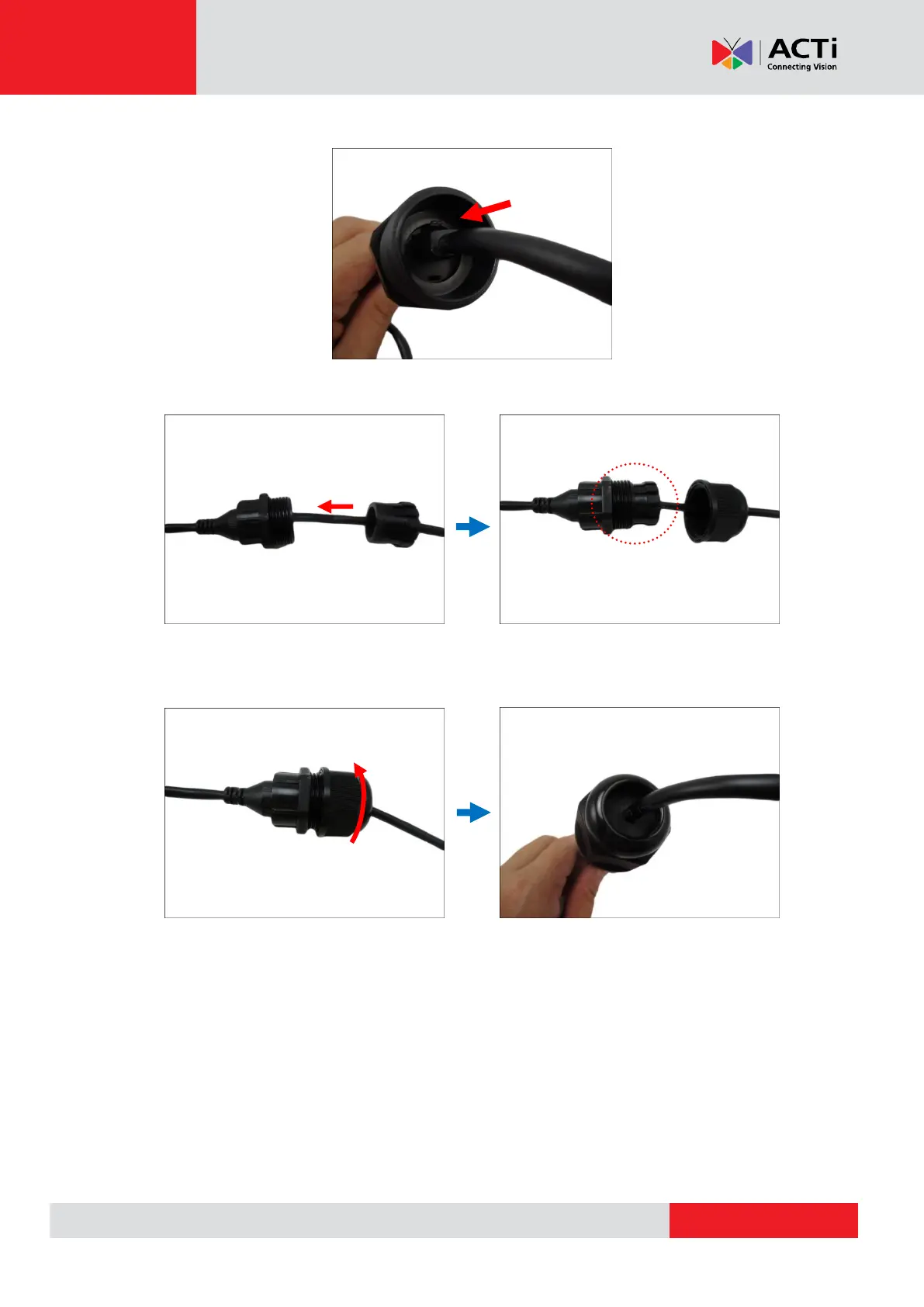

7. Connect the Ethernet connector to the Ethernet port of the camera.
8. Insert the sealing rubber and claw into the cable gland body.
9. Attach the clamping nut to the cable gland body. Make sure the clamping nut is tightly
secured and the rubber is squeezed in to avoid water leakage.
