ACTi MNR-320P - Install the Hard Disk

4 Quick Installation Guide
MAKE SURE THE UNIT IS NOT CONNECTED TO POWER before installing the
hard disk.

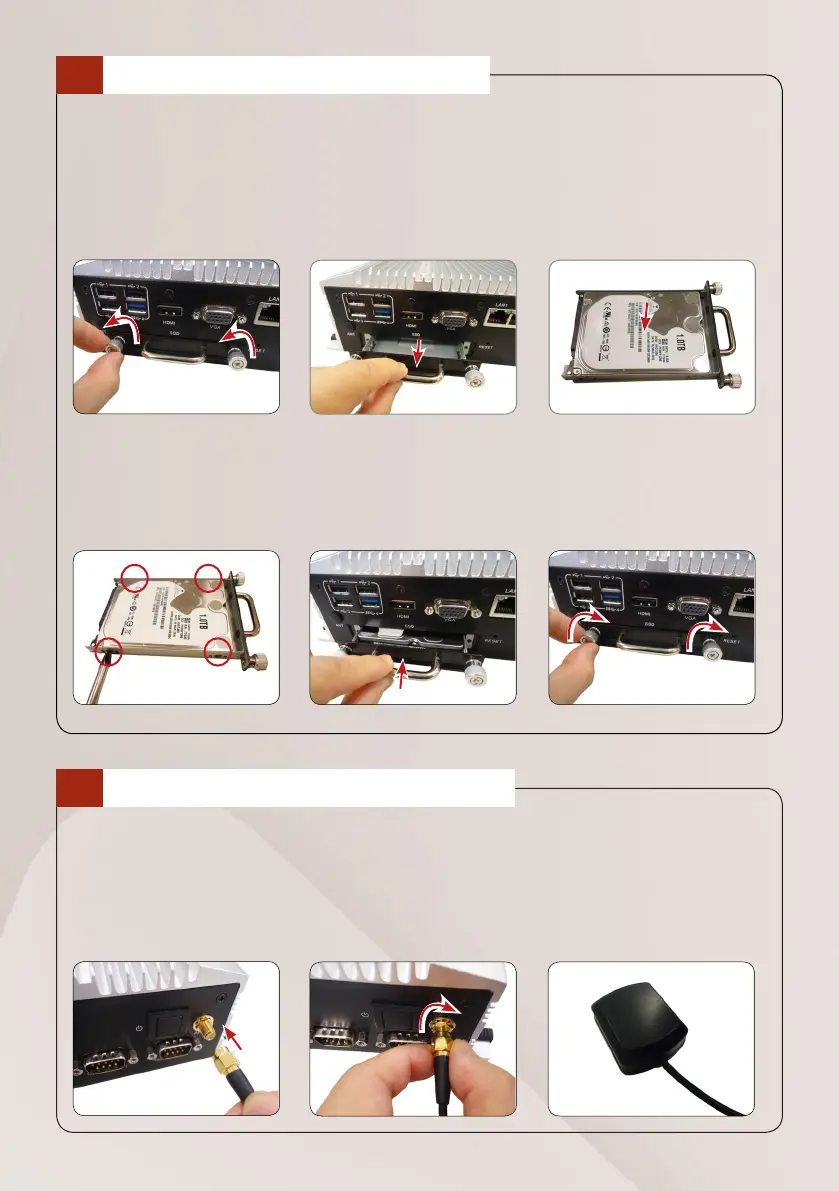

Step 1
Loosenthetwo(2)
thumbscrews.
Step 2
Pull out the tray.
Step 4
Secure the disk using the
four (4) supplied screws.
Step 5
Slide the tray back into
the slot.
Step 3
Mount the disk on the
tray.
INSTALL THE GPS MODULE
4
INSTALL THE HARD DISK
3
Step 6
Tightenthetwo(2)
thumbscrews to secure
the tray.
Step 1
Attach the GPS module
connector to the antenna
connector on the MNR.
Step 2
Tighten the connectors
to secure the GPS
antenna.
The GPS antenna is bundled with the MNR package.
Step 3
Place the GPS antenna on
aatsurface.
