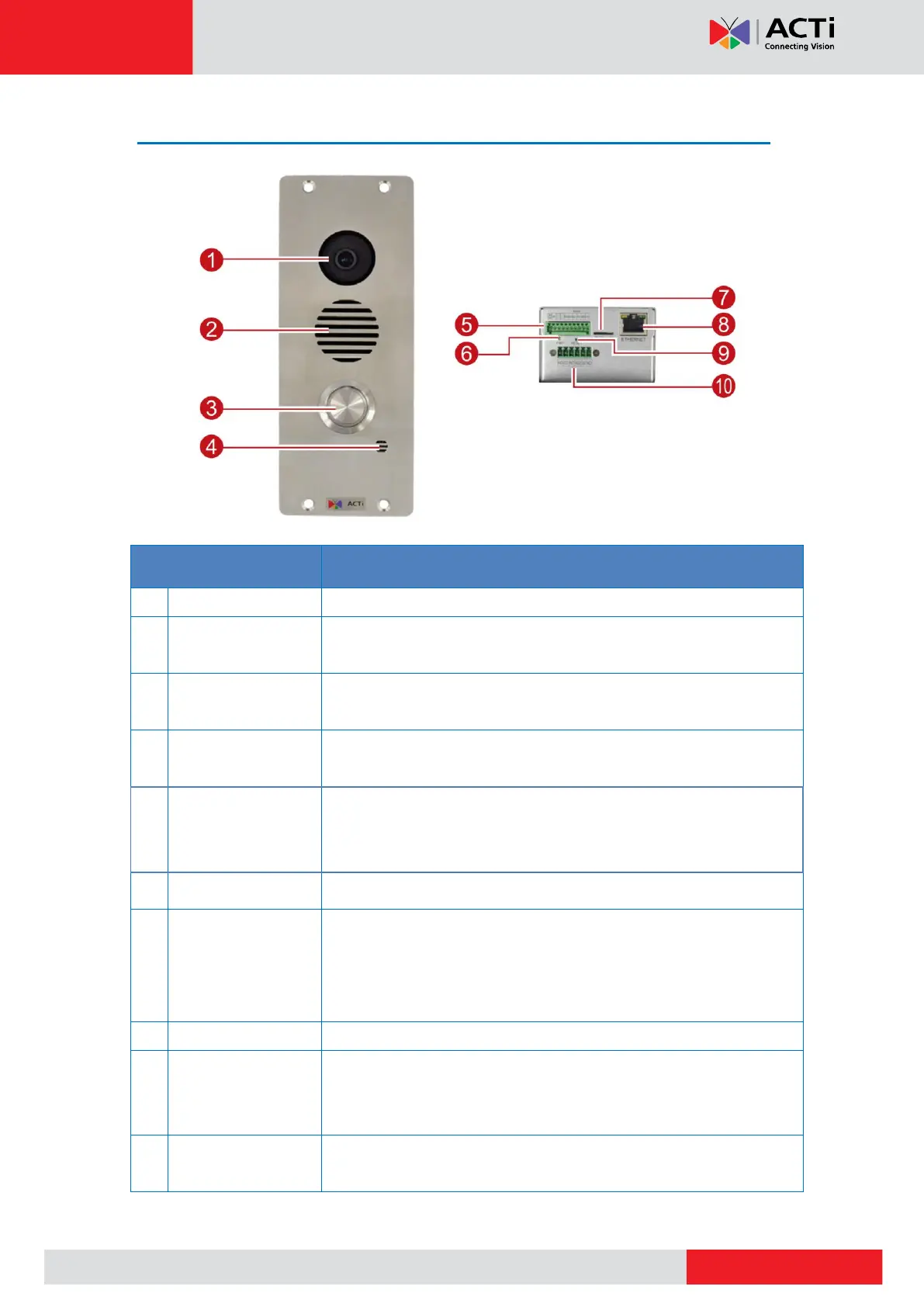

Physical Description
Provides a wide viewing angle
The built-in speaker allows the user to hear the person on the
receiving end.
Functions as the emergency button. Push to notify and speak to
personnel in charge.
The built-in microphone allows the user to speak to the person on
the receiving end.
Audio Input /
Digital Input /
Serial Connector
Connects external input devices such as audio and digital input
devices. Serial devices that use RS-485 protocol can also be
connected here. See Cable Connections on page 11.
Lights red when the camera is powered up.
Insert a memory card (not included) into the slot for local recording
purposes. See How to Install / Remove the Memory Card on
page 14 for more information.
NOTE: Supports only microSDHC and microSDXC cards.
Connects to a network using an Ethernet cable.
Restores the factory default settings of the camera. To reset the
camera, while the power is on, press and hold the Reset Button for
at least 5 seconds or until the Power LED goes off.
Connects to digital output devices, such as an alarm trigger, etc.
See Cable Connections on page 11 for information.
