Action S001964 - Assembly Instructions

11
S001964 10ft Trampoline
AssemblyInstructions
Step 1

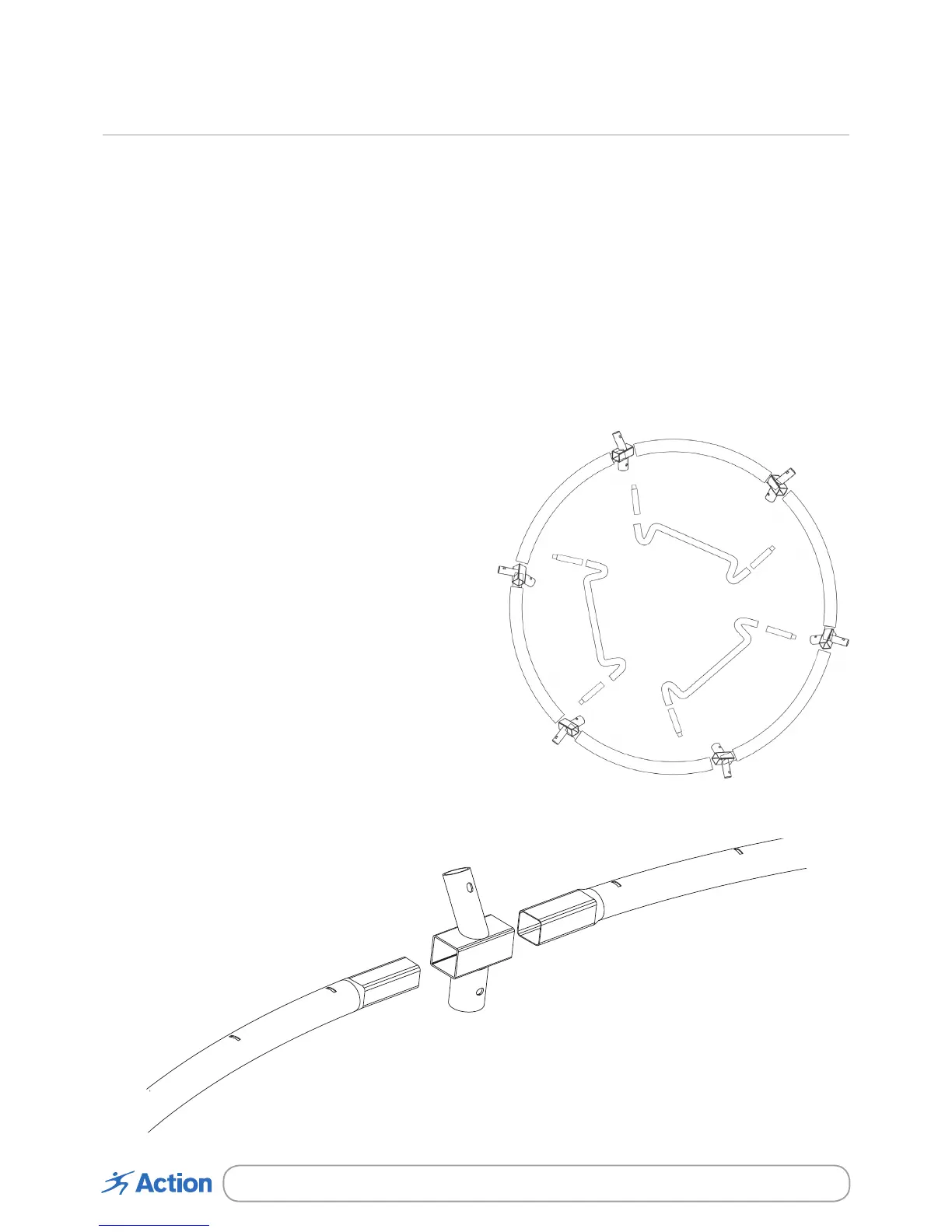

Lay out the frame parts (Top Rail (3), Leg
Extension(5)&LegBase(4))onaclear,dry
levelsurface.The6xTopRails(3)should
formacircle,the6xLegExtensions(5)and
3xLegBases(4)shouldsitinsidethecircle
made by the Top Rails.
Takeoutthe6xT-Joints(9)andplacethese
inbetweeneachTopRail(3).Nextbegin
assembling the frame by placing the Top Rails
(3)intotheT-Joints(9).
Note: The T-Joint (9) should have the
smaller tube facing upwards and pointing
away from the frame. The Top Rails (3)
should also have the grooves in the frame
facing upwards.
Toassemblethistrampolineallyouwillneedisthespringhookthatisprovidedwithinthecarton.
Duringperiodsofnon-use,thetrampolinecanbedisassembledandstored.
Priortoassemblingthistrampoline,removeallpartsfromthecartonandchecktoensurethatallparts
listedinthePartsListonpage5arepresent.Ifyou’remissinganyoftheparts,pleasecallourNational
ServiceCentretohavereplacementpartssentoutpriortobeginningassembly(detailscanbefoundin
the warranty pages at the end of this manual).
Note: It is recommended that 2 adults assemble this trampoline.
9
4
3
9
5
3
