ActionTec WCB3000N User Manual

Wireless Network Extender
To change the wireless security settings on the Extender’s network:
(Note: to manually congure the wireless settings on the Extender, the "Auto
Congure" check-box on the Advanced Set Up GUI page must be empty.)
!
1. Select a wireless operating frequency (2.4 or 5 GHz).
2. Select an SSID.
3. Enter a “Wireless Network Name.”
4. Select a wireless frequency band from the “Wireless Band” drop-
down menu.
5. Choose "Wireless Data Rate" (“Auto” is recommended), and enable
SSID Broadcast.
6. Select a security type. If WEP is chosen, enter one or more keys in the
“Key” text boxes. If WPA is chosen, select a “MODE,” “CYPHER,”
and “Authentication Mode,” then enter a “PSK Key.”"
"
Note: WEP security is only available if the router/gateway is
congured for WEP.
7. Click Apply.

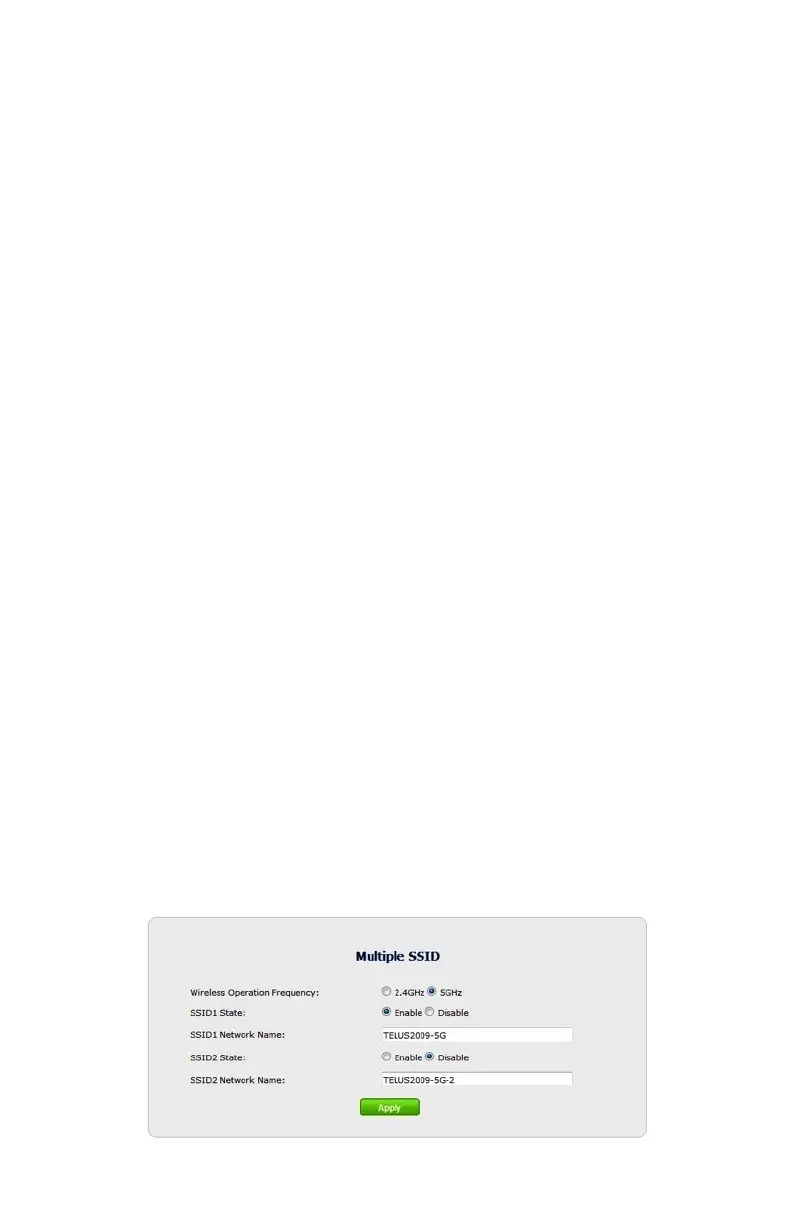

Multiple SSID
e “Multiple SSID” wireless network screen allows the Extender to form
two different wireless networks, with one on each frequency. To do this,
select the “Wireless Operation Frequency” (2.4 or 5 GHz), enable the
“SSID State” and enter a name for the network. Finally, click Apply.!
12
