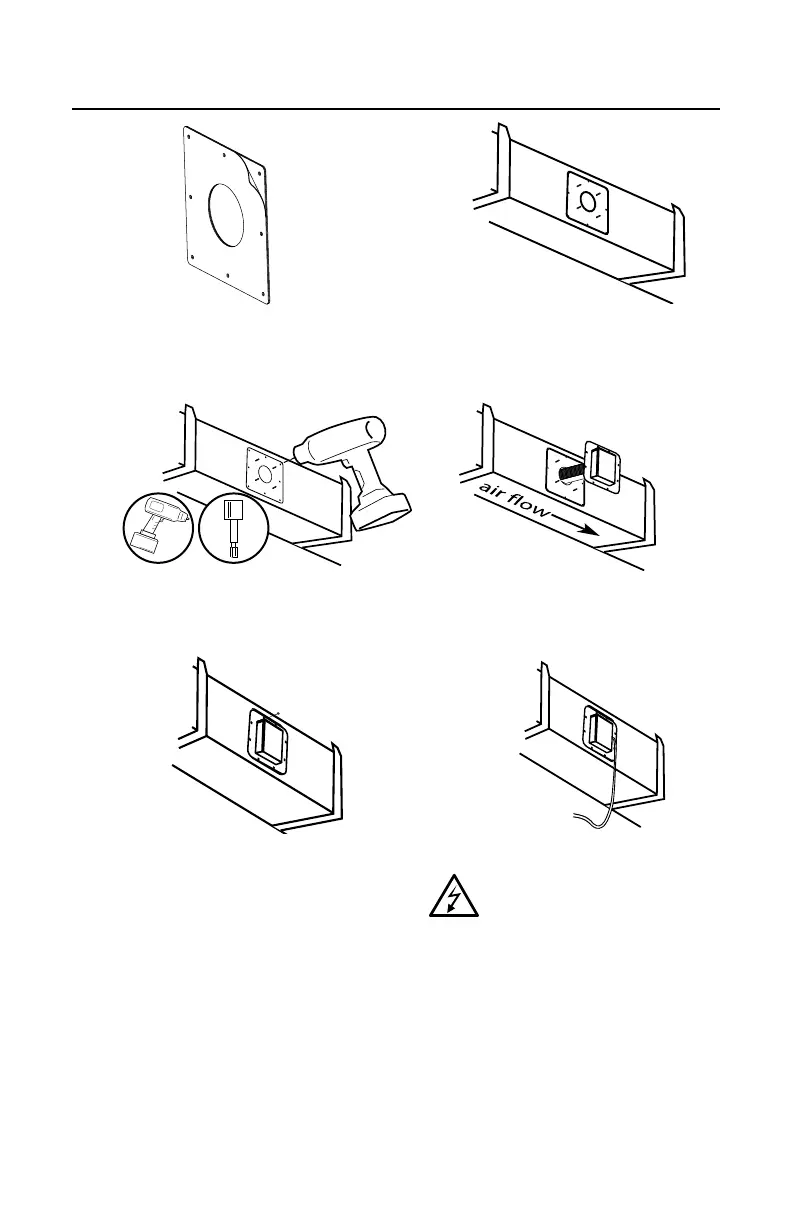

5. Remove backing from mounting plate
adhesive gasket.
6
6. Center openings and press mounting plate onto
duct. The adhesive gasket will hold the mounting
plate in place.
8
8. Insert unit into opening. Be sure the air will pass
though the ActivePure cell honeycomb matrix.
9
9. Secure the unit to the mounting plate with
(4) #8-32 nuts.
10
10. Plug unit into working power receptacle.
Hard wiring unit into HVAC system
should be done by a licensed
HVAC installer or electrical
contractor only.
7
7. Secure the mounting plate using (8) #8 self-
tapping screws.
METAL DUCTWORK INSTALLATION
(CONTINUED)
