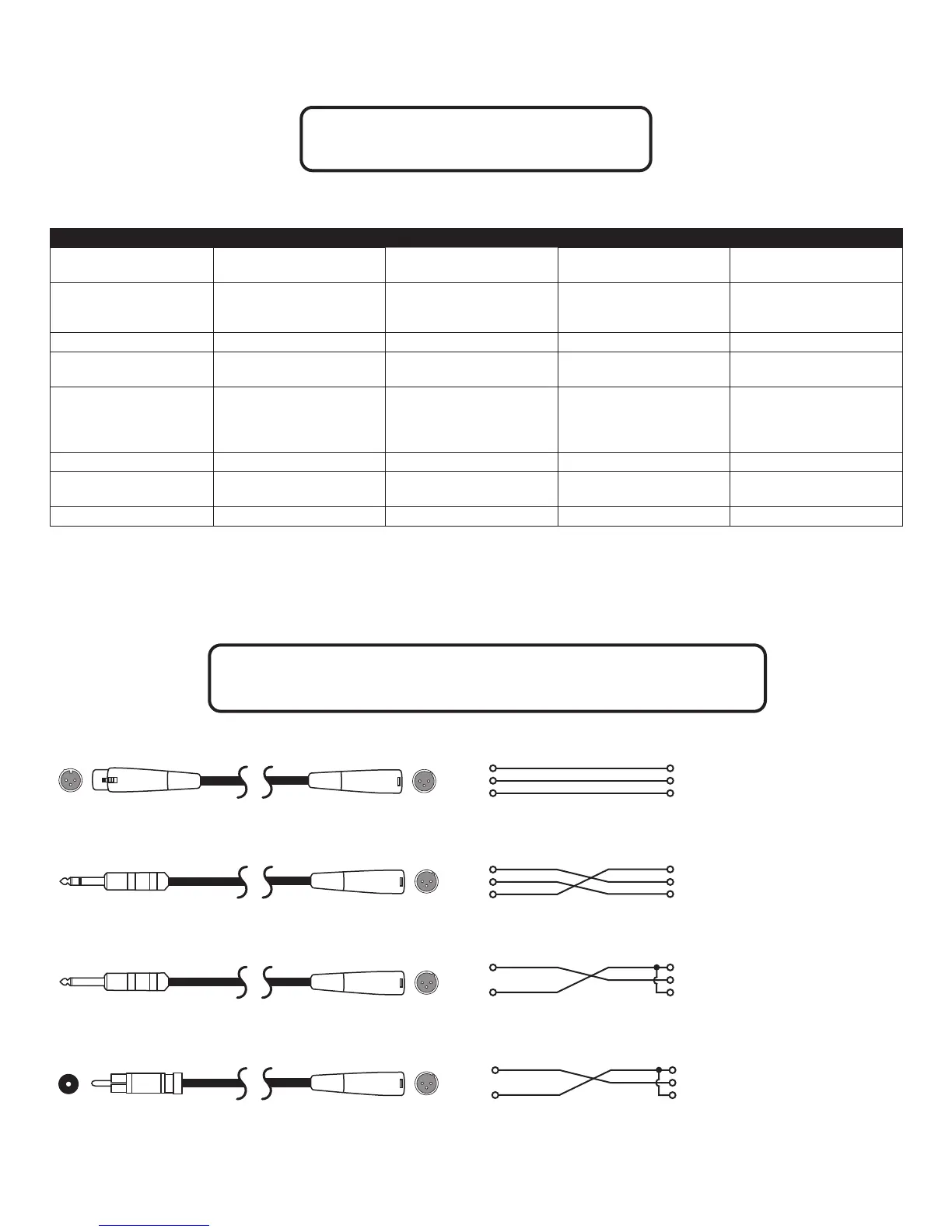

Specifications
Cables and Connectors
XLR/F to XLR/M balanced cable
1
1 (shield)
2
2
3
3
Balanced XLR mixer
output to ACTPRO-HD
speaker
TRS (balanced) ¼" phone jack to XLR/M
Tip
1 (shield)
Ring
2
Sleeve
3
Balanced ¼" mixer
output to ACTPRO-HD
speaker
TS (unbalanced) ¼" phone jack to XLR/M
Tip
1 (shield)
2
Sleeve
3
Unbalanced ¼" mixer
output to ACTPRO-HD
speaker
XLR/M to RCA (phono) cable
1
Center
2
3
Shield
Unbalanced RCA mixer
output to ACTPRO-HD
speaker
B-52 ACTPRO-HD ACTPRO-1515 HD ACTPRO-18S HD ACTPRO-18F HD
Power Consumption @ 115V
Vac (1/8 power pink noise)
3 A 2.5 A 2.5 A
Connectors
Balanced female XLR input
Balanced male XLR link output
Balanced female XLR L&R inputs
Balanced male XLR L&R link outputs
Male XLR L&R High-pass outputs
Balanced female XLR L&R inputs
Balanced male XLR L&R link outputs
Male XLR L&R High-pass outputs
Input Sensitivity (3) 775mV (0dBu) 775mV (0dBu) 775mV (0dBu)
Enclosure
Black Warnex® painted birch
plywood
Black Warnex® painted birch
plywood
Black Warnex® painted birch
plywood
Hardware
Metal handles
Rubber feet
Metal handles
Rubber feet
1 3/8” Pole mounting cup
3” Detachable casters
Metal handles
Rubber feet
1 3/8” Pole mounting cup
3” Detachable casters
Grille Powder coated 16 gauge steel Powder coated 16 gauge steel Powder coated 16 gauge steel
Dimensions
46” H x 19.5” W x 18” D
(1168mm x 495mm x 457mm)
26.5” H x 23.5” W x 23.5” D
(673mm x 597mm x 597mm)
36.5” H x 24” W x 32.5” D
(927mm x 607mm x 826mm)
Weight 90 lbs. / 40.8 kg 95 lbs. / 43.1 kg 155 lbs. / 70.3 kg
ACTPRO-212S HD
2.5 A
Balanced female XLR L&R inputs
Balanced male XLR L&R link outputs
Male XLR L&R High-pass outputs
775mV (0dBu)
Black Warnex® painted birch
plywood
Metal handles
Rubber feet
1 3/8” Pole mounting cup
3” Detachable casters
Powder coated 16 gauge steel
29.5” H x 14” W x 26.5” D
(749mm x 357mm x 673mm)
98 lbs. / 44.5 kg
