ACTpro Readers Installation Manual
Copyright © 2016 Access Control Technology Ltd. Part No.18-00106 Issue 0
ACTpro 1040e/1050e/1060e

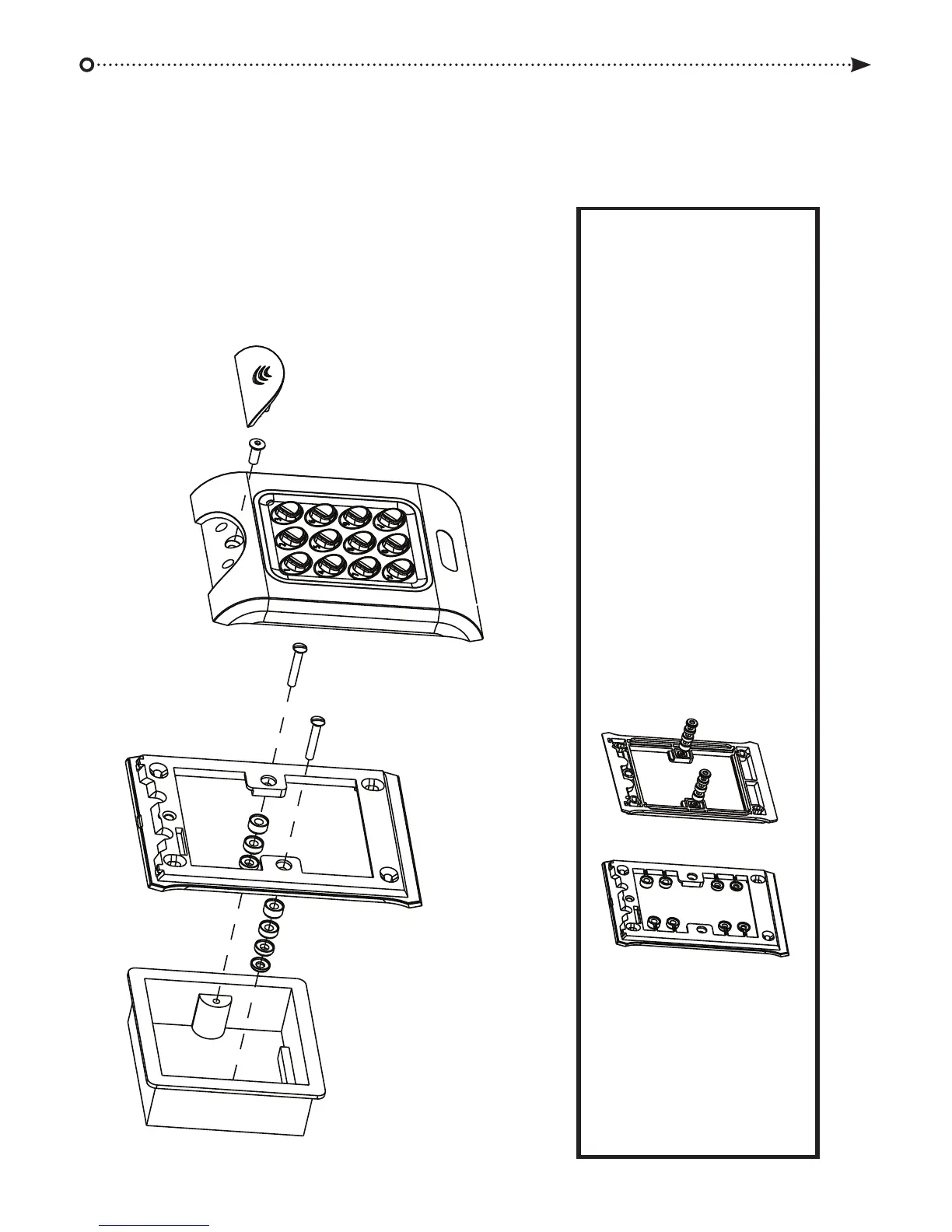

Flush Mounting to UK Pattress Box
Mounting plate is attached to the pattress
Ensure the correct spacers have
been used to bridge the gap between the mounting
plate and the fixing wings of the pattress
the mounting plate being distorted.
Place the reader / keypad onto the
surface mount collar and clip
down into place. Use the security
screw supplied to attach the unit
to the flush mount collar.
Security screw
supplied with the unit
Screws
Place the cap onto the unit
and push firmly in place
Note:
Determine the distance between the pattress box
and the mounting plate, using the spacers that are
labelled 1mm to 4mm. A spacer of the correct
length is assembled by stacking the spacers
together.
Spacers break away
from main component
when required by
installer for use
View showing spacer
stacking
View shows mounting
plate before spacers are
broken away by installer
To Next Page
