ACTpro 1050e - ACTpro 1030 e Connections

ACTpro Readers Installation Manual
Copyright © 2016 Access Control Technology Ltd. Part No.18-00106 Issue 0

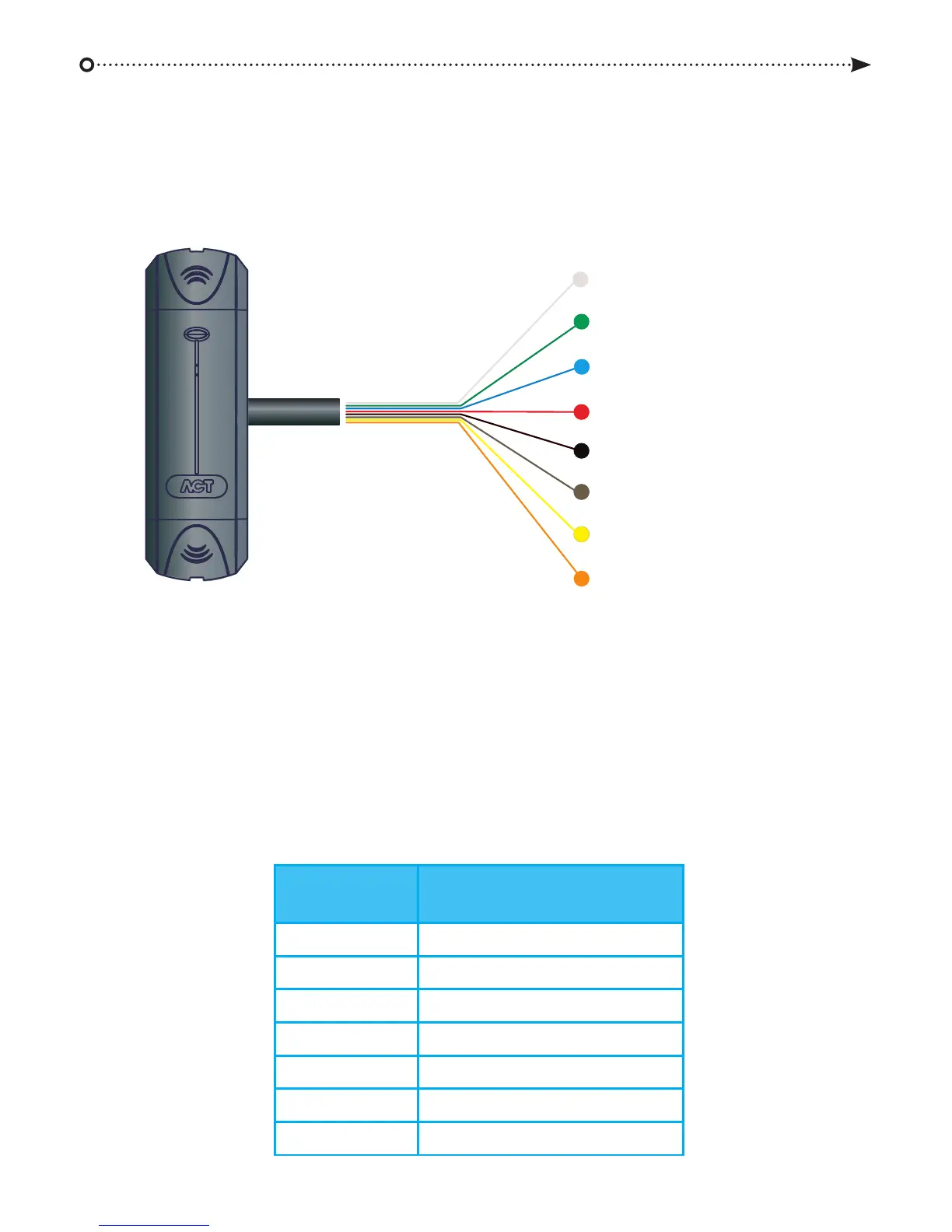

Reader Connections - ACTpro 1030e
ACTpro 1030e is supplied with 9ft/3m pigtail cable.
CAT 5/6 Colour Code
The following is suggested colour coding if using CAT5 or CAT6 cabling.
Reader
Output
Colour
Sense White/Green
Clock / D1 Green
Data / D0 Blue
+12V Orange
(0V) GND White/Orange
Red LED Brown
Green LED White/Brown
CLOCK/D1 (Green)
SENSE (White)
DATA/D0 (Blue)
+12V (Red)
0V/GND (Black)
RED LED (Brown)
GREEN LED (Yellow)
BUZZER (Orange)
