ACTpro Readers Installation Manual
Copyright © 2016 Access Control Technology Ltd. Part No.18-00106 Issue 0

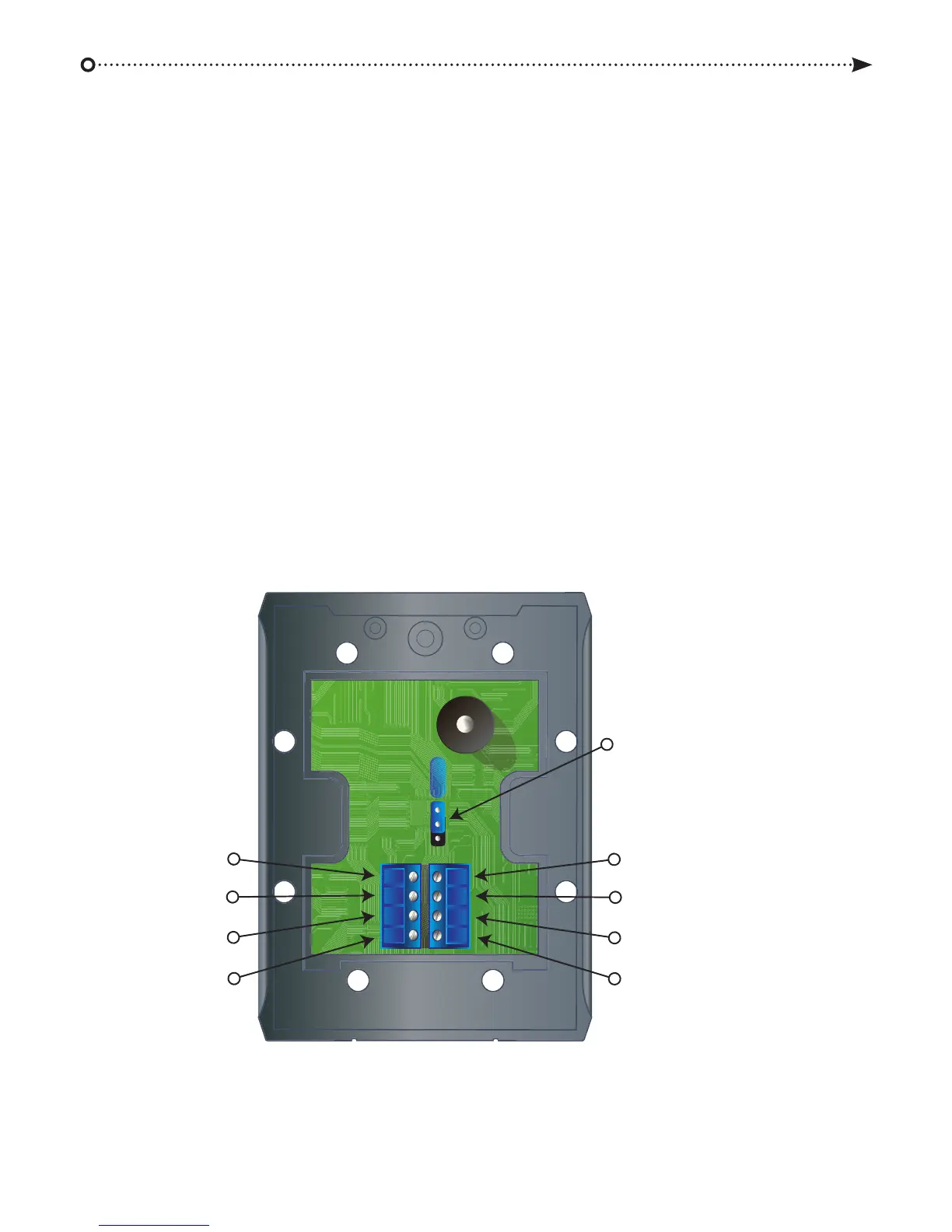

Reader Connections - ACTpro 1040e/1050e/1060e
0V / GND
RED LED
GRN LED
BUZZ CTRL
5-12V DC
Data/D0
CLOCK / D1
SENSE
1050e/1060e Backlight Select
Top PINS = Backlight On
Bottom PINS = Backlight Off
Product Description
ACTpro RFID readers are 125Khz readers that support all ACT RFID
cards and fobs and HID-compatible tokens.
• Compatible with ACT RFID cards and fobs.
• Compatible with HID Clock and Data and Wiegand cards/fobs.
• Features a buzzer and an LED indication.
• Can be con gured for Clock and Data or Wiegand output.
• Compatible with all standard access control systems.
