08. Unit Lifting Procedure
WARNING
WH&S regulations must be observed and will take precedence during lifting process.

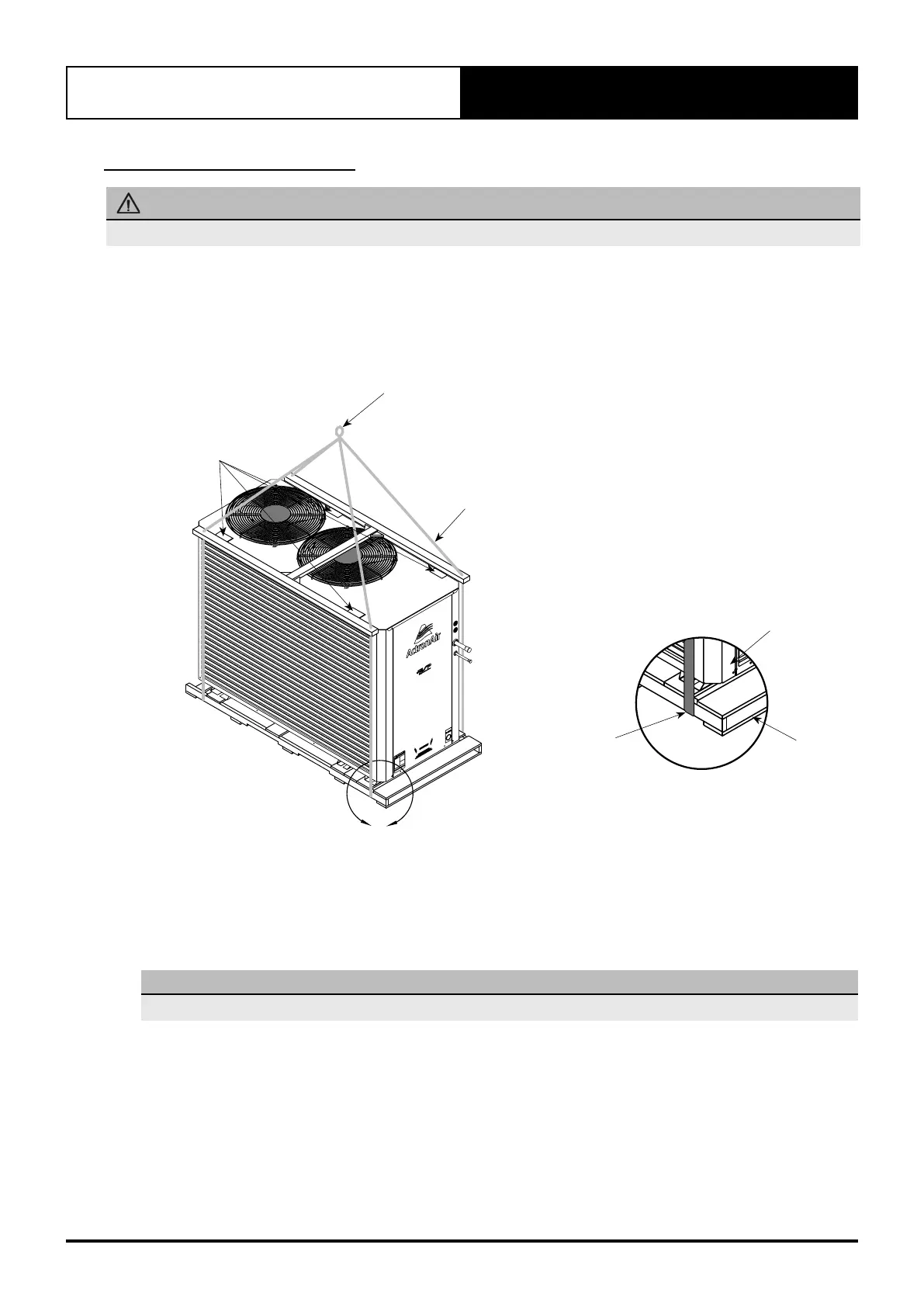

08.01. Crane Lifting Method
Crane lifting method is recommended for high rise lifting.
DETAIL A
PALLET
INDOOR
UNIT
Slip nylon slings
through the pallet
A
Fig. 1
Connect the loop ends
of slings onto shackle
Provide rubber pads
to prevent damage
to the unit
SPREADER
BARS
Equipment Required For Crane Lifting:
• 1 x shackle
• 2 x nylon slings
• Spreader bars
NOTE
Refer to Unit Dimension and Weight section for unit weight before selecting shackles and slings.
Procedure:
1. Slip nylon slings through the pallet as shown in Fig. 1.
2. Use a Bow or Dee shackle to connect the slings.
3. Ensure slings are protected by rubber pads or similar if slings are draped across unit edges, corners, or air
grilles. This will prevent the unit from being damaged during lifting.
4. SPREADER BARS must be used when lifting the unit. Ensure that the spreader bar is slightly larger than the base.
5. Test lift the unit to determine exact unit balance and stability before hoisting it to the installation location.
