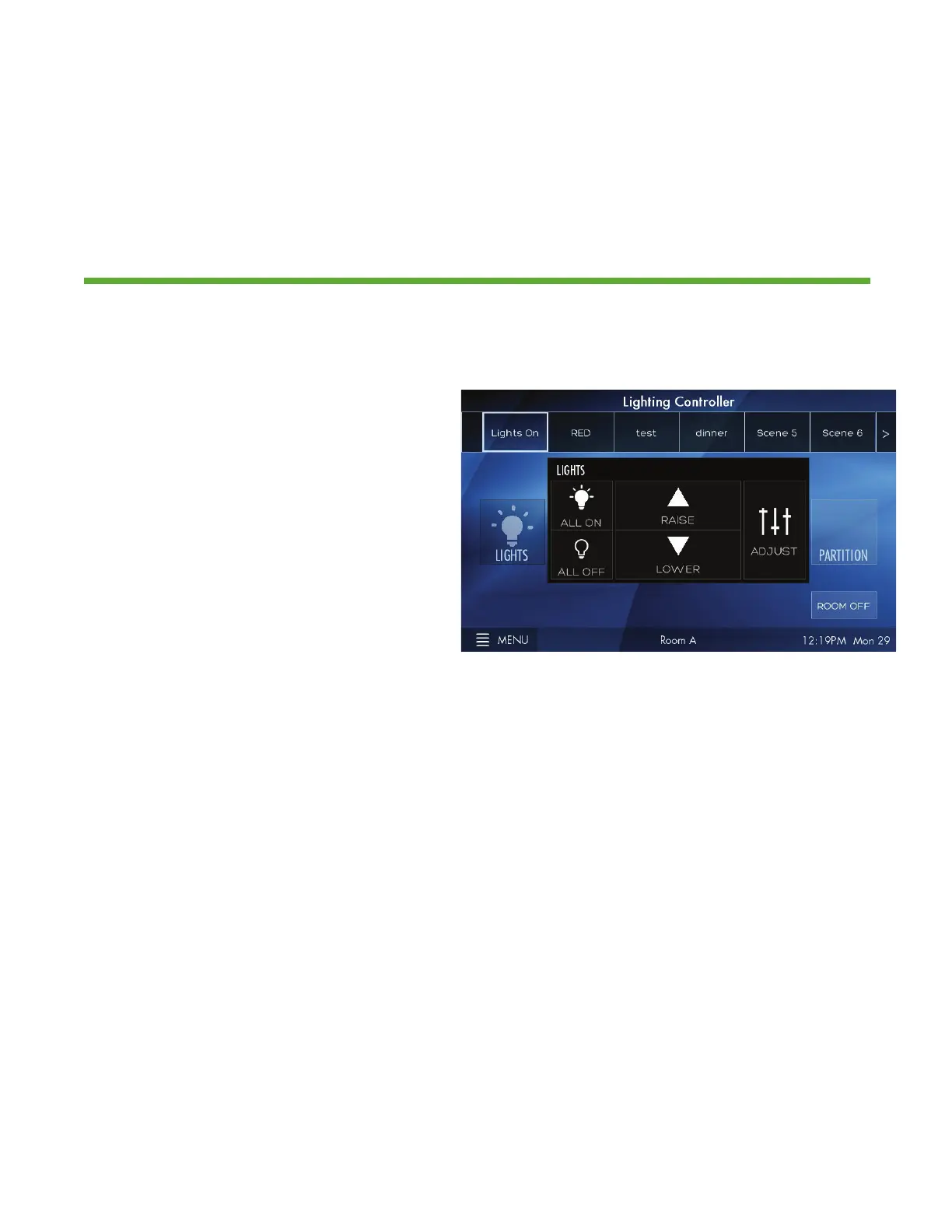

Home Screen
Overview
Turn room lighting on/off, activate scenes, master raise/lower lighting level,
access to lighting zones, menu access for system setup, and current date/time
1. Controller name is unique and
modified within MENU settings
2. Scrollable scene bar displays up to
6 programmable scenes per page.
Up to 36 scenes can be created per
fresco station
3. Master control room on/off state,
raise/lower current scene, and
access additional lighting zones
(MORE)
4. MENU accesses system setup
5. Date/Time displayed and setup
within MENU
