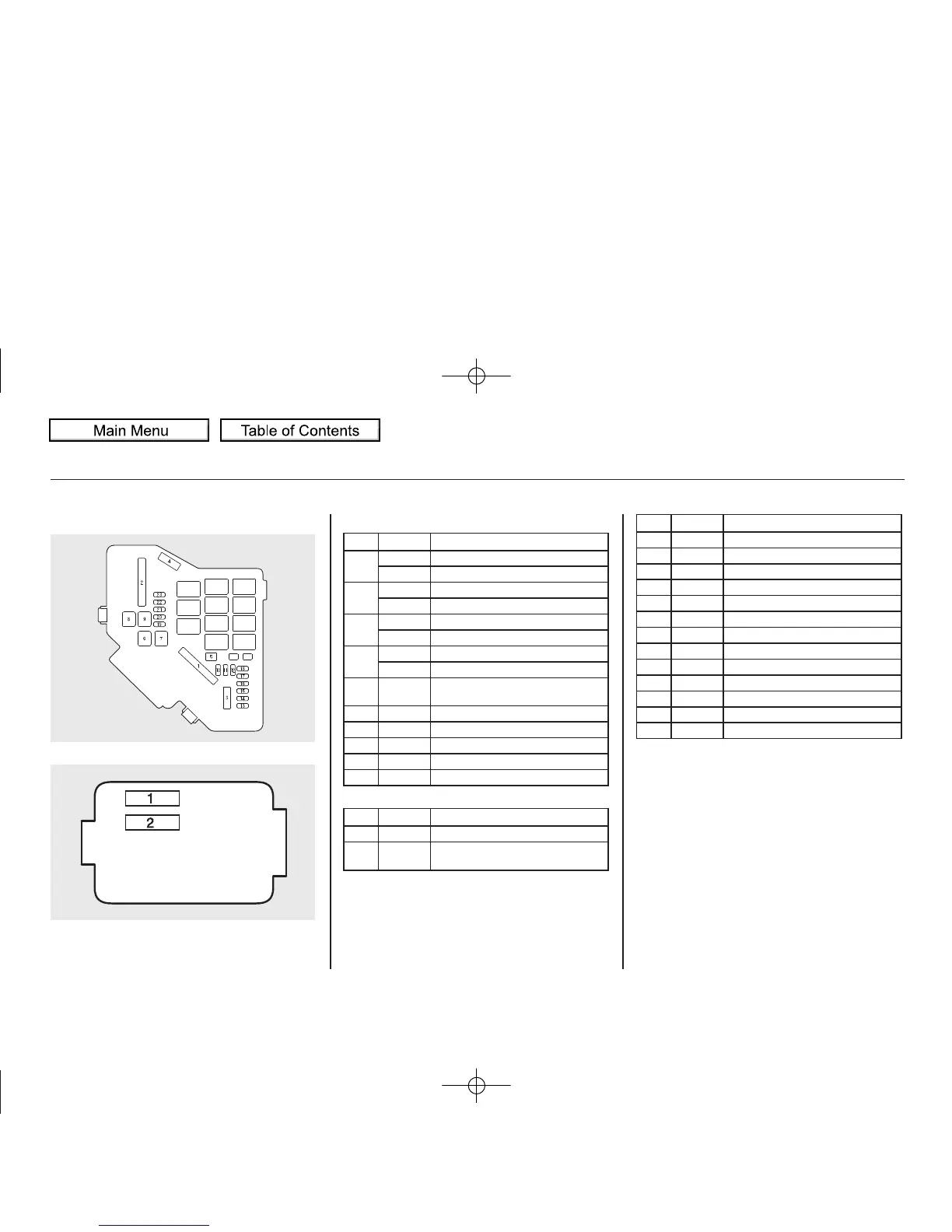

UNDER-HOOD FUSE BOXES PRIMARY
SECONDARY
Primary Fuse Box
No. Amps.
Circuits Protected
1 100 A Main Fuse
30 A SH-AWD
ê§
2 80 A Option Main
50 A Ignition Switch Main
3 40 A ABS/VSA Motor
20 A ABS/VSA Fail Safe
4 50 A Headlight Main
40 A Power Window Main
5 30 A Passenger's Power Seat
Reclining
6 30 A Main Fan Motor
7 30 A Sub Fan Motor
8 30 A Rear Defogger
9 40 A Blower
10 15 A Hazard
Secondary Fuse Box
No. Amps.
Circuits Protected
1 7.5 A Electric Vacuum Pump
2 20 A Passenger's Power seat
Reclining
No. Amps. Circuits Protected
11 15 A LAF
12 15 A Stop & Horn
13 20 A Driver's Power Seat Reclining
14 20 A Driver's Power Seat Sliding
15 7.5 A IGPS Oil Level
16 20 A Passenger's Power Seat Sliding
17 15 A Electric Vacuum Pump
18 15 A IG Coil
19 15 A FI Main
20 7.5 A MG Clutch
21 15 A DBW
22 7.5 A Interior Light
23 10 A Back Up
ê§: On SH-AWD models only
Fuse Locations
