Acura 2011 RDX User Manual

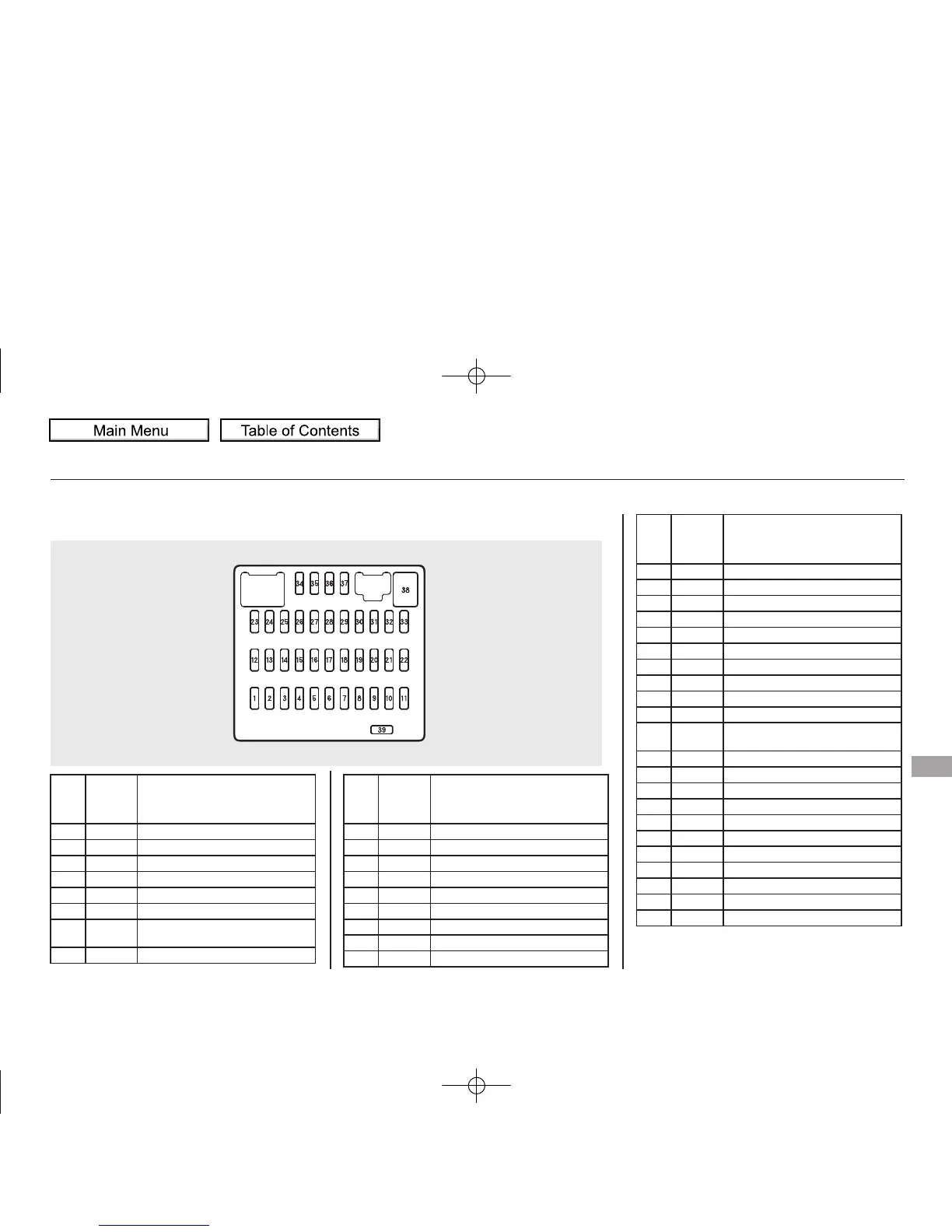

INTERIOR FUSE BOX
No. Amps.
Circuits Protected
1 7.5 A Power Window/SH-AWD
ꭧ
2 20 A Fuel Pump
3 15 A ACG
4 7.5 A ABS/VSA
5 15 A Heated Seat
6 20 A FR Fog Lights
7 7.5 A Driver's Power Seat Lumbar
Support
8 10 A RR Wiper
No. Amps.
Circuits Protected
9 7.5 A OPDS
10 7.5 A Meter
11 10 A SRS
12 10 A Right Headlight High
13 10 A Left Headlight High
14 7.5 A Small Lights (Interior)
15 15 A Small Lights (Exterior)
16 15 A Right Headlight Low
17 15 A Left Headlight Low
No. Amps.
Circuits Protected
18 20 A Headlight High Main
19 20 A Small Lights Main
20 7.5 A TPMS
21 30 A Headlight Low Main
22 － Not Used
23 7.5 A Starter Diagnosis
24 20 A Moonroof
25 20 A Door Lock
26 20 A Driver's Power Window
27 － Not Used
28 15 A Accessory Socket (Console
Compartment)
29 15 A Accessory Socket (Front)
30 20 A Passenger's Power Window
31 20 A Radio Amplifier
32 20 A Right Rear Power Window
33 20 A Left Rear Power Window
34 － Not Used
35 7.5 A Radio
36 10 A HAC
37 7.5 A Daytime Running Light
38 30 A FR Wiper
39 7.5 A STS
ꭧ: SH-AWD models only
CONTINUED
Fuse Locations
473
Taking Care of the Unexpected
