Acura 2016 TLX Owner's Guide

108 | | 109
HANDLING THE UNEXPECTEDHANDLING THE UNEXPECTED

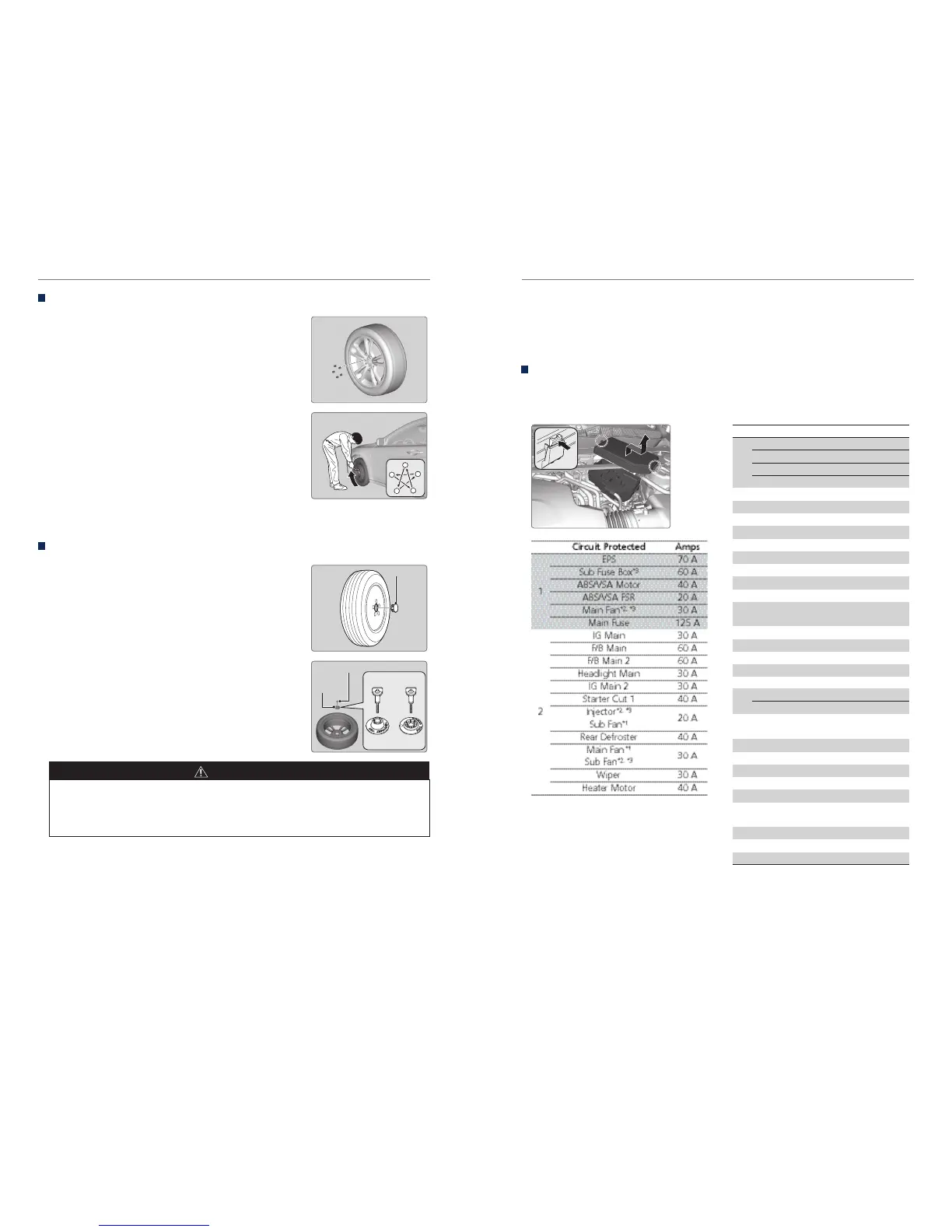

Replacing the Flat Tire
1. Remove the wheel nuts and flat tire.
2. Mount the compact spare tire. Replace the
wheel nuts, and lightly tighten them.
3. Lower the vehicle and remove the jack. Tighten
the wheel nuts in the order indicated in the
image. Go around, tightening the nuts, two to
three times in this order. Do not over tighten the
wheel nuts.
Storing the Flat Tire
1. Remove the center cap, and place the flat tire
face down in the spare tire well.
2. Remove the spacer cone from the wing bolt, flip
it over, and insert it back on to the bolt. Secure
the flat tire with the wing bolt.
3. Return the jack and wheel nut wrench to the
tool case. Store the case in the trunk, and close
the trunk.
Loose items can fly around the interior in a crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely before driving.
WARNING
Wing bolt
Spacer
cone
Center cap
Fuse Locations
If any electrical devices are not working, turn off the vehicle and check to see if any
applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the
fuse by the fuse number and box cover number.
Engine Compartment Fuse Boxes
Type A
Located near the brake fluid reservoir. Push the tabs to open the box.
*1: 4-cylinder models
*2: 6-cylinder models with 2WD
*3: 6-cylinder models with AWD
3
Headlight Washer
*2, *3
(30 A)
Left Electric Parking Brake 30 A
Right Electric Parking Brake 30 A
SH-AWD
*3
4− −
5 − −
6− −
7 − −
8STRLD
*1, *2
7.5 A
9 Interior Lights
*1, *2
5 A
10 Headlight Low/High Main 20 A
11 Oil Level 7.5 A
12 Front Fog Lights
*
(7.5 A)
13
Passenger’s Power Seat
Reclining
20 A
14 Hazard 15 A
15 IGP2 15 A
16 IG Coil 15 A
17 Stop
*1, *2
10 A
Circuit Protected Amps
20 A
*if equipped
*1:
4-cylinder models
*2:
6-cylinder models with 2WD
*3: 6-cylinder models with AWD
Circuit Protected Amps
18 Horn 10 A
19
Audio
*1, *2
20 A
Interior Light
*3
5 A
20
ACM
*2
20 A
Injector
*1
21 FI Main 15 A
22 DBW 15 A
23 TCU/SBW
*2, *3
10 A
24 Premium AMP 30 A
25 MG Clutch 7.5 A
26
Passenger’s Power Seat
Sliding
20 A
27 Small
*1, *2
15 A
28 BMS 7.5 A
29 Back Up 10 A
