Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.

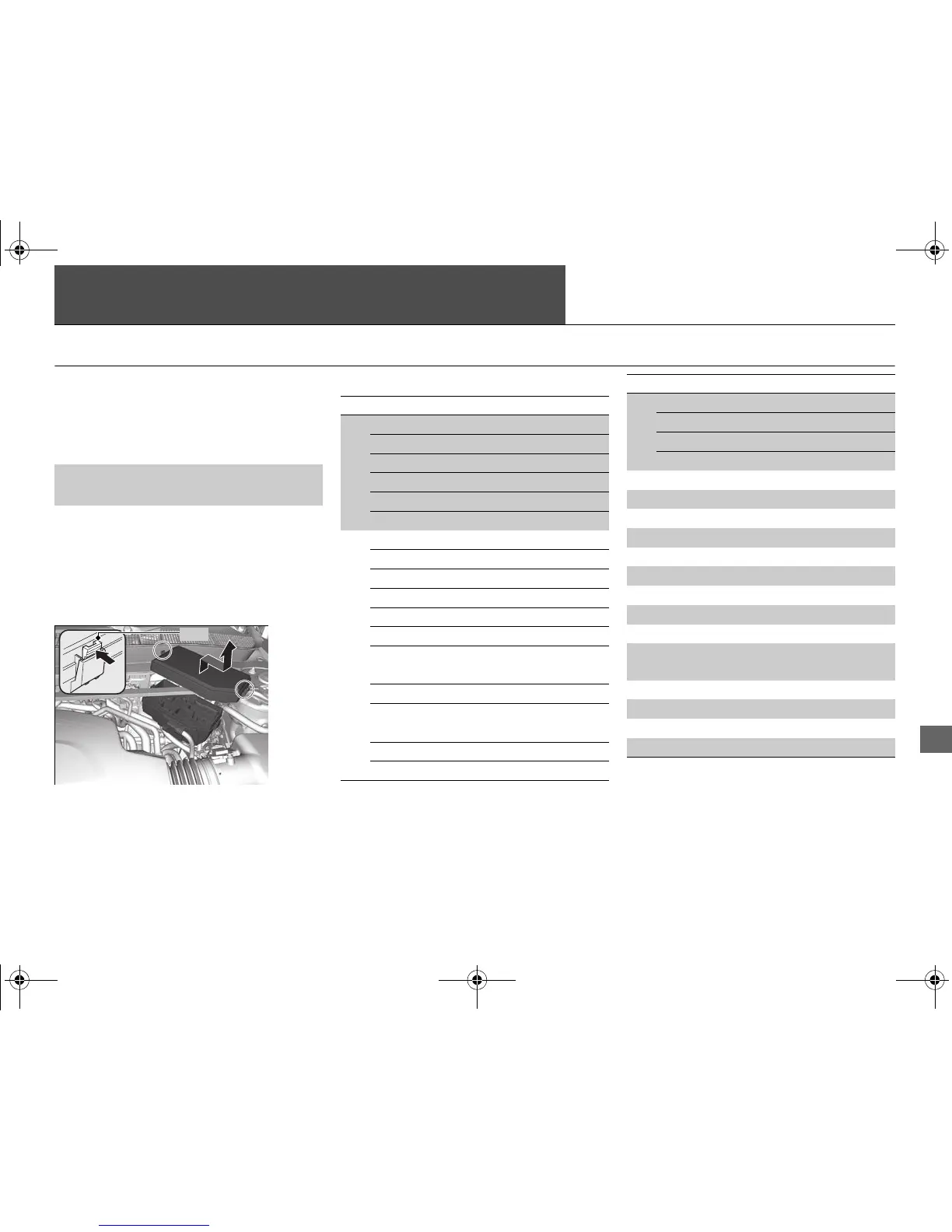

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■
Engine Compartment Fuse
Box Type A
■ Circuit protected and fuse rating
Circuit Protected Amps
1
EPS 70 A
Sub Fuse Box
*3
60 A
ABS/VSA Motor 40 A
ABS/VSA FSR 20 A
Main Fan
*2, *3
30 A
Main Fuse 125 A
2
IG Main 30 A
F/B Main 60 A
F/B Main 2 60 A
Headlight Main 30 A
IG Main 2 30 A
Starter Cut 1 40 A
Injector
*2, *3
20 A
Sub Fan
*1
Rear Defroster 40 A
Main Fan
*1
30 A
Sub Fan
*2, *3
Wiper 30 A
Heater Motor 40 A
*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD
3
Headlight Washer
*2, *3
(30 A)
Left Electric Parking Brake 30 A
Right Electric Parking Brake 30 A
SH-AWD
*3
20 A
4− −
5 − −
6− −
7 − −
8 STRLD
*1, *2
7.5 A
9 Interior Lights
*1, *2
5 A
10 Headlight Low/High Main 20 A
11 Oil Level 7.5 A
12 Front Fog Lights
*
(7.5 A)
13
Passenger’s Power Seat
Reclining
20 A
14 Hazard 15 A
15 IGP2 15 A
16 IG Coil 15 A
17 Stop
*1, *2
10 A
Circuit Protected Amps
