cabinet, resulting in more complex and "darker" tone. The MicnoCAB offers eight types of
open/sealed enclosures.

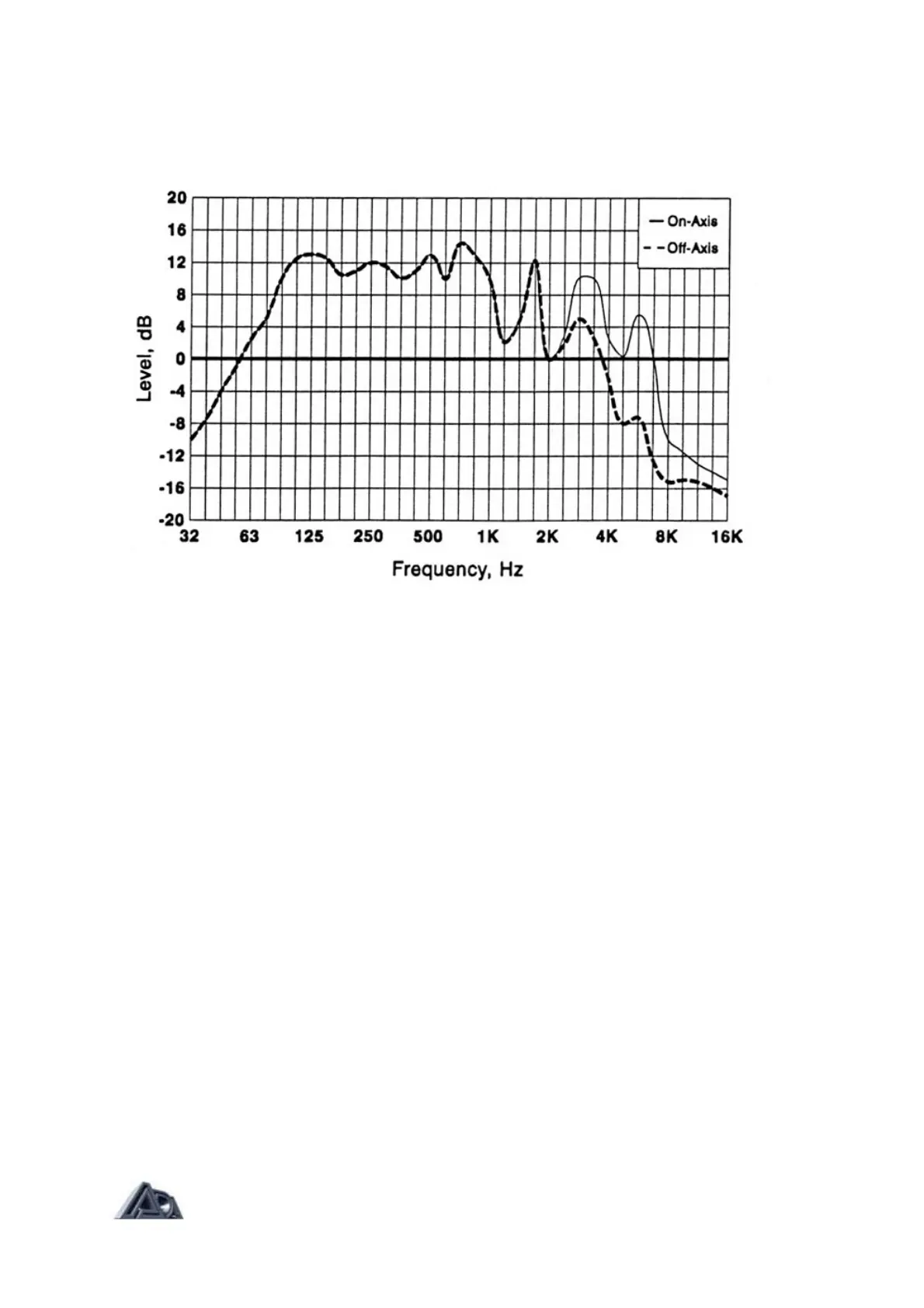

GRAPH C 4x12 Sealed Cabinet Off-Axis/On-Axis Miking
This graph compares on-axis (solid line) vs. off-axis (dashed line) response characteristics in
a close-miked 4 x 12 sealed cabinet. Note lower off-axis response above 2 KHz, resulting in
less "brightness." This response difference can be emulated in the MICROCAB by adjusting
the HI BALANCE tone control.
SPECIFICATIONS
Dimensions: 1 rack unit x 5" deep
Width 19"
Depth 5"
Height 1-3/4"
Weight: 2.5 Ibs. / 4.5 Ibs., shipping
Maximum Input: +20dBV
Maximum Output: +19dBm
Input Impedance: 50k ohms
Power Consumption: 4 Watts - External A.C adapter 117 VAC/60 Hz
220 VAC / 50 Hz optional
100 VAC 50/60 Hz optional .
ADA Part Number 701071 version 1.0
Page 9 of 9

Ada MICROCAB I Specifications

Power

maximum input	+20 dBV
maximum output	+19 dBm
power consumption	4 Watts
external A.C adapter	117 VAC/60 Hz
alternative power option 1	220 VAC / 50 Hz
alternative power option 2	100 VAC 50/60 Hz

Electrical Specifications

input impedance	50k ohms

Weight and Dimensions

width	19"
depth	5"
height	1-3/4"
weight	2.5 lbs
