cabinet, resulting in more complex and "darker" tone. The MlCROCAB II offers eight types of
open/sealed enclosures.

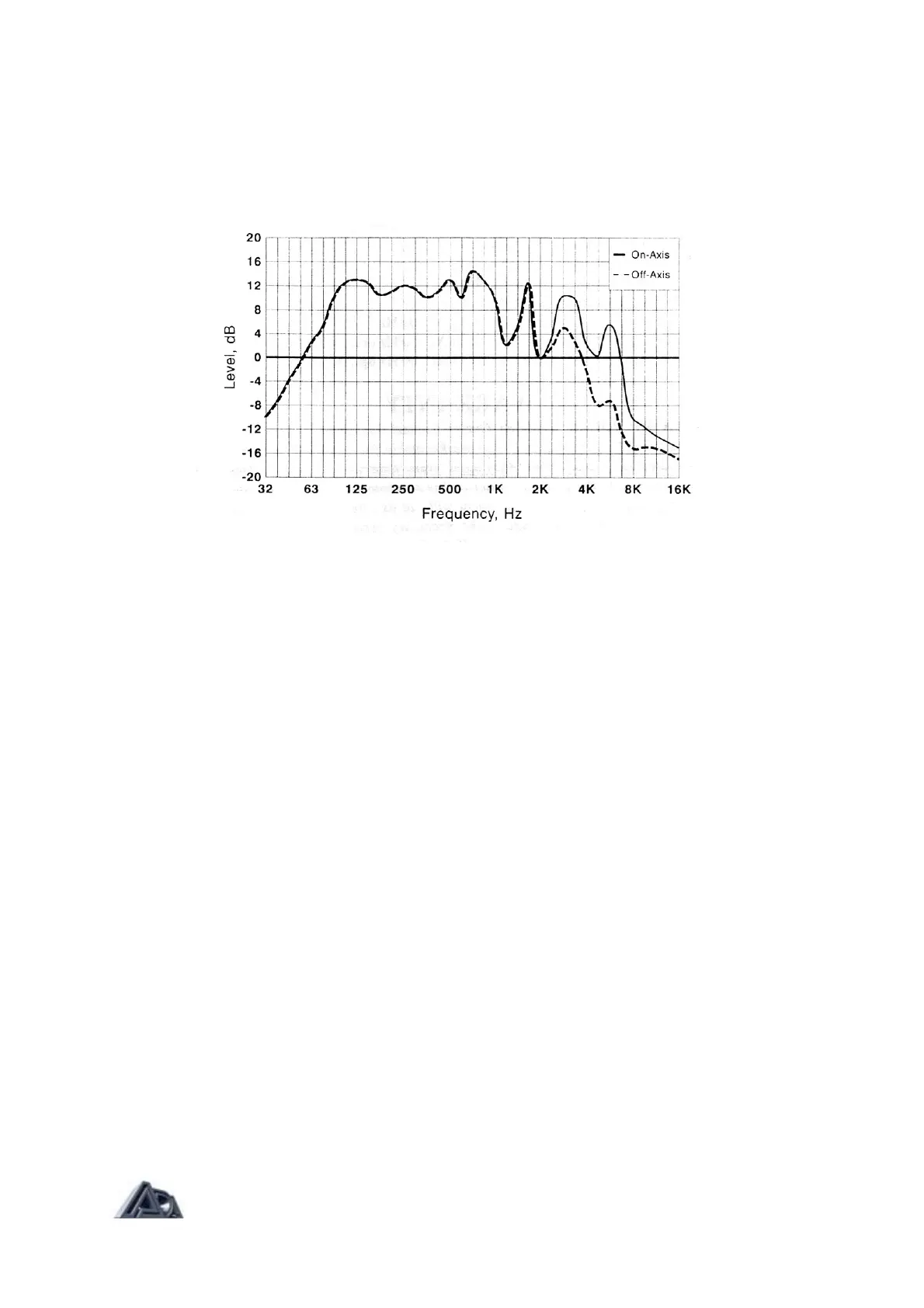

GRAPH C 4x12 / Sealed Cabinet / Off-Axis/On-Axis Miking
This graph compares on-axis (solid line) vs. off-axis (dashed line) response characteristics in
a close-miked 4x12 sealed cabinet. Note lower off-axis response above 2 kHz. resulting in
less "brightness." This response difference can be emulated in the MlCROCAB II by
adjusting the HI BALANCE tone control.
SPECIFICATIONS
Dimensions: 1 rack unit x 5" deep
Width 19"
Depth 5"
Height 1-3/4"
Weight: 2.5 Ibs., 4.5 Ibs., shipping
Maximum Input: +20 dBV
Maximum Output: +19 dBm
Input Impedance: 50k ohms
Power Consumption: 4 Watts,
117 VAC 60 Hz
220 VAC 50 Hz optional
100 VAC 60 Hz optional
