Adayo AN6Q24 - Main Unit Wiring Diagram

26
Device Connections

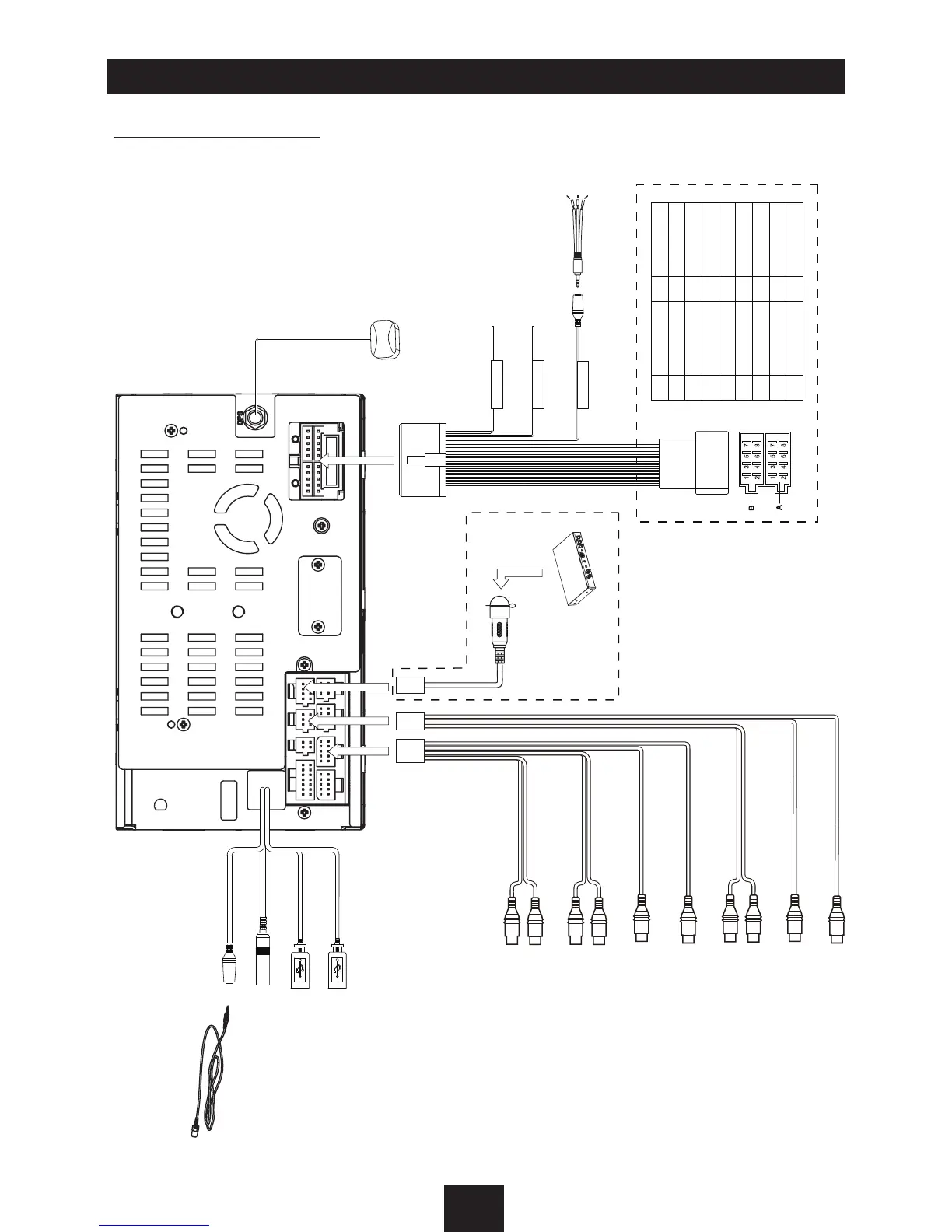

Wiring Diagram
Microphone
PIN PART A
1 NC 2 NC 3 NC 4
Battery +12V
5 P.ANT 6 Illumination 7
ACC
8 GND
PIN PART B
1 Rear R+ 2 Rear R- 3 Front R+ 4 Front R- 5 Front L+ 6 Front L- 7 Rear L+ 8 Rear L-
GPS ANTENNA
MICROPHONE
RADIO ANT
Black Black
Black
3G/WIFI 3G/WIFI
Black
Orange Pink
Black
PARKING
REVERSE
SWC
Key A
Key B
GND
DTV BUS
(optional)
Brown
(Sold separately)
TV BOX
AUX IN
Red
Red(R)
Blue
Yellow Yellow Yellow
White(L)
Red(R)
White(L)
Red(R)
White(L)
Green
White
FRONT OUT
Black
REAR OUT
Grey
VIDEO OUT
Black
VIDEO IN
Black
CAMERA VIDEO
Black
SUB WOOFER
Black
