ADB C 103 User Manual

Fresnel and PC lens Spotlights
1000, 1200 & 2000 W
Page 16
Issue 002
C 201 5° - 65° C 203 8° - 58°
5
10
15
20
10 20 30 40
200
400
600
800
21 3
Cd x 1000
Cd x 1000
Lux Ø (m) Lux Ø (m)
6 19444 0,5 500 7,6
7 14286 0,6 367 8,9
8 10938 0,7 281 10,2
10 7000 0,9 180 12,7
12 4861 1,0 125 15,3
14 3571 1,2 92 17,8
16 2734 1,4 70 20,4
18 2160 1,6 56 23,0

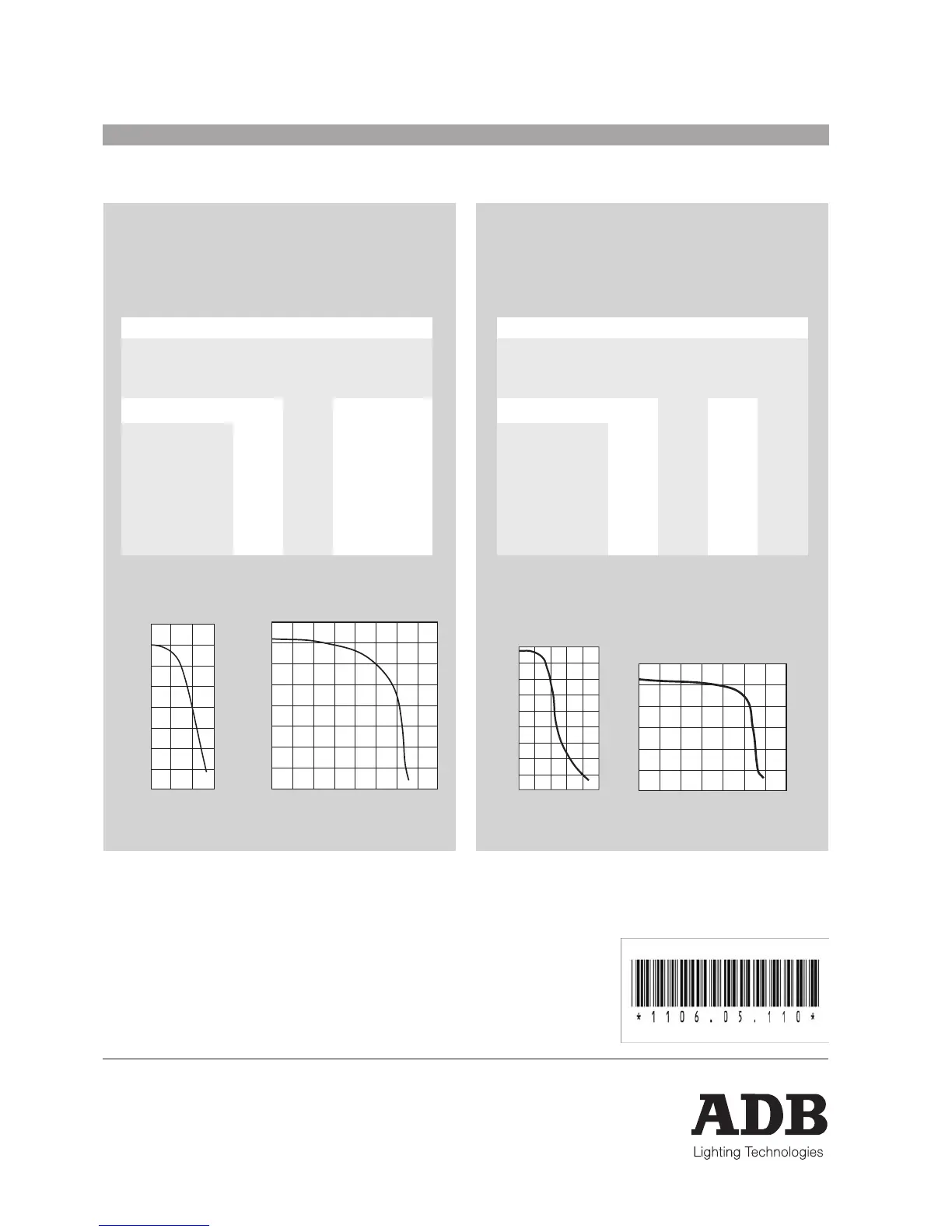

Photometric Data
Typical values measured without wiremesh
Lamp : 220V, 3200K, biplane, 2000W / 52000 lm
Light Levels (lux) and Field Ø(m)
Light Distribution (Half Beam)
Note
To convert Candelas into Lux, divide by the square of the distance (in m).
Min.Angle
Max.Angle
Min.Angle Max.Angle
Axial Intensity (Cd)
2000W 700000 18000
Angle 5° 65°
Distance (m)
2 41 3 5
100
200
300
400
8
16
24
10 20 30
Cd x 1000
Cd x 1000
Lux Ø (m) Lux Ø (m)
8 6875 0,6 325 8,2
10 4400 0,8 208 10,2
12 3056 0,9 144 12,2
14 2245 1,1 106 14,3
16 1719 1,3 81 16,3
18 1358 1,4 64 18,3
20 1100 1,6 52 20,4
22 909 1,7 43 22,4
Photometric Data
Typical values measured without wiremesh
Lamp : 220V, 3200K, biplane, 2000W / 52000 lm
Light Levels (lux) and Field Ø(m)
Light Distribution (Half Beam)
Note
To convert Candelas into Lux, divide by the square of the distance (in m).
Min.Angle
Max.Angle
Min.Angle Max.Angle
Axial intensity (Cd)
2000W 440000 20800
Angle 4,5° 54°
Distance (m)
