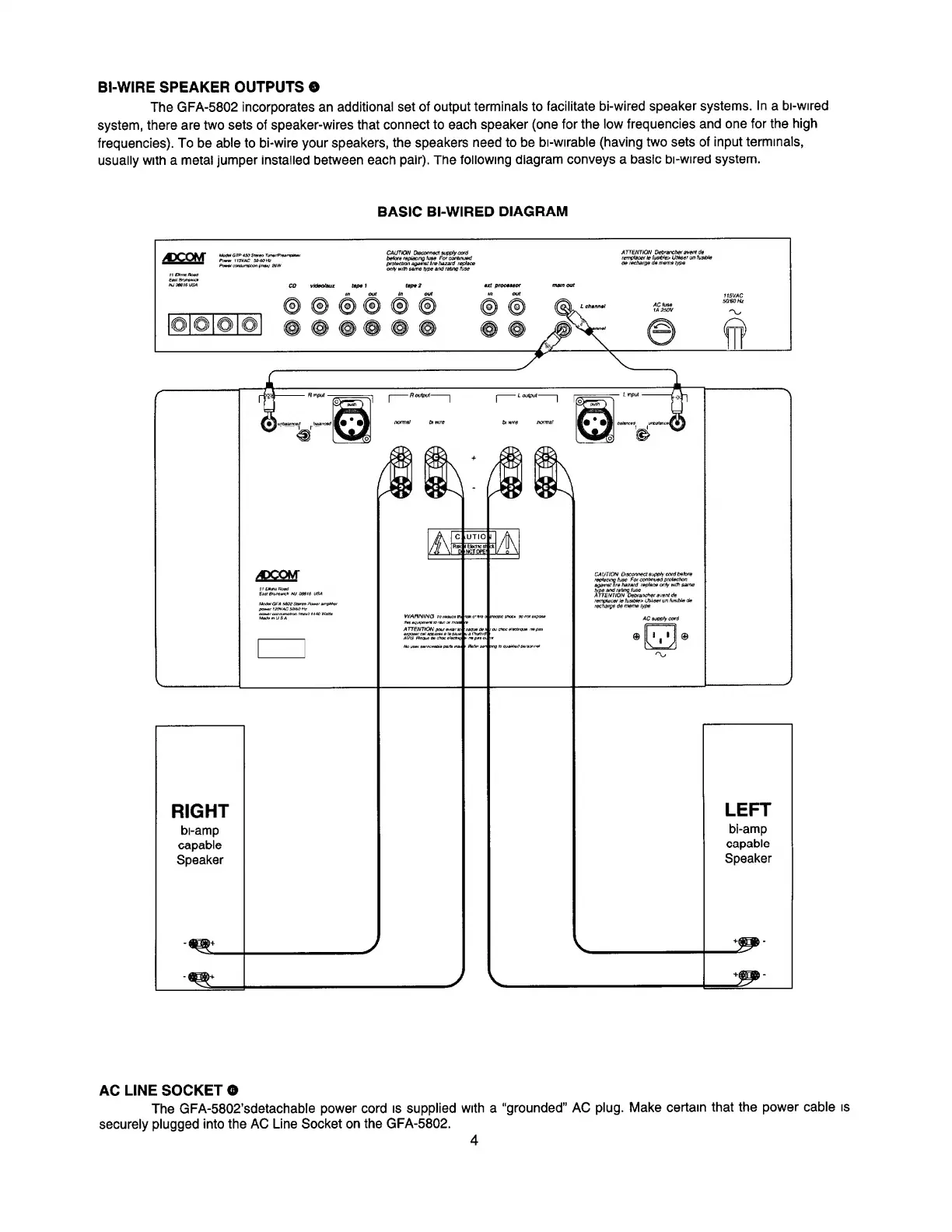

BI-WIRE
SPEAKER
OUTPUTS
O
The
GFA-5802
incorporates
an
additional
set
of
output
terminals
to
facilitate
bi-wired
speaker
systems.
In
a
bi-wired
system,
there
are
two
sets
of
speaker-wires
that
connect
to
each
speaker
(one
for
the
low
frequencies
and
one
for
the
high
frequencies).
To
be
able
to
bi-wire
your
speakers,
the
speakers
need
to
be
bi-wirable
(having
two
sets
of
input
terminals,
usually
with
a
metal
jumper
installed
between
each
pair).
The
following
diagram
conveys
a
basic
bi-wired
system.
BASIC
BI-WIRED
DIAGRAM
AC
LINE
SOCKET
O
The
GFA-5802’sdetachable
power
cord
is
supplied
with
a
“grounded”
AC
plug.
Make
certain
that
the
power
cable
securely
plugged
into
the
AC
Line
Socket
on
the
GFA-5802.
