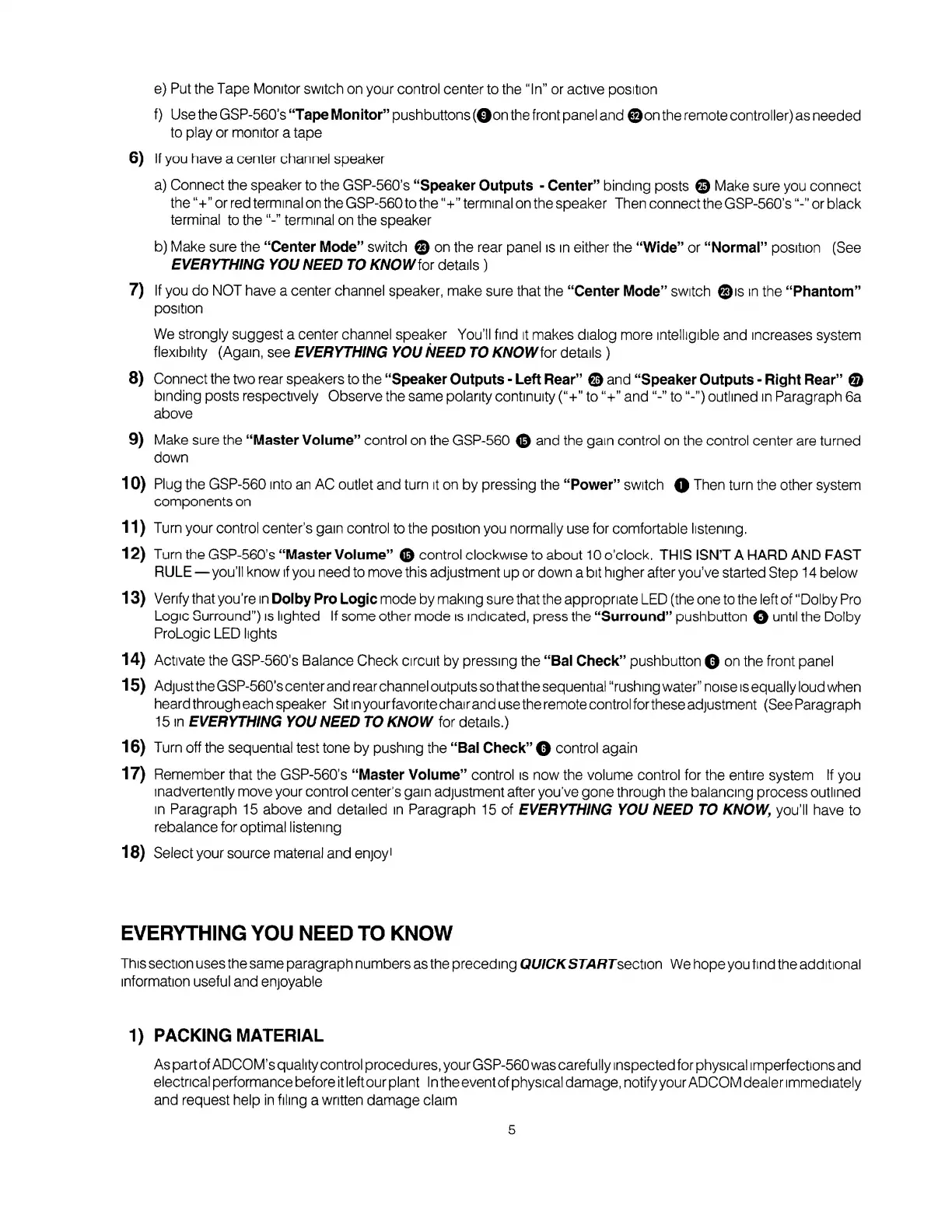

e) Put the Tape Monitor switch on your control center to the “In” or active position
f) Use the GSP-560’s “Tape Monitor” pushbuttons (©on the front panel and ©on the remote controller) as needed
to play or monitor a tape
6 ) If you have a center channel speaker
a) Connect the speaker to the GSP-560’s “Speaker Outputs - Center” binding posts © Make sure you connect
the “+” or red terminal on the GSP-560tothe"+” terminal on the speaker Then connect the GSP-560’s or black
terminal to the terminal on the speaker
b) Make sure the “Center Mode” switch © on the rear panel is in either the “Wide” or “Normal” position (See
EVERYTHING YOU NEED TO KNOW for details)
7) If you do NOT have a center channel speaker, make sure that the “Center Mode” switch ©is in the “Phantom”
position
We strongly suggest a center channel speaker You’ll find it makes dialog more intelligible and increases system
flexibility (Again, see EVERYTHING YOU NEED TO KNOWior details )
8) Connect the two rear speakers to the “Speaker Outputs - Left Rear” © and “Speaker Outputs - Right Rear” ©
binding posts respectively Observe the same polarity continuity (“+" to “+” and to outlined in Paragraph 6a
above
9) Make sure the “Master Volume” control on the GSP-560 © and the gain control on the control center are turned
down
10) Plug the GSP-560 into an AC outlet and turn it on by pressing the “Power” switch O Then turn the other system
components on
11) Turn your control center’s gain control to the position you normally use for comfortable listening.
12) Turn the GSP-560's “Master Volume” © control clockwise to about 10 o’clock. THIS ISN’T A HARD AND FAST
RULE—you’ll know if you need to move this adjustment up or down a bit higher after you’ve started Step 14 below
13) Verify that you’re in Dolby Pro Logic mode by making sure that the appropriate LED (the one to the left of “Dolby Pro
Logic Surround”) is lighted If some other mode is indicated, press the “Surround” pushbutton © until the Dolby
ProLogic LED lights
14) Activate the GSP-560’s Balance Check circuit by pressing the “Bal Check” pushbutton Q on the front panel
15) Adjustthe GSP-560’s center and rear channel outputs so thatthe sequential “rushing water” noise is equally loud when
heard through each speaker Sit in yourfavoritechairand use the remote control forthese adjustment (See Paragraph
15 in EVERYTHING YOU NEED TO KNOW for details.)
16) Turn off the sequential test tone by pushing the “Bal Check”© control again
17) Remember that the GSP-560’s “Master Volume” control is now the volume control for the entire system If you
inadvertently move your control center’s gain adjustment after you've gone through the balancing process outlined
in Paragraph 15 above and detailed in Paragraph 15 of EVERYTHING YOU NEED TO KNOW, you’ll have to
rebalance for optimal listening
18) Select your source material and enjoy 1
EVERYTHING YOU NEED TO KNOW
This section uses thesame paragraph numbersas the preceding QUICK STARTsechon We hope you find the additional
information useful and enjoyable
1) PACKING MATERIAL
As part of ADCOM’s quality control procedures, your GSP-560 was carefully inspected for physical imperfections and
electrical performance before it leftour plant In the event of physical damage, notify your ADCOM dealer immediately
and request help in filing a written damage claim
5
