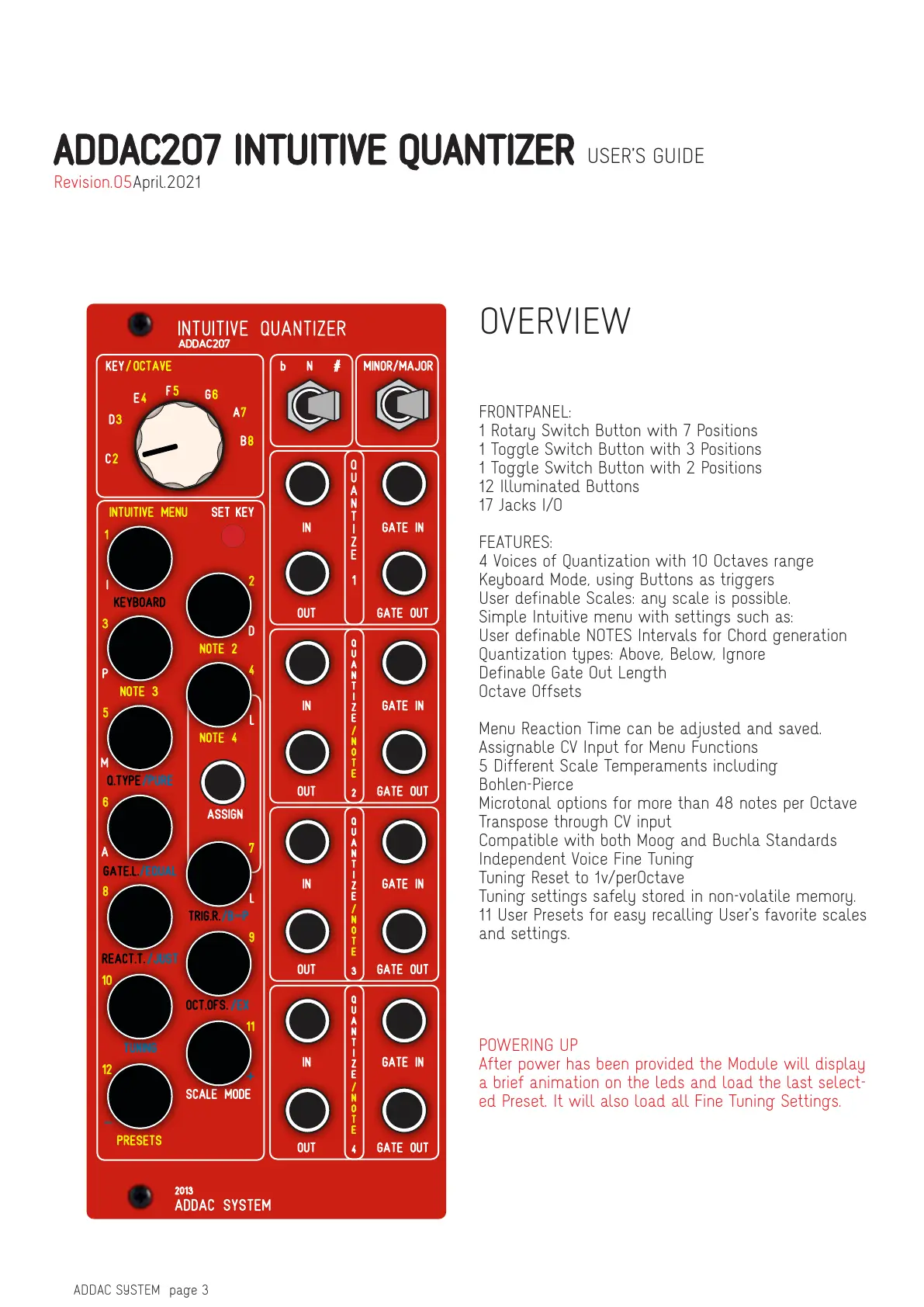

ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE
page 3ADDAC SYSTEM
OVERVIEW
FRONTPANEL:
1 Rotary Switch Button with 7 Positions
1 Toggle Switch Button with 3 Positions
1 Toggle Switch Button with 2 Positions
12 Illuminated Buttons
17 Jacks I/O
FEATURES:
4 Voices of Quantization with 10 Octaves range
Keyboard Mode, using Buttons as triggers
User definable Scales: any scale is possible.
Simple Intuitive menu with settings such as:
User definable NOTES Intervals for Chord generation
Quantization types: Above, Below, Ignore
Definable Gate Out Length
Octave Offsets
Menu Reaction Time can be adjusted and saved.
Assignable CV Input for Menu Functions
5 Different Scale Temperaments including
Bohlen-Pierce
Microtonal options for more than 48 notes per Octave
Transpose through CV input
Compatible with both Moog and Buchla Standards
Independent Voice Fine Tuning
Tuning Reset to 1v/perOctave
Tuning settings safely stored in non-volatile memory.
11 User Presets for easy recalling User’s favorite scales
and settings.
POWERING UP
After power has been provided the Module will display
a brief animation on the leds and load the last select-
ed Preset. It will also load all Fine Tuning Settings.
April.2021Revision.05
