2.4 Pump body
① Remove the release valve needle manually, and use an 8 mm wrench to unscrew the release valve base. Then, remove the drain
valve, as shown in picture 2.4.1.
No.
2
3
4
5
6
7
Ording No.
1220113042
1650700037
1220115002
1611300054
1220115001
1611300173
1611300024
1220115036
Name
Release valve needle
Release valve handle
Release valve base
O-ring
Upper cover
Rubber gasket
O-ring
Drain valve
Quantity
1
1
1
1
1
1
1
1
④ Please exchange all the damaged parts, and reassemble the parts in reverse order.
⑤ Isolation valve piston parts list.
7. Drain valve
6
1.Release valve needle
2. Release valve base
6
3
4. Upper cover
5

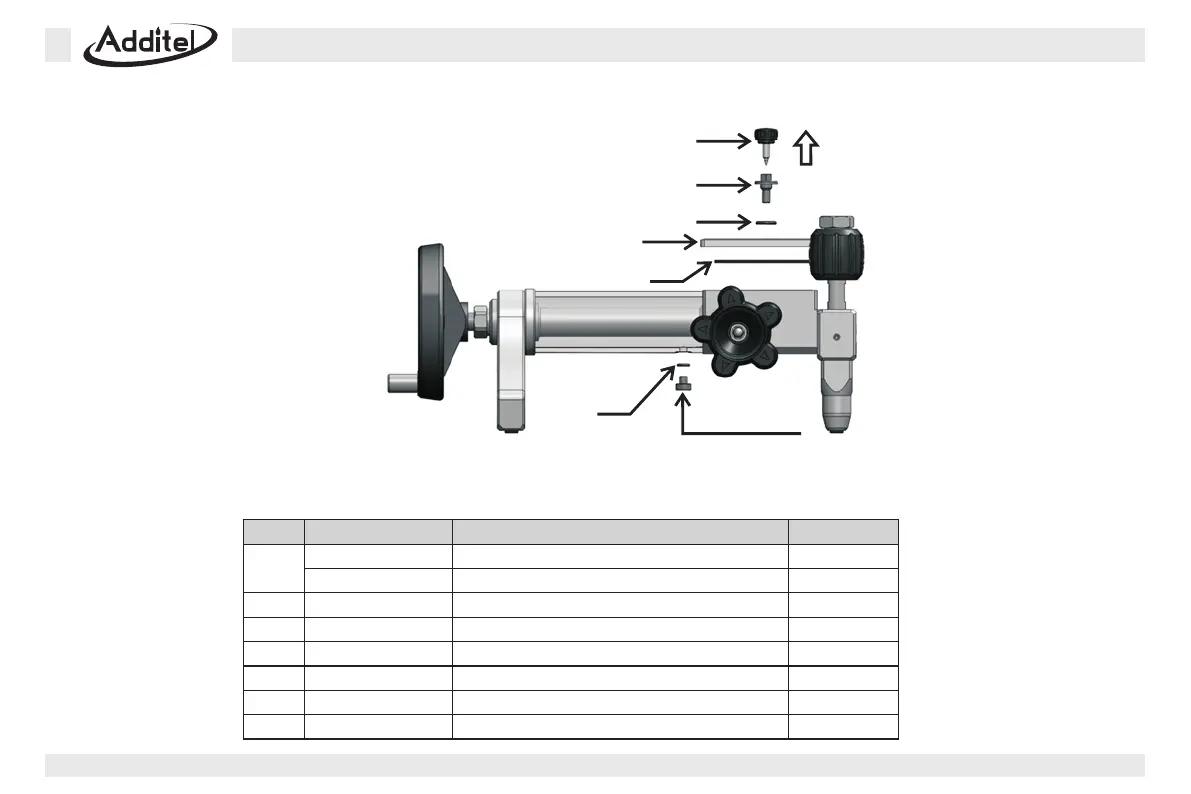

Picture 2.4.1
1
