ADF LINEA 100 - Fan and Ventilation Systems

24
Fan

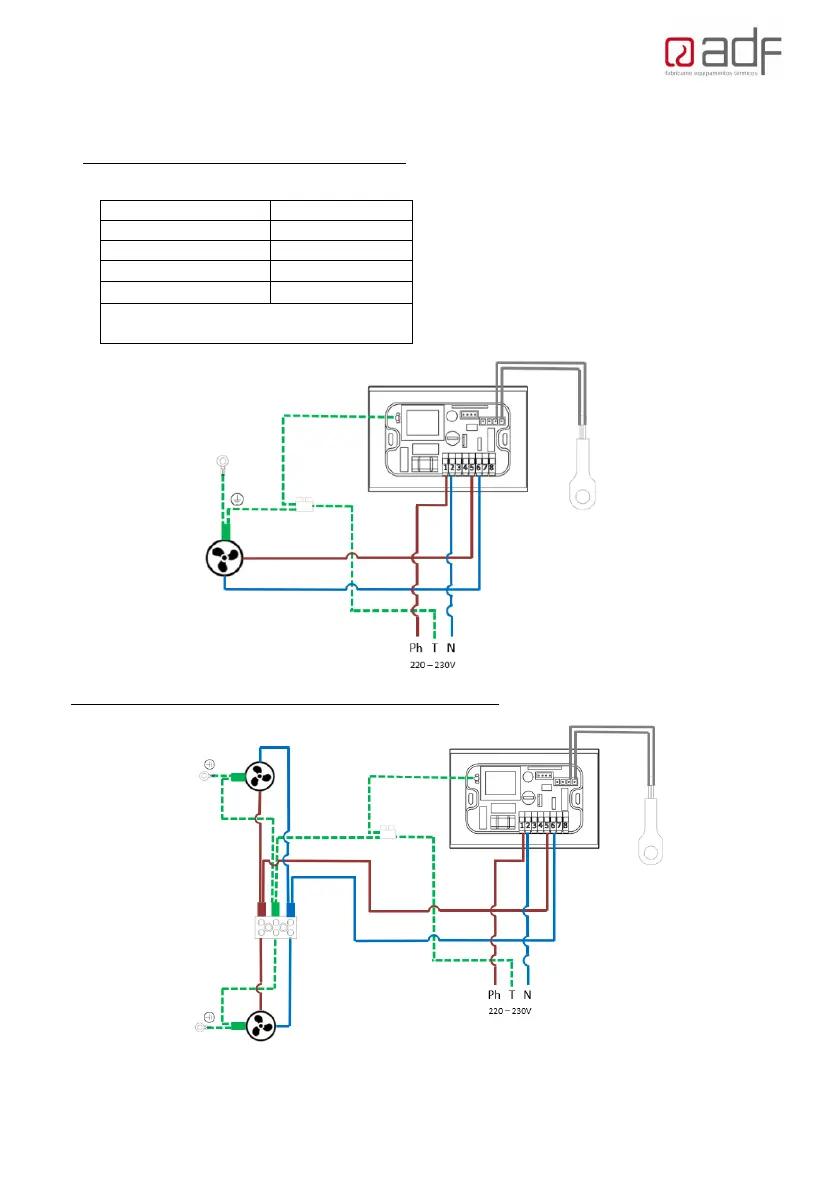

Ventilation Diagram with controller (insert)
Ventilation Diagram with controller (insert, double sided)
Note: The controller should be installed in an airy location away from hot areas; the distances to
combustible materials must be met. P.8
Supply
230 Vca ± 10% 50Hz
Consumption:
2 VA (controller only)
Probe:
NTC 100K
Motor max power:
150 Watt
Max working temperature
40ºC
Note: Read instructions manual included in the
Controller box
