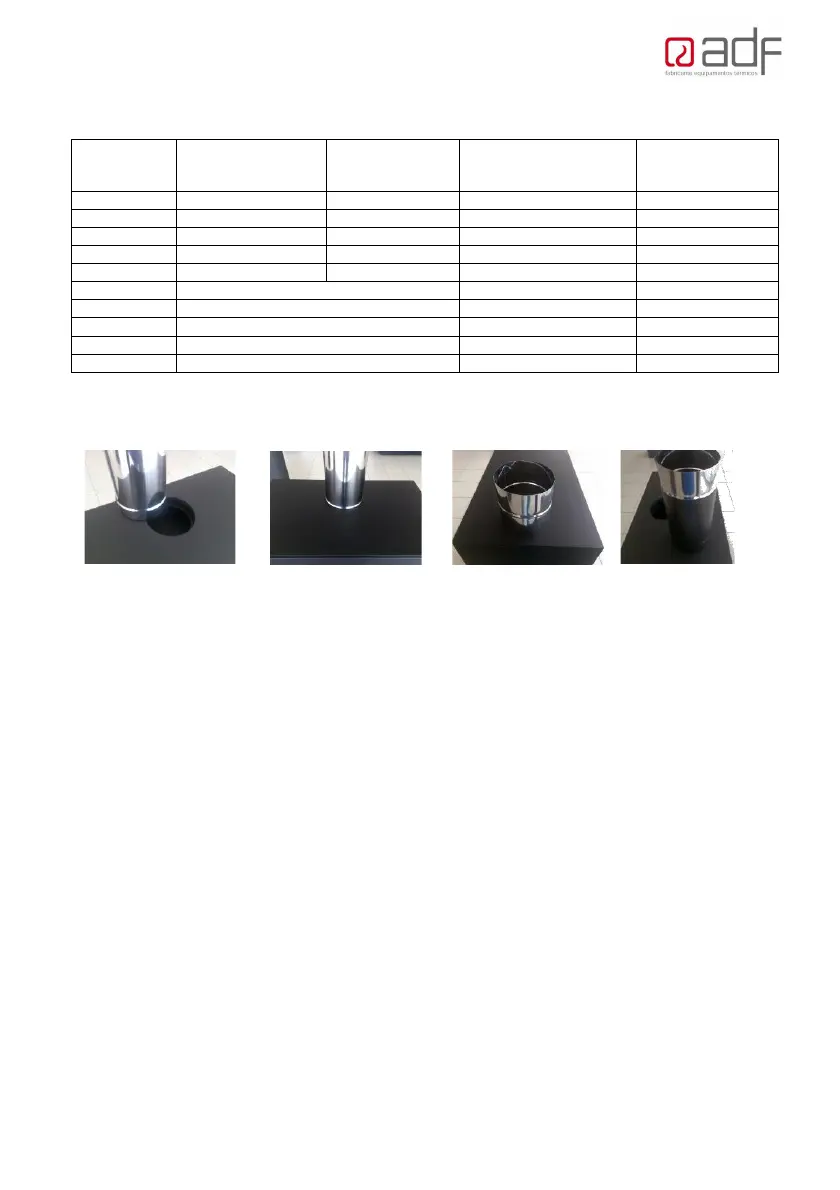

Dimensions (Width x Height x Depth in mm):
Model/version
Dimensions
Dimensions w/
fans
Minimum dimensions for
fitting to non-combustible
materials
Minimum mounting
dimensions with
fans
RC 70
692 x 465 x 450
692 x 565 x 450
702 x 470 x 480
702 x 565 x 480
RC 85
832 x 465 x 450
832 x 565 x 450
842 x 470 x 480
842 x 565 x 480
RC 100
1012 x 465 x 450
1012 x 565 x 450
1022 x 470 x 480
1022 x 565 x 480
RC 85 DUO
832 x 465 x 550
832 x 565 x 550
842 x 470 x 560
842 x 565 x 560
RC 100 DUO
1012 x 465 x 550
1012 x 565 x 550
1022 x 470 x 560
1022 x 565 x 560
SL 70
692 x 865* x 450
-
-
SL 85
832 x 865* x 450
-
-
SL 100
1012 x 865* x 450
-
-
SL 85 DUO
832 x 865* x 550
-
-
SL 100 DUO
1012 x 865* x 550
-
-
* Height with bottom compartment / Pedestal
Anti-condensation system
1. Attach smaller diameter (male) end of the tubing into the hole in the equipment and at the other end will have
larger diameter (female)
2. If you want to fit installation accessories (eg hat) using larger diameter (female) use union to convert diameter
Some important Standards :
• EN 13384-1:2015 Chimneys. Thermal and fluid dynamic calculation methods. Chimneys serving one heating
appliance
• EN 1857:2003+A1:2008 - Chimneys. Components. Concrete flue liners
• EN 1457-1:2012 Chimneys. Clay/ceramic flue liners. Flue liners operating under dry conditions. Requirements and
test methods
• EN 1457-2:2012 Chimneys. Clay/ceramic flue liners. Flue liners operating under wet conditions. Requirements and
test methods
• EN 1806:2006 Chimneys Clay/ceramic flue blocks for single wall chimneys Requirements and test methods
• EN 13069:2005 Chimneys. Clay/ceramic outer walls for system chimneys. Requirements and test methods
• EN 13063-1:2005 Chimneys. System chimneys with clay/ceramic flue liners. Requirements and test methods for
sootfire resistance
• EN 12446:2011 Chimneys. Components. Concrete outer wall elements
• EN 1443:2003 Chimneys. General requirements
• EN 1856-1:2009 Chimneys. Requirements for metal chimneys. System chimney products
• EN 1856-2:2009 Chimneys. Requirements for metal chimneys. Metal flue liners and connecting flue pipes;
