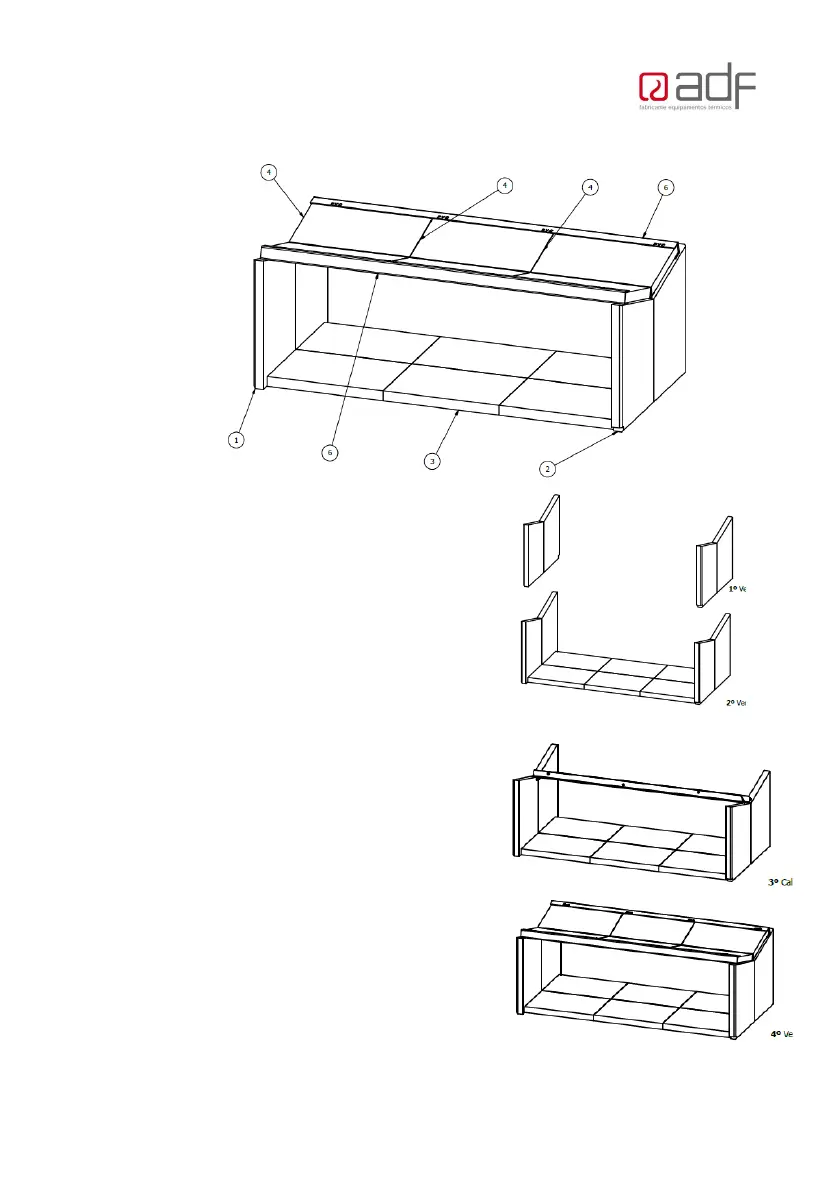

6- Installing the bricks and baffles
1. First insert the side (1 and 2) and base
bricks (3) – may be factory assembled.
2. Stainless-steel baffle support bars – lay
the central one across the middle on the
side bricks, and the outer “C” channel
support bars (6) front and back. Begin
with the side baffle bricks, resting on the
side bricks, then insert the middle brick
and lock all three in positon by trapping
the front edge of the brick in the “C”
Channel. Bring the side baffle bricks in to
close any gaps. Repeat on the other side.
