ADF LINEA 820 NMV ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/8/23
4

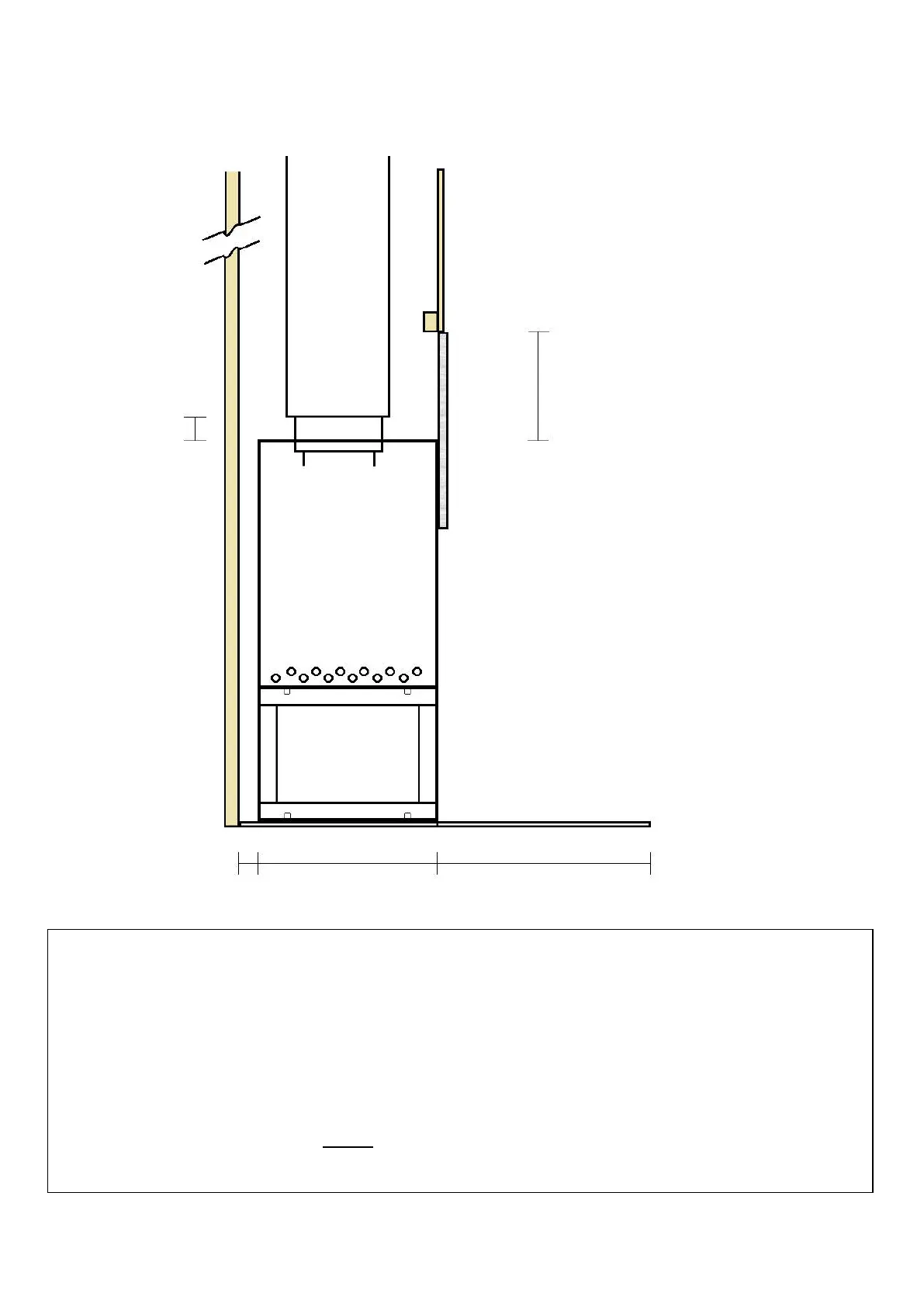

Dimensions for Build out (side Elevation):
• Note Rear Clearance is 50mm to combustibles.
• 6mm cement sheet is required beneath the heater 550mm deep, and 300mm in
front.
• Heat Non-combustible board will sit in front of the Zero Clearance box. Matching to
a different material may need to be packed out from the timber studs.
For any Mantle on front wall, must be to the 3.4.1.3(b) of AS/NZS 2918:2018 – ie
1000mm above the heater for combustible material.
