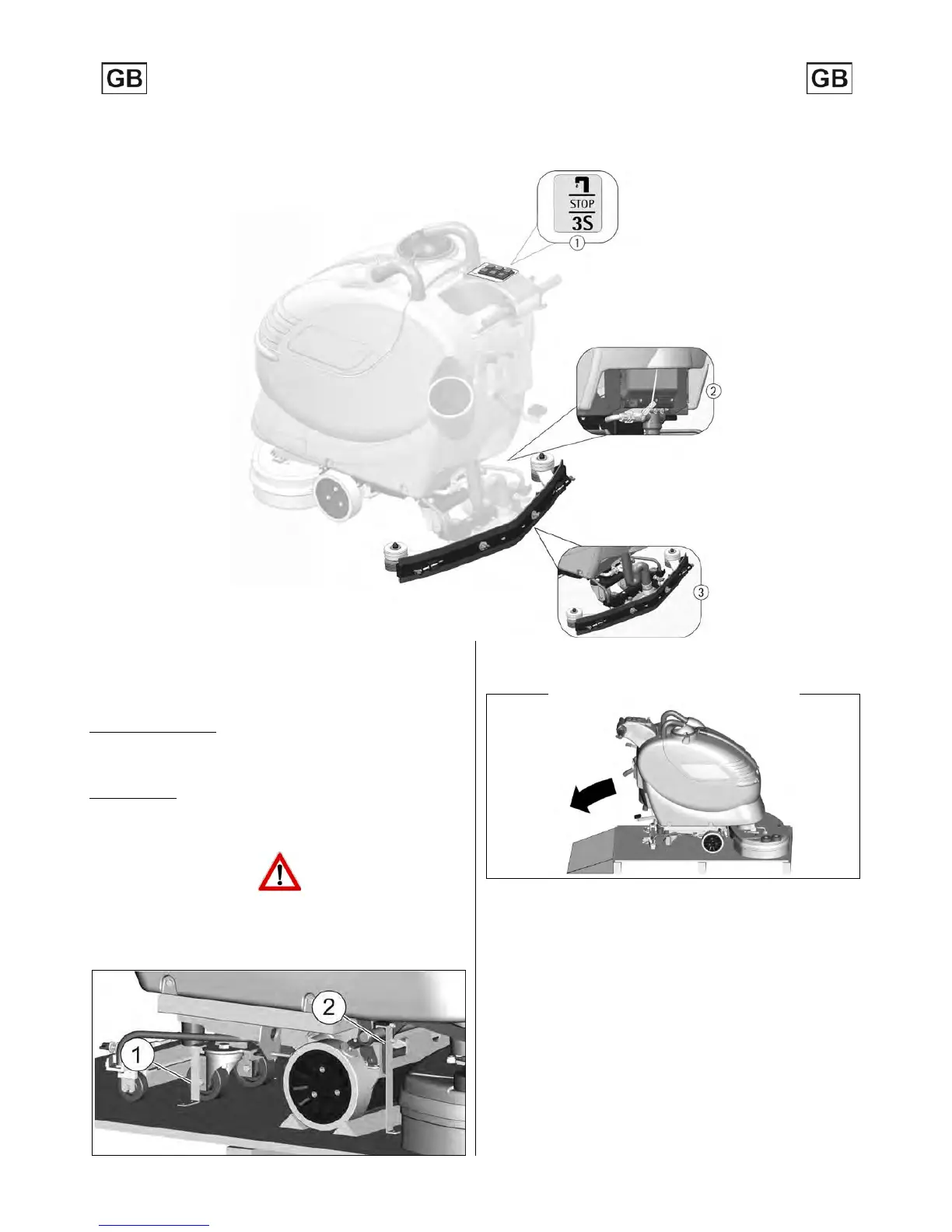

The optional accessories are:
3S – Solution Saving System (1);
Incorporated battery charger (2);
Squeegee “V”-type (3).
HANDLING OF THE PACKED MACHINE
The machine is supplied with suitable packing foreseen for fork lift
truck handling.
brushes base 50 and 55: the total weight is 122kg (269 lbs.).
The Packing dimensions are:
Base: 138 cm x 67 cm (54"x26")
Height: 119 cm (47")
brushes base 66: the total weight is 136kg (300 lbs.).
The Packing dimensions are:
Base: 140 cm x 75 cm (55"x30")
Height: 120 cm (48")
Do not place more than 2 packings on top of each other.
UNPACKING OF THE MACHINE
1. Remove the external packing.
2. Unscrew the brackets (1+2) that secure the machine to the pallet.
3. Provide for an inclined base.
Move the machine backwards, as indicated in the figure, avoiding
heavy contacts to mechanical parts.
5. Keep the pallet and the brackets for eventual transport.
BATTERY INSTALLATION
The machine is equipped either with batteries in serial connection or
type assembled together and connected in series,
placed in its appropriate compartment under the recovery tank and
must be handled using suitable lifting equ
considering the type of batteries chosen, and coupling system).
The batteries must be in accordance with CEI 21-5 Norms.
For batteries installation proceed as follows:
1. Take off the squeegee hose (1).
2. Take off the suction cover (2) after turning the blocking levers (3).
