Focus Spot Two 18 Channel Mode
Channel Value Function
1 0 - 255 PAN MOVEMENT 0° - 630°
2 0 - 255 PAN FINE 0% - 100%
3 0 - 255 TILT MOVEMENT 0° - 230°
4 0 - 255 TILT FINE 0% - 100%
5 COLOR
0 - 14 WHITE
15 - 29 RED
30 - 44 BLUE
45 - 59 GREEN
60 - 74 YELLOW
75 - 89 PINK
90 - 104 LIGHT BLUE
105 - 119 LIGHT GREEN
120 - 127 LIGHT YELLOW
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 193 STOP
194 - 255 COUNTER-CLOCKWISE ROTATION
SLOW - FAST
6 GOBOS
0 - 9 OPEN
10 - 19 GOBO 1
20 - 29 GOBO 2
30 - 39 GOBO 3
40 - 49 GOBO 4
50 - 59 GOBO 5
60 - 63 GOBO 6
64 - 73 OPEN SHAKE
74 - 82 GOBO 1 SHAKE
83 - 91 GOBO 2 SHAKE
92 - 100 GOBO 3 SHAKE
101 - 109 GOBO 4 SHAKE
110 - 118 GOBO 5 SHAKE
119 - 127 GOBO 6 SHAKE
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 193 STOP
194 - 255 COUNTER-CLOCKWISE ROTATION
SLOW - FAST
Focus Spot Two 16 Channel Mode
Channel Value Function
12 SHOW
0 OFF
1 - 21 SHOW 1
22 - 41 SHOW 2
42 - 61 SHOW 3
62 - 81 SHOW 4
82 - 255 SHOW 0 (RANDOM SHOW)
13 0 - 255 SHOW SPEED FAST - SLOW
14 DIMMER MODES
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT TO UNIT
15 0 - 255 PAN/TILT SPEED FAST - SLOW
16 FUNCTION
0 - 69 NOTHING
70 - 79 BLACKOUT WITH PAN/TILT
80 - 89 NOTHING
90 - 99 BLACKOUT WITH COLOR CHANGE
100 - 109 NOTHING
110 - 119 BLACKOUT WITH GOBO CHANGE
120 - 129 NOTHING
130 - 139 ENABLE SPLIT COLORS
140 - 209 RESET ALL
210 - 249 NOTHING
250 - 255 SOUND ACTIVE

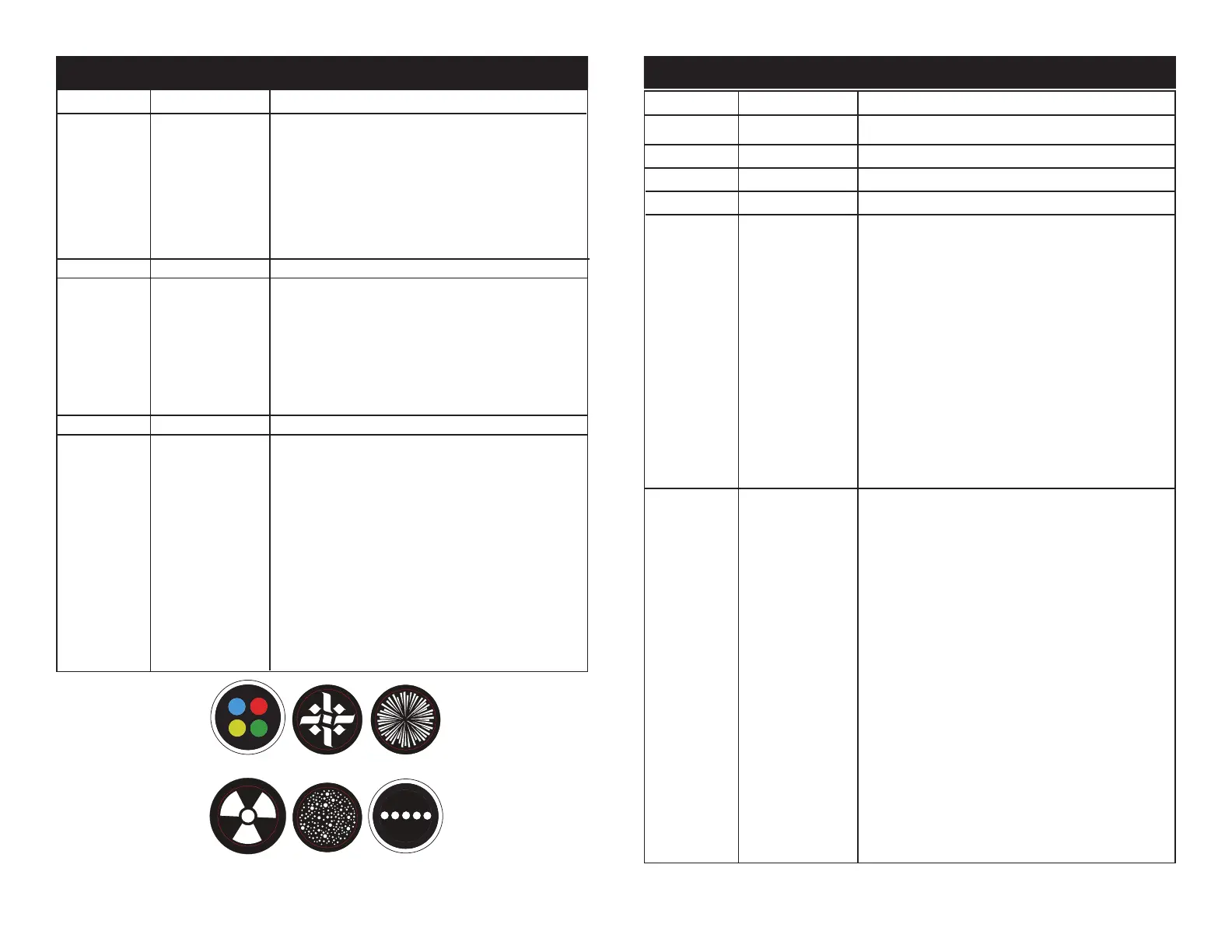

GOBO 1 GOBO 2 GOBO 3
GOBO 4 GOBO 5 GOBO 6
