Adkins Beta Swift - Exploded Diagram and Parts List

Page 14

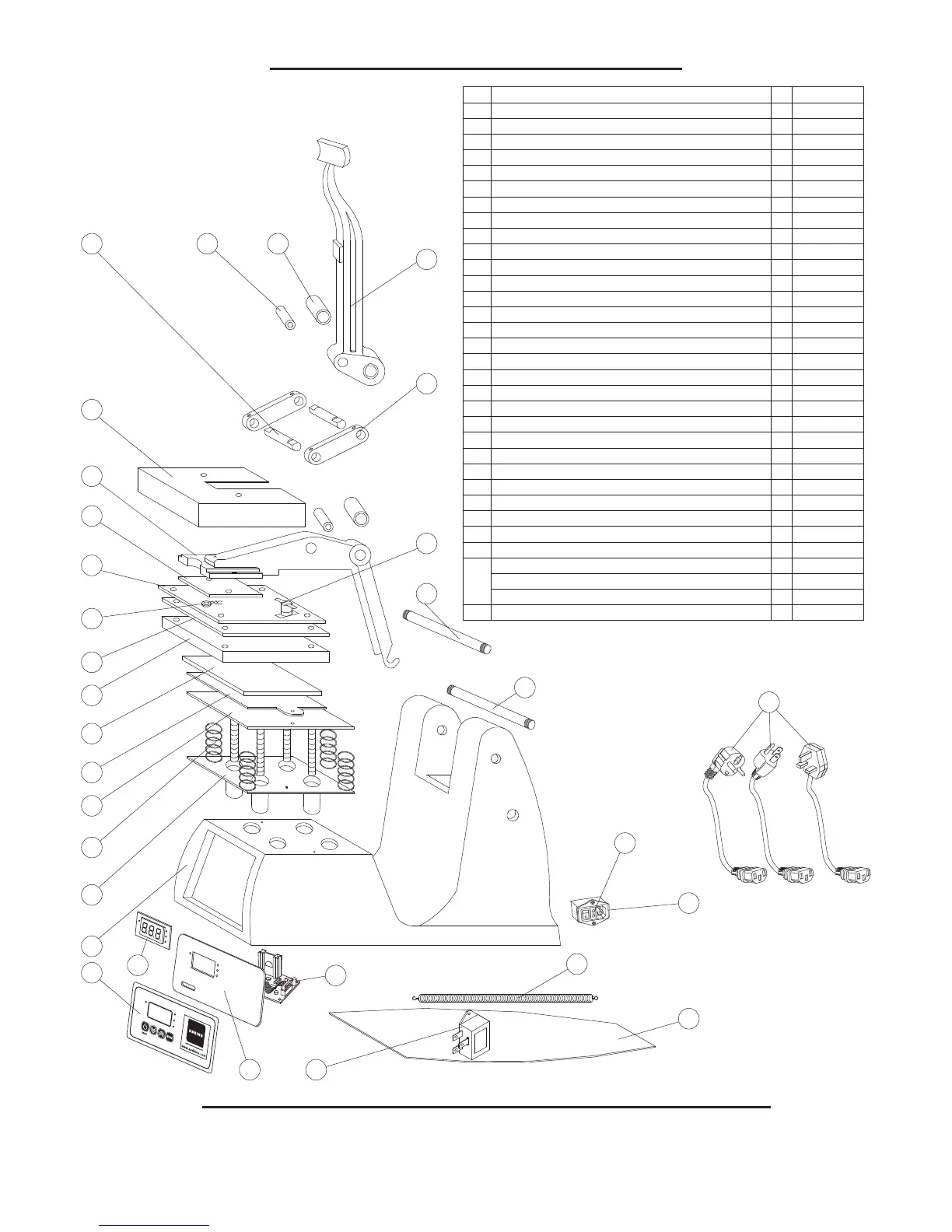

5.3 Exploded Diagram and Parts List
6
7
8
9
1
2931
28
27
2
3
4
5
101112
13
14
15
16
17
18
10
20
21
22
23
24
25
26
ACT
ACT
TEMP
TEMP
SET
SET
TIME
TIME
ITEM DESCRIPTION QU. PIN No.
1 20 mm FUSE (3.15 A) 1 SWC51
2 BASE BOARD 1 SWC32
3 COMBINED MAINS/FUSE/SWITCH 1 SWC36
4 SPRING 1 SWC24
5 LEVER HANDLE PIN 1 SWC7B/NEW
6 LEVER HANDLE PIN 1 SWC7A/NEW
7 THERMAL CUTOUT 1 BM338
8 TOGGLE PLATE 2 SWC9/NEW
9 HANDLE 1 SWC3
10 LEVER/HANDLE BUSH 3 cm (1.25 in) 2 SWC5
11 TOGGLE BUSHE 2.2 cm (0.875 in) 2 SWC6
12 TOGGLE PIN 2 SWC8/NEW
13
INSULATION COVER 15.5 (6.125) x 11.7 (4.625) x 5.7 cm (2.25 in) 1 SWC4
14 LEVER 1 SWC2
15 HEAT PLATE GASKET 1 SWC11
16 CLAMP PLATE 13.3 (5.25) x 9.5 (3.75) x 1.27 (0.5 in) 1 SWC13
17 TYPE 'K' THERMO COUPLE 1 FP3057
18 ELEMENT 240V x 500W 1 SWC14
19 HEAT PLATE 13.3 (5.25) x 9.5 (3.75) x 1.27 (0.5 in) 1 SWC12
20 SILICON PRESSURE PAD 1 SWC21
21 SILICON PRESSURE PAD PLATE 1 SWC22
22 PRESSURE PLATE + STUDS 1 SWC18
23 SPRING 1 SWC20
24 PRESSURE PLATE BASE 1 SWC16
25 BODY 1 SWC1
26 OVERLAY FACIA 1 SWC101
27 POWER BOARD 1
BMC322/B
28 FRONT BOARD 1 BMC322/A
29 MAINS INLET FILTER 1 AMC348
30 MAINS LEAD AND PLUG 230 V (UK) 1 BMC618
MAINS LEAD AND PLUG 120 V (USA) 1
BMC618/A
MAINS LEAD AND PLUG 230 V (EU) 1 BMC620
31 FASCIA PLATE 1 SWC102
USA UK
EU
30
