ADS ET-AF-3 - Detergent and Sanitizer Dispensing

9

CopyrightADSInstallationManualModelET‐AF‐PDH,Revision3.1,5/25/2017


CHEMICALFEEDERPUMPS

  

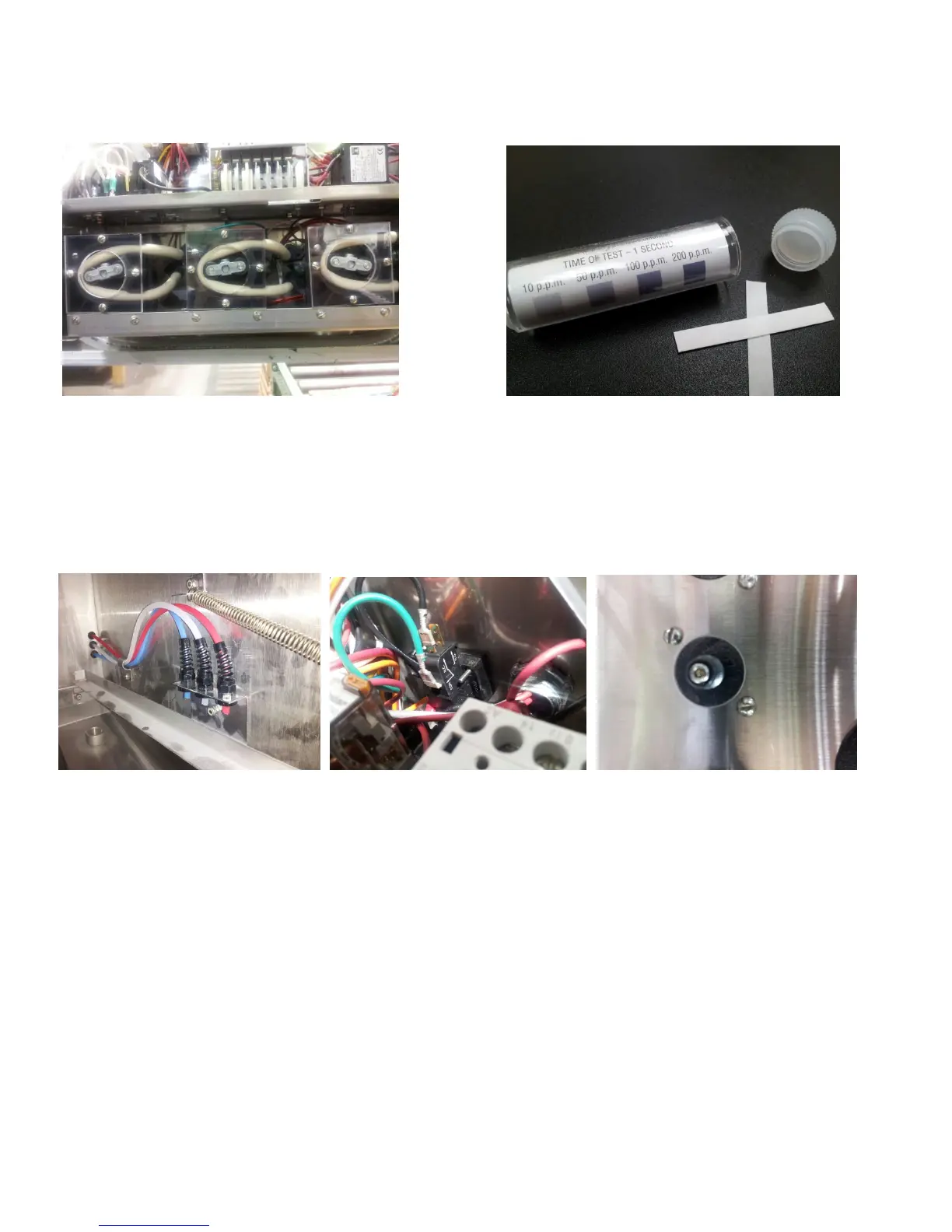

Showingdeter,rinse,sanitizerinternalchemicalpumpsChlorineteststripsformeasuringsanitizer
ADSprovidesthree(3)peristalticpumpstodispenseliquidchemicals
Chemicalfeedlinesarecolorcoded“Red”Detergent,“Green”Sanitizer,“Blue”Rinse‐aid
Pick‐uptubesareprovidedforchemicalproductcontainers
Sanitizer(chlorine)concentrationsshouldbesetat50partspermillion 
Inspectthetransfertubingforanycutsorholes,keepthemprotectedandsecuredoutoftheway

  
ShowingchemicallinesabovesumpOptionalChemicalAlarmswitchChemicalalarmbarbadjustingscrew*


TYPEOFCHEMICALS—Useonlycommercialgradelow‐energychemicals.Forproperoperation,usenon‐
foamingdetergentsandbufferedsanitizer.Donotwashgold,pewter,silver,orsilver‐platewithchlorine
basedsanitizers.Highconcentrationsofchlorinesanitizersandcausticdetergentswillcausedamagetometals
andwelds.Donotexceed50
parts‐per‐million(PPM)“free”oravailablechlorine.Anysettinghigherthan50
ppmwillbedependentonlocalhealthrequirements,however,theincreasedchlorinewillresultinhigher
corrosionofmetalparts.Purpose‐builtware‐washingdispensersareneededtoproperlymeterchemicalsfor
washandrinse.Thesedispensersareincludedwiththismodel.Manuallyaddingindustrialchemicalstothe
dishmachineisunsafeandnotapproved.

CHEMICALLINES—Placecolorcodedtubesintoproperchemicalcontainers.Thecontainersneedtobeas
closetothemachineaspossibleandatfloorlevel.Thismayrequireshorteningoftheflexiblechemical
transfertubes.Onthesideofthecontrolboxdoor,therearechemicalprimeswitches.Thereisadecal
identifyingeachswitch.Toprimechemicals,usethesemomentaryprimeswitches,verifyingthatallthree
pumpsrotate.Ifachemicalpumpsqueezetubehastakenaset(notallowingthepumptoturn),manuallyfree
