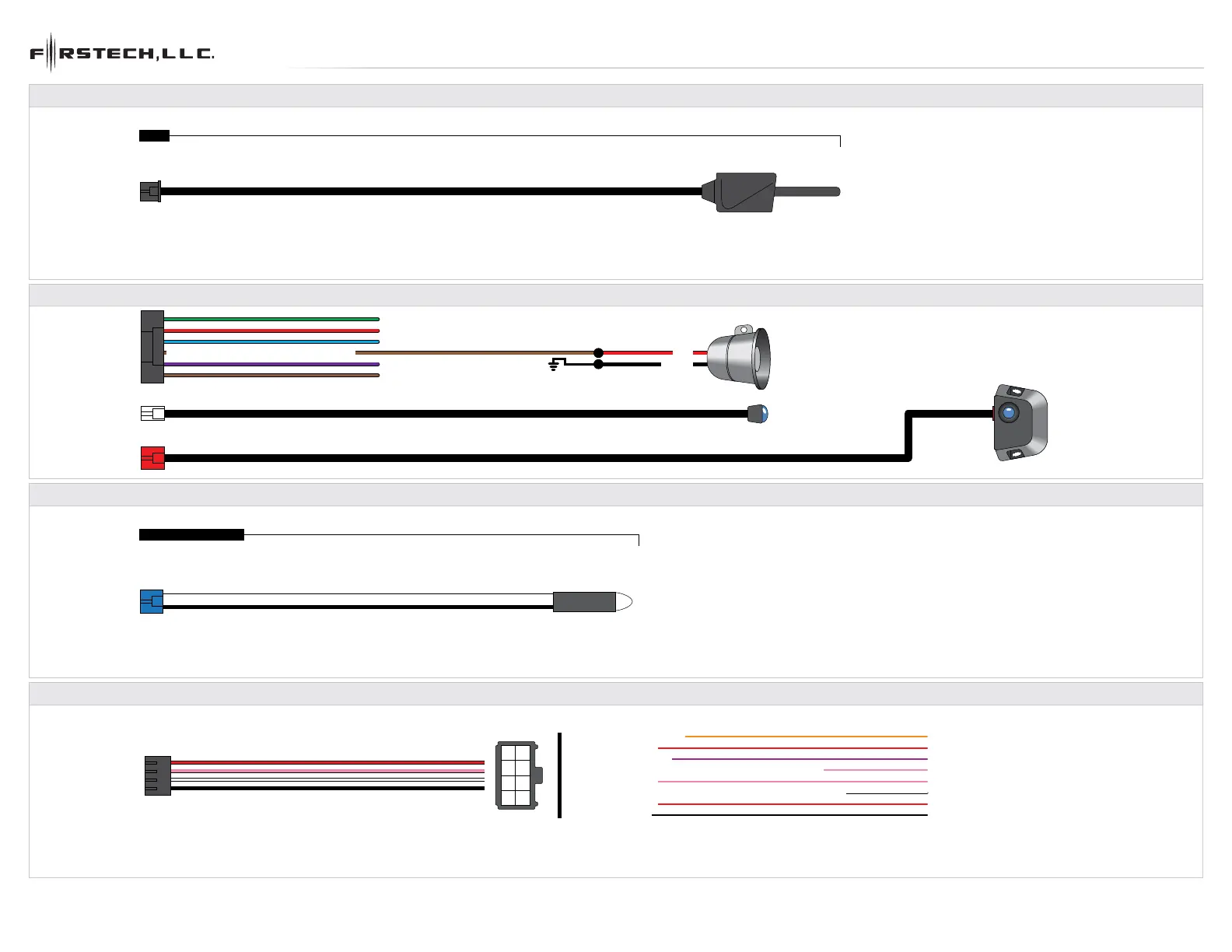

COMPATIBLE ACCESSORIES - 2 OF 2
RF KIT
RF KIT (accessories sold separately)
ANTENNA
MODULE
RF PORT
TEMPERATURE SENSOR
TEMPERATURE SENSOR (accessories sold separately)
MODULE
2 PIN BLUE
4
2
8
1
3
5
7
6
M1
MODULE
M1
ANALOG HARNESS FT-HRN-DC3-PWR (sold separately)
01 ORANGE - ACCESSORY (+)01 ORANGE - ACCESSORY (+)
02 RED - POWER (30A)
02 RED - POWER (30A)
03 PURPLE - STARTER (+)
03 PURPLE - STARTER (+)
04 PINK/WHITE - PROG. RELAY #4 - IGNITION 2 (+) (DEFAULT)
04 PINK/WHITE - PROG. RELAY #4 - IGNITION 2 (+) (DEFAULT)
05 PINK - IGNITION (+)
05 PINK - IGNITION (+)
07 RED - POWER (30A)
07 RED - POWER (30A)
08 BLACK - GROUND
08 BLACK - GROUND
06 WHITE - PROG. RELAY #5 (10A) - PARKING LIGHTS (+) (DEFAULT)
06 WHITE - PROG. RELAY #5 (10A) - PARKING LIGHTS (+) (DEFAULT)
07 BROWN•BLACK DOT - SIREN (+) OUTPUT RED
BLACK
SIREN
ALARM LED
FT-DAS
MODULE
12 PIN BLACK
MODULE
2 PIN WHITE
MODULE
4 PIN RED
ALARM KIT (accessories sold separately)
