ADT Video Doorbell
Quick Installation Guide
13
DBC835 Wireless Doorbell Camera Installation
4 Hardware Installation
This section provides details for mounting the DBC835 Doorbell Camera.
Installing Hardware
Note: Ensure the camera is configured and enrolled in ADT Pulse before
permanently mounting.
1. Turn off the breaker circuit before disconnecting legacy doorbell button.

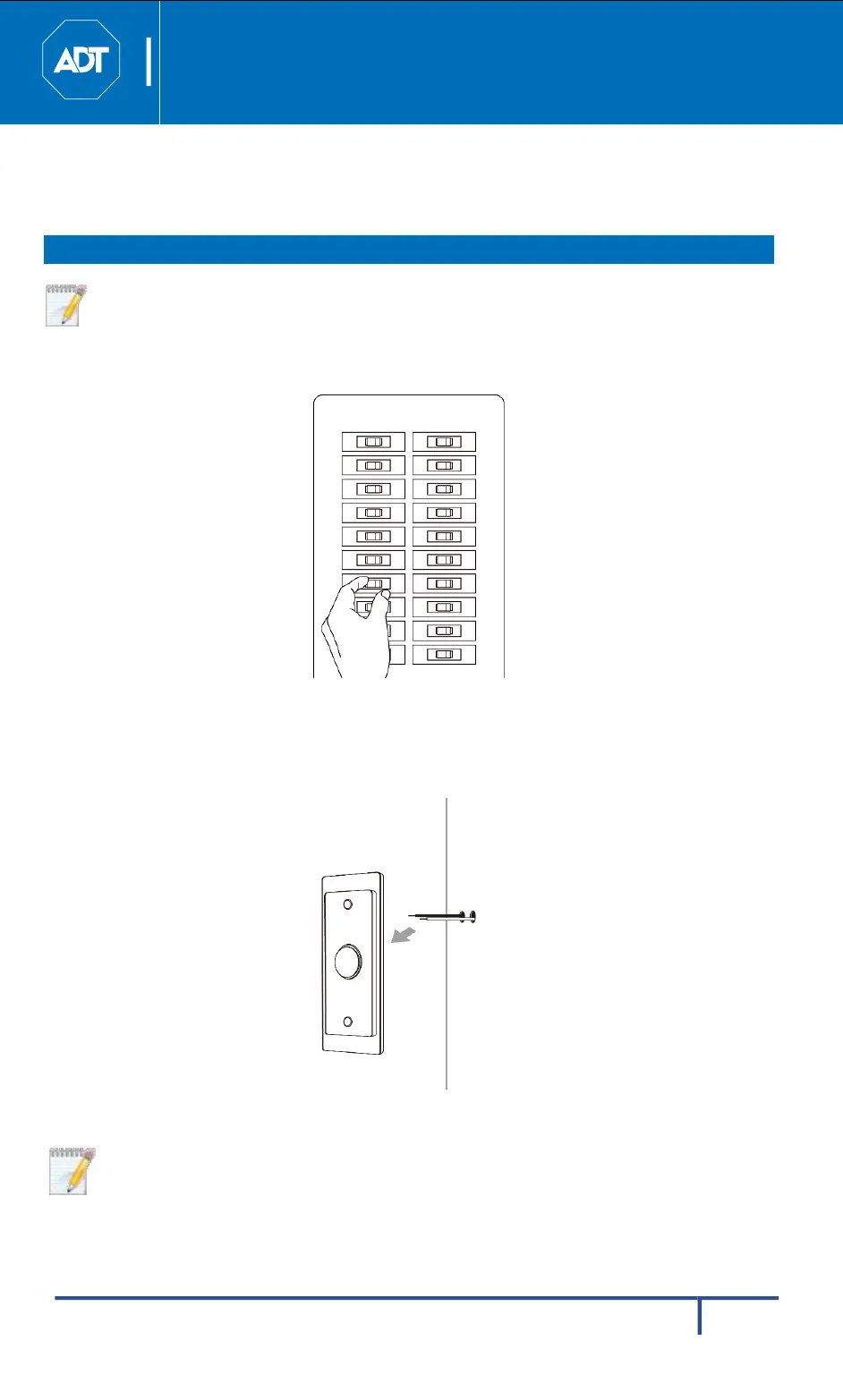

Figure 4-1 Breaker Circuit
2. Unscrew the legacy doorbell to locate two power wires. (The recommended
installation height is between 47 -60 inches.)
Figure 4-2 Mounting Location
Note: Check the voltage at the doorbell to ensure voltage is between 9 ~ 24
VAC. If the voltage is DC, then the DC835 does not support this voltage
type.
