ADT-TP3340DJ Three-axis Dispenser
- 25 -
First gun
Second gun Third gun Fourth gun Fifth gun Sixth gun Seventh gun Eighth gun Replace gun 1
Replace gun 2
Common out
p
ut end
External 12-24V DC
Replace gun 3 Replace gun 4 Replace gun 5 Replace gun 6 Replace gun 7 Replace gun 8
Freewheelin
g
diode
25-core si
g
nal out
p
ut board
If the output point is inductive load, it is necessary to install freewheeling diode
Customer General Item No.
Item name TP3340 dispenser, welder, sprayer

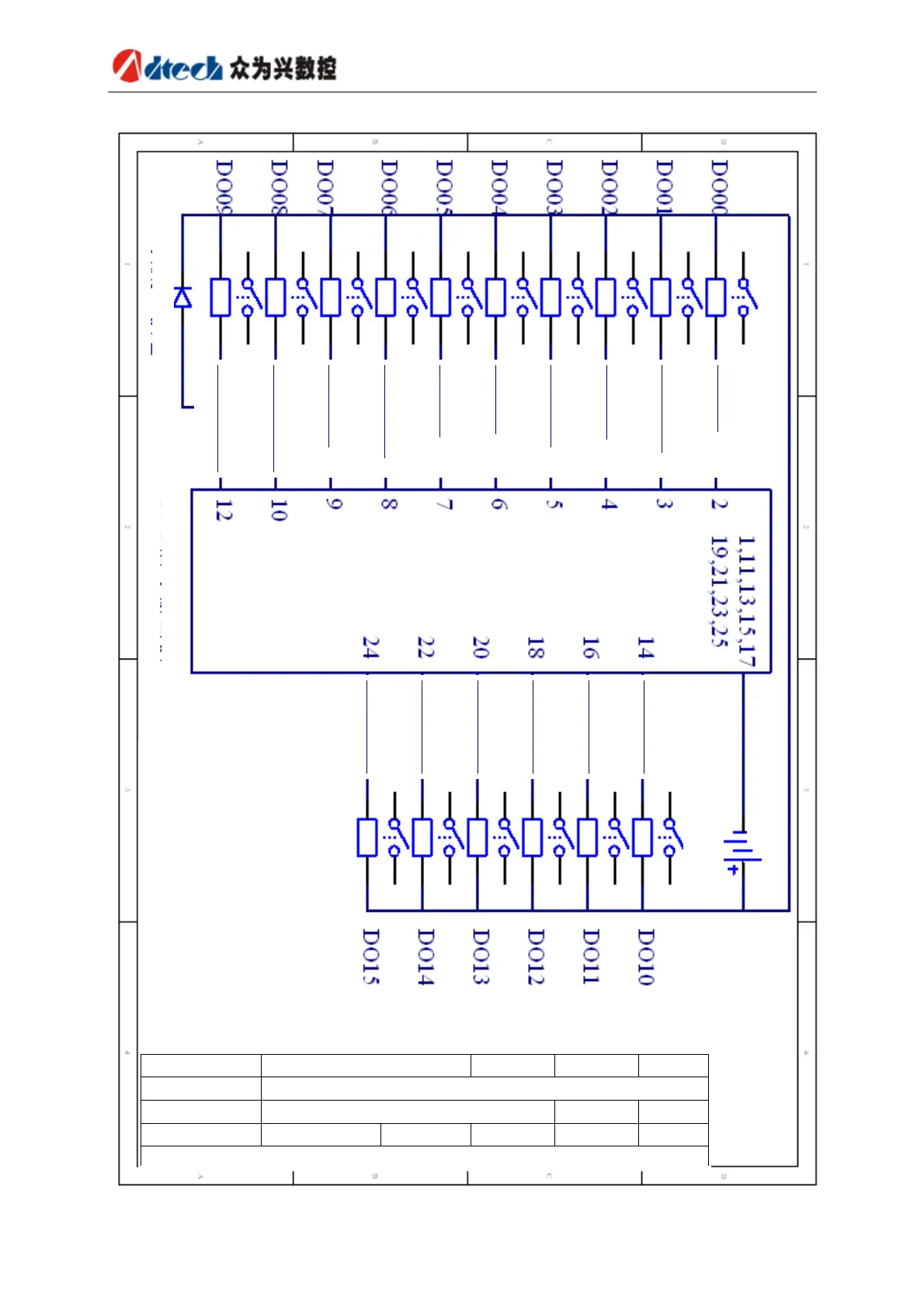

Graph name 25-core output board wiring diagram Page 2/3
Drawn by Tang Gongyi Date 08/6/21 Version B
Adtech
(
Shenzhen
)
CNC Technolo
gy
Co.
,
Ltd.
