ADT-TP3340DJ Three-axis Dispenser
- 26 -
Gun feeding in-place Gun retreating in-place Quick start file 1 Quick start file 2 Quick start file 3 Quick start file 4 Quick start file 5 Quick start file 6
Common input end
External 12-24V DC power supply
Manual X positive
Manual X negative
Manual Y positive
Manual Y negative
Manual Z positive
Manual Z negative
Customer General Item No.
Item name TP3340 dispenser, welder, sprayer

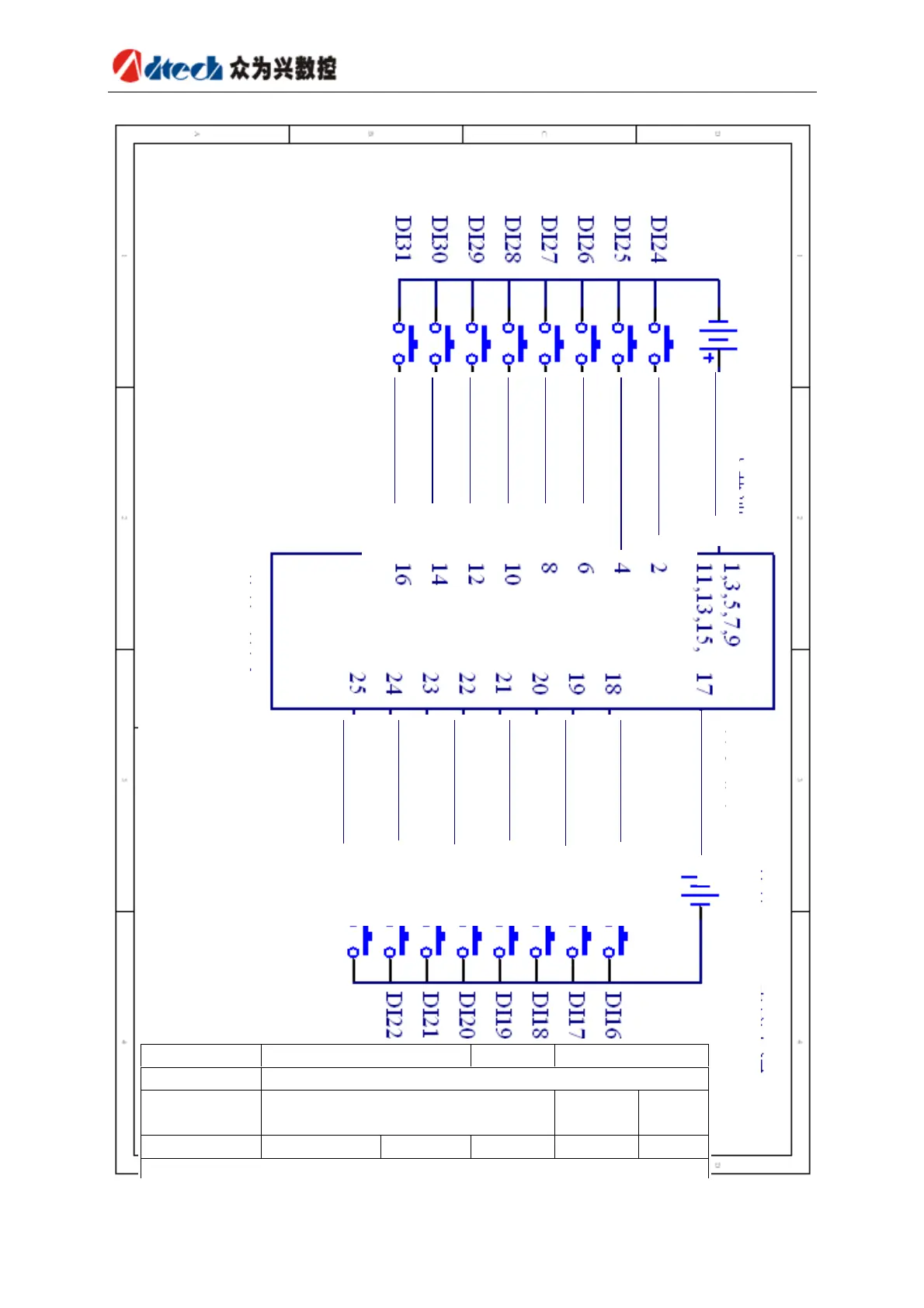

Graph name 25-core extension input board wiring
diagram
Page 3/3
Drawn by Tang Gongyi Date 09/9/29 Version C
Adtech
(
Shenzhen
)
CNC Technolo
gy
Co.
,
Ltd.
25-core extension input
Common input end
External 12-24V DC power supply
