AdvancedFrame™ Sport Inatable Kayak Owner’s Manual
7
3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION
The AdvancedFrame™ Sport Kayak has a rigid frame in the bow and stern that enhances its
performance.
3.1 Assembly

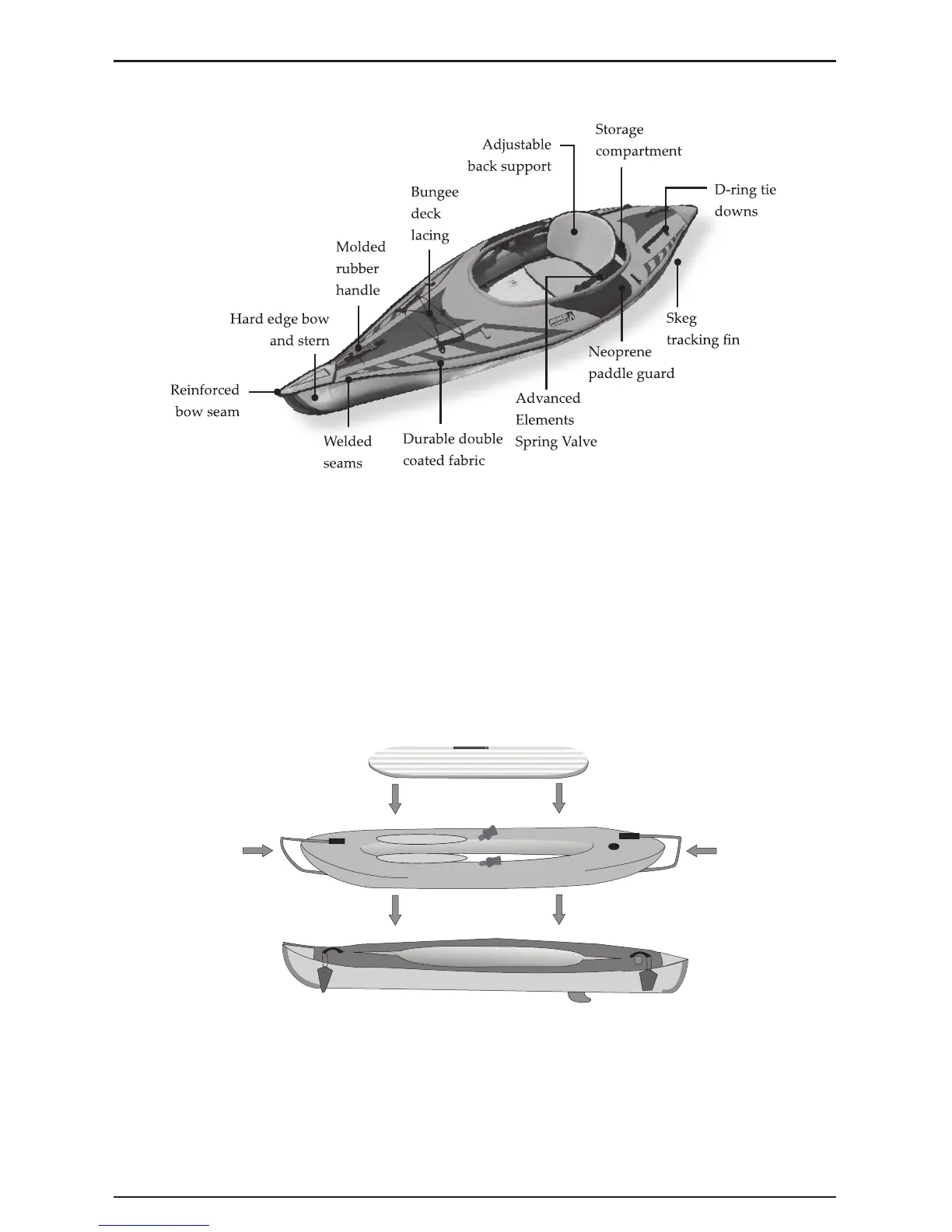

The illustration below shows the general assembly of the kayak. Your kayak comes from the
factory pre-assembled. The only assembly you should need to do is aach the adjustable seat.
1. Your AdvancedFrame™ Sport kayak comes from the factory pre-assembled however should
you take it apart you will need to insert the aluminum Bow rib and the Stern Rib into the
webbing slots on the cover of the AdvancedFrame™ Sport tube (while deated).
2. Place the Advanced Frame Sport (with ribs installed), into the outer skin making sure the ribs
are placed all the way into each end of the kayak. Once placed in the outer skin, and the ribs
INFLATABLE FLOOR
ADVANCEDFRAME
OUTER COVER
BOW RIB
STERN RIB
Step 1
Step 2
Step 3
Step 1
