AdvancedFrame Expedition™ Inatable Kayak Owner’s Manual
7
3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION
The AdvancedFrame Expedition™ Kayak has a rigid frame in the bow and stern that enhances its
performance.
3.1 Assembly

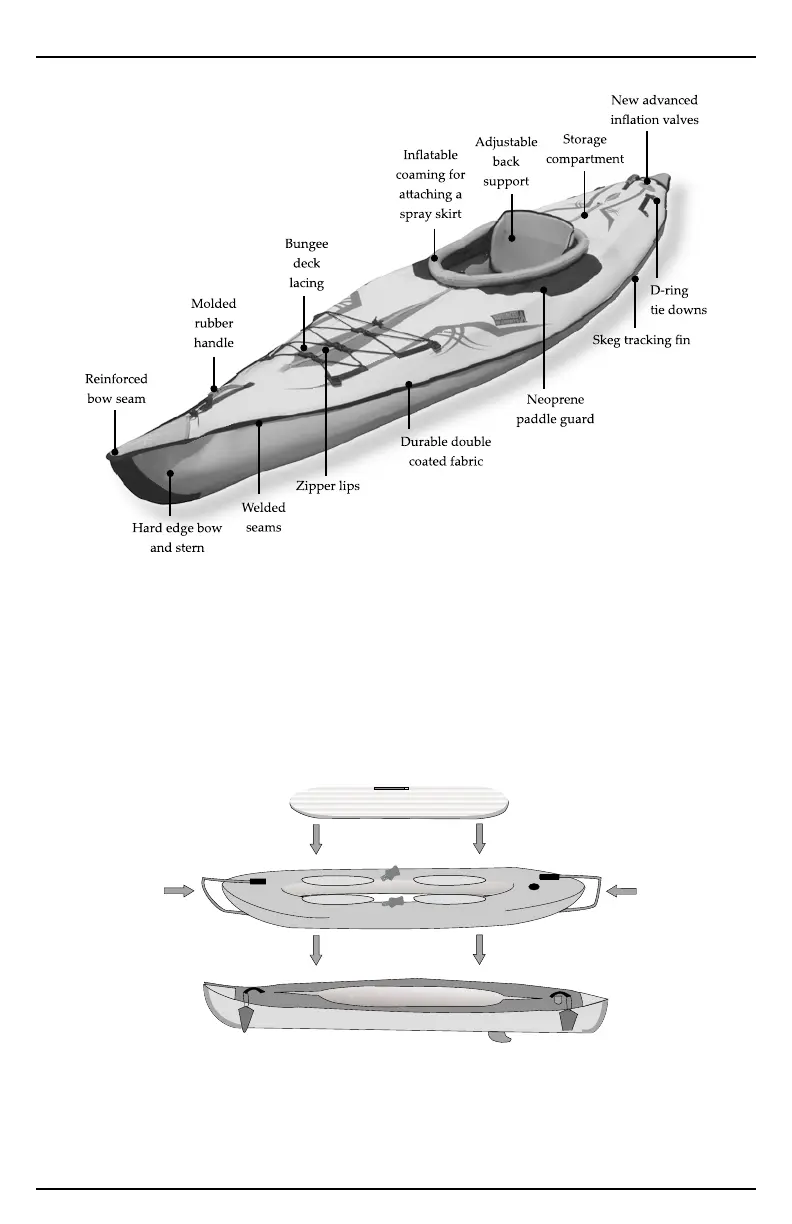

The illustration below shows the general assembly of the kayak. Your kayak comes from the
factory pre-assembled. The only assembly you should need to do is aach the adjustable seat.
INFLATABLE FLOOR
ADVANCEDFRAME
OUTER COVER
BOW RIB
STERN RIB
Step 1
Step 2
Step 3
Step 1
1. Your AdvancedFrame Expedition™ kayak comes from the factory pre-assembled however
should you take it apart you will need to insert the aluminum Bow Rib and the Stern Rib into
the webbing slots on the cover of the AdvancedFrame™ tube (while deated).
